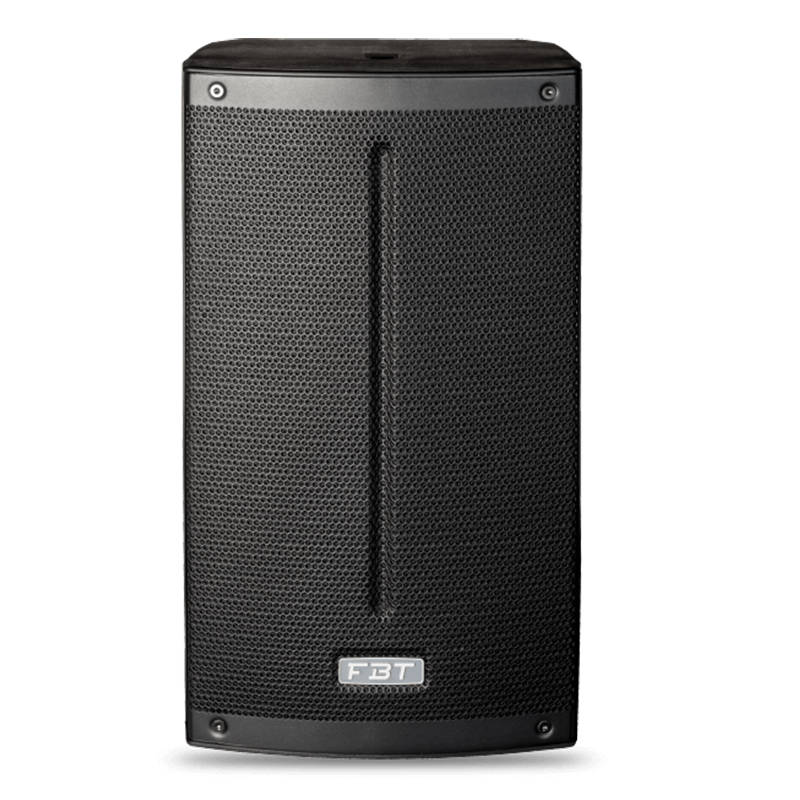

FBT – X-LITE112A 12″ ACTIVE SPEAKER 1500W PEAK

The FBT XLITE 112A is two way design incorporating a 12" low frequency woofer and 1" HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 50Hz — 20kHz the FBT XLITE 112A speaker provide high fidelity sound for both speech and music applications with a maximum SPL of 129dB.

The bi-amplified FBT XLITE 112A active speaker feature a 1200W low frequency amp and a 300W high frequency amp.

The control panel features a three-channel mixer with two micro-line inputs, a stereo input and a dedicated channel for bluetooth 5.0, two XLR inputs, stereo input, XLR output with ch1 or mix link selector, HP filter, two mic-line selectors, DSP preset selector, bluetooth 5.0 with pairing led. 4 x M10 rigging points built-in into the cabinet along with the optional mounting brackets allow the FBT XLITE 112A speaker to be surface mounted on walls or ceilings.

A standard 1.38" speaker stand socket allows the FBT XLITE 112A to be mounted on speaker stand.

SPECIFICATIONS:

• Configuration: 2 Way
• Frequency response: 50Hz - 20KHz
• Low frequency woofer: 12" / 2.5" VC
• High frequency driver: 1" - 1.4" VC
• Maximum SPL cont/peak: 124 / 129
• Dispersion: 90 x 60
• Input impedance: 22
• Input connector: XLR IN/OUT, Jack ST
• Net Dimension (WxHxD): 356 x 619 x 357
• Net Weight: 16.3kg
• Transport Dimension (WxHxD): 440 x 700 x 445
• Transport Weight: 18.9kg
• Built in amplifier: 1200 / 300 LF/HF

FEATURES:

• 2-way bi-amplified system in bass reflex
• Polypropylene moulded enclosure
• Woofer custom 12" (LF) / 2,5" voice coil
• 1" throat / 1,4" voice coil HF compression driver
• 1200/300W built-in amplifier (LF/HF)
• Bluetooth 5.0
• 3-channels mixer
• 4 DSP presets
• 30° / 45° monitor taper
• Universal switching mode power supply 100-240 VAC
• M10 rigging points
• 4 DSP presets
