Specification:
Brand: JHEMCU

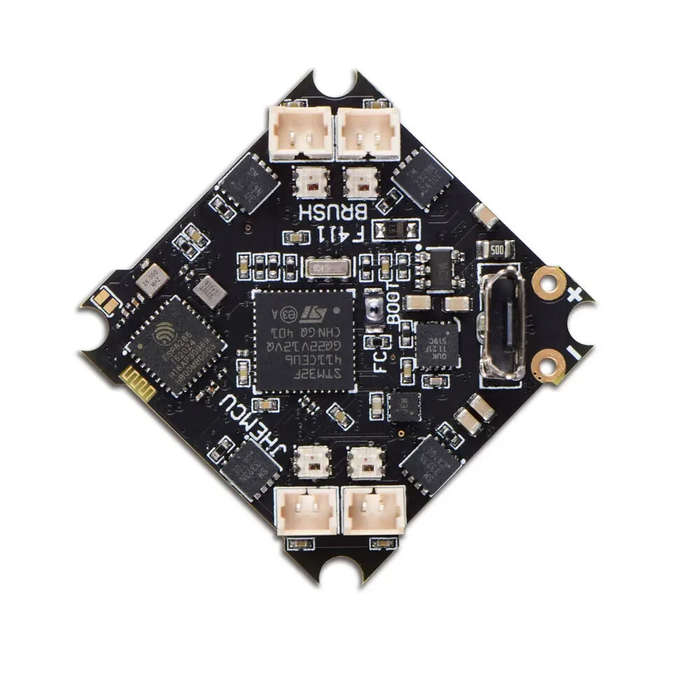

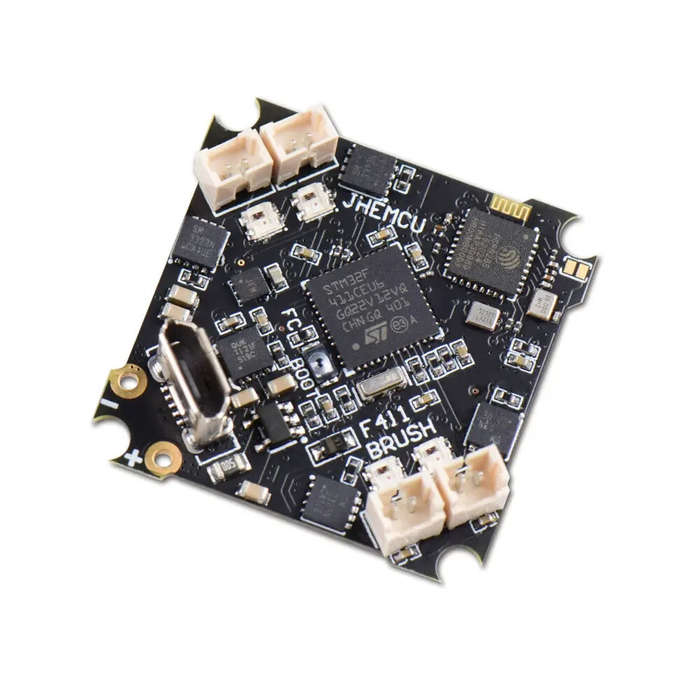

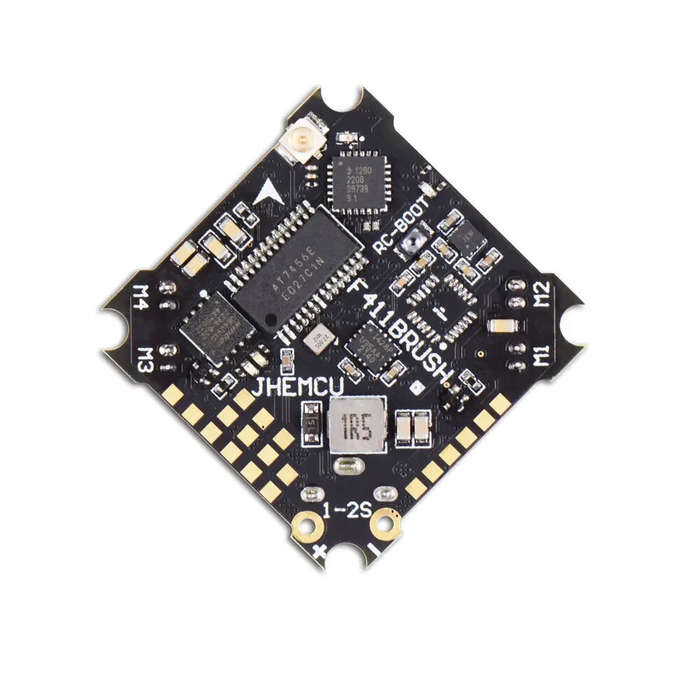

Item Name: JHEF411 BRUSH Flight Controller
MCU: STM32F411CEU6
Power Supply: 1-2S (3V-8.7V)
Signal Protocol: BRUSH
Sensor: ICM-42688-P
OSD: AT7456E
Black Box: 8MB
Barometer: None
USB: Micro USB
UART: UART1, UART2
BEC: 5V/1.5A ± 0.1V BEC
Supported Receiver Protocols: ELRS(CRSF), TBS(CRSF), SBUS, IBUS
Built-in ELRS Receiver Connected to UART2
Support: WS2812 Programmable LED (four boards)
Compatible: Buzzer
Built-in Voltage Sensor
Built-in Current Sensor
Flight Controller Firmware: Betaflight JHEF411.HEX
Receiver Frequency Band: 2.4 GHz
Receiver Protocol: CRSF
Receiver Type: Standalone ELRS
Receiver Firmware: Betafpv.rx_2400.lite
Receiver Supports Wi-Fi Firmware Upgrade
Motor Drive: 15A
Motor Type: Brush
Anti-torque: Not Supported
Mounting Hole Spacing: 25.5 mm x 25.5 mm x 3 mm
Dimensions: 29 mm x 29 m
