Description:
Introducing the All-New Borg Series — Power Meets Precision!

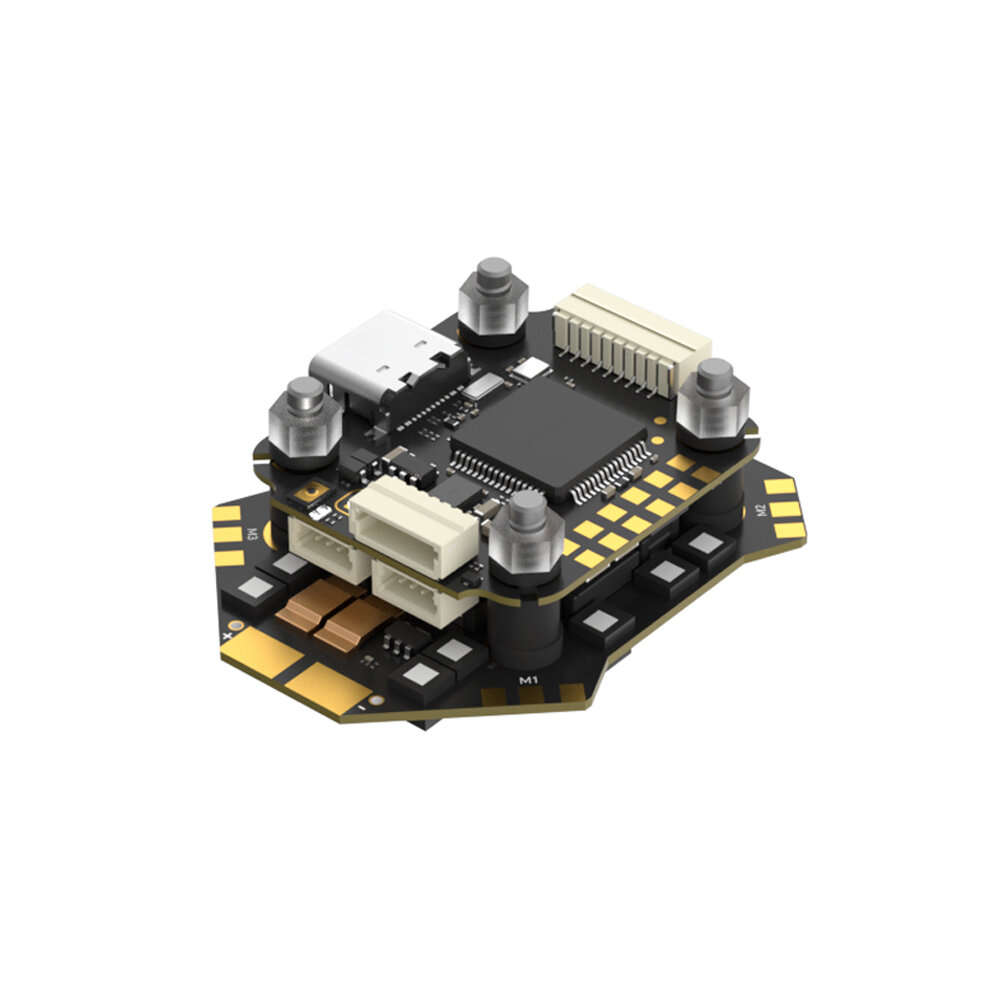

The Borg F7 Mini Flight Controller is specifically designed for racing fpv, providing unmatched performance. Elevate your racing experience with the cutting-edge technology of the Borg Series!
FC Feature:
- Supports 4S to 8S battery inputs, offering versatility for various racing setups.
- Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
- FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.
Specification:
Brand: iFlight
Model: Borg
Item Name: F7 60A Mini Stack
| Item | Specification |
| Borg F7 Mini FC | Input Voltage: 4-8S; Support LIHV battery MCU: STM32F722RET6 Gyro: ICM42688 Barometer: SPA06-003 OSD Chip: AT7456ELGA Flash: 32MB (Blackbox flash) UARTS: 6 Motor outputs: 4 I2C serial: Not supported VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero LED controller: Yes Beeper pad: Yes Betaflight Firmware target: IFLIGHT_BLITZ_F722 INAV Firmware target: IFLIGHT_BLITZ_F722 Mount pattern: 20*204 Dimensions: 27*30.6mm±1 Weight: 6.8g±1 BEC: 5V 2.5A, 12V 2A (12V with VTX switch) |

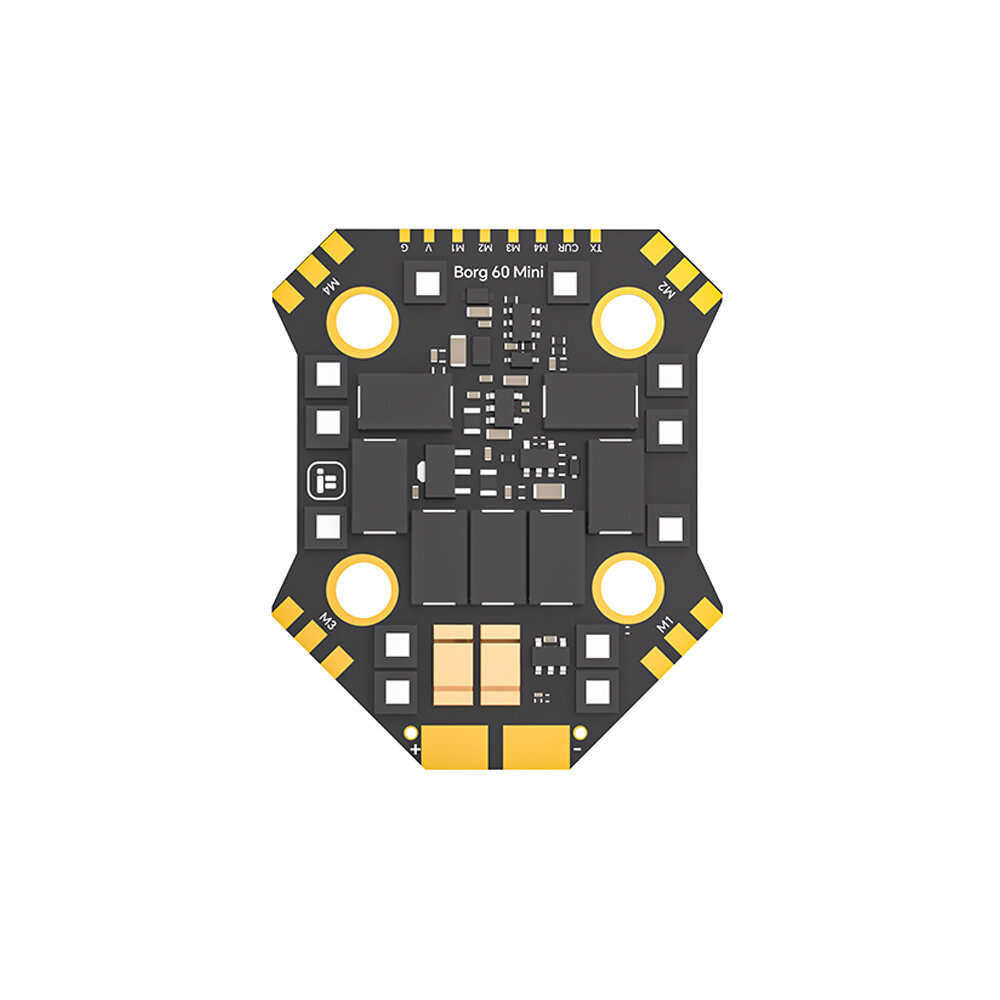

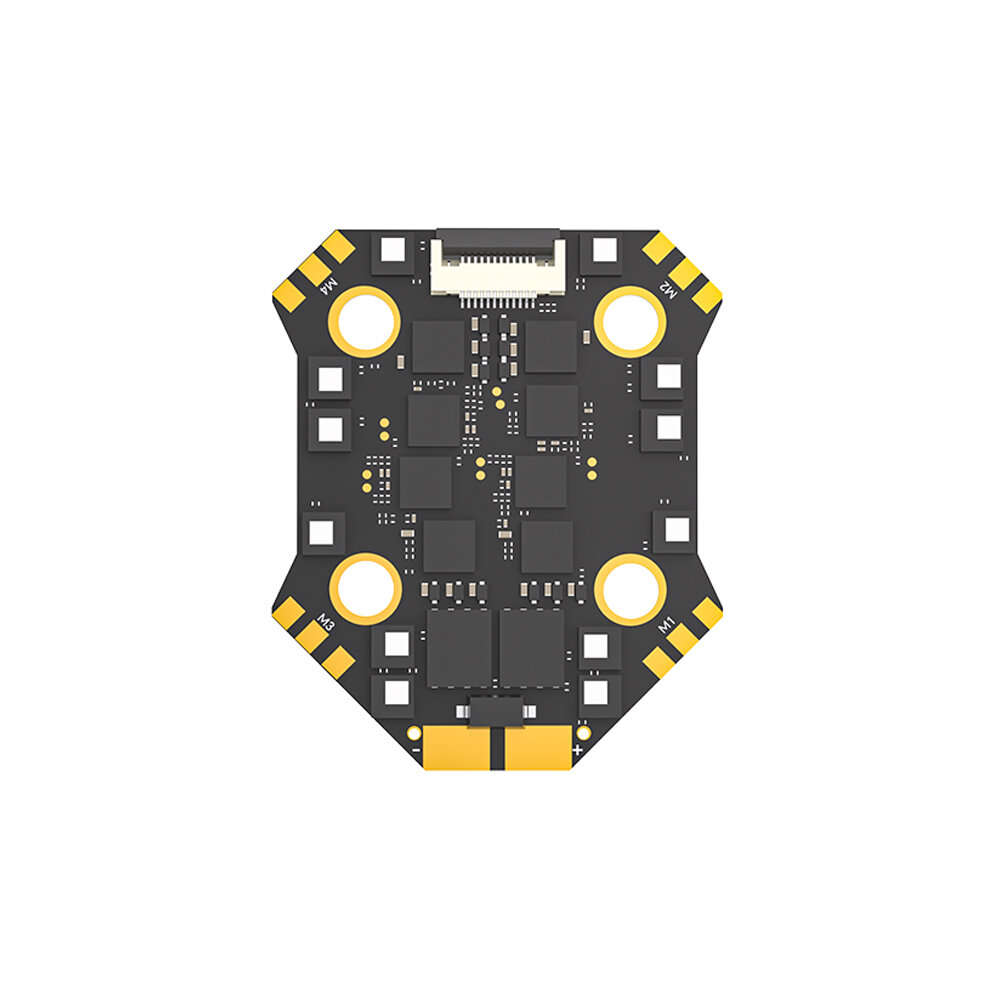

| Borg 60A Mini ESC | Input Voltage: 2-6S; Support LIHV battery Max. Continuous Current: 60A Max. Burst Current: 65A (10s) MCU: STM32G071N Driver: FD6288 Firmware: BL32 (32bit ESC) Target: IFLIGHT_BLITZ_G3 32.9 Current Sensor: Yes BEC: N/A Telemetry: Supported Bidirectional DSHOT: Supported Dimensions: 42*35mm±1 Mounting Holes: 20 x20 mm/4mm Weight: 9.8g±1 Protocol: Supports DShot150/300/600MultiShotOneShot etc. |
Package Included:
| Item | Included |
| Borg F7 Mini Stack |
