Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for ESC Telemet
UART 4 for Built-in ELRS receiver/SBUS input
UART 5 for GPS or other sensors that require a serial port
Description:

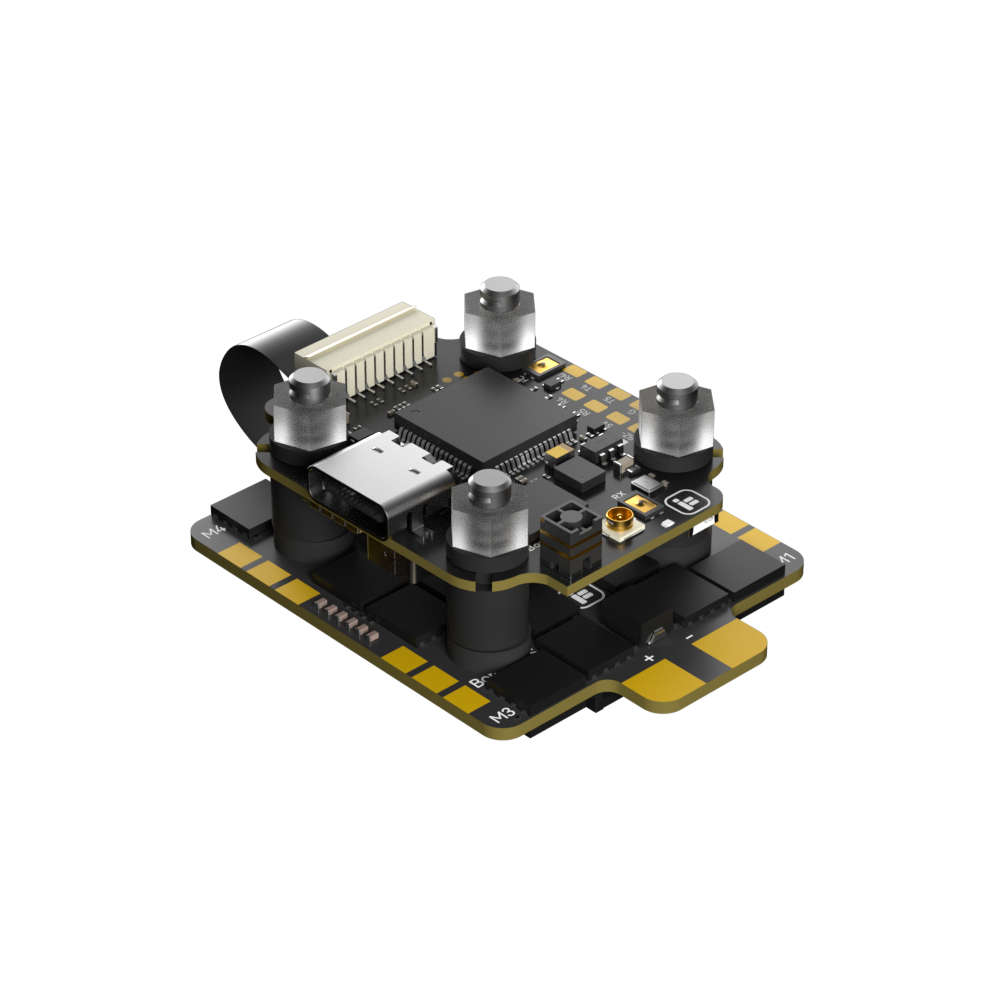

Introducing the All-New Borg Series — Power Meets Precision!
The Borg 5S RX FC Flight Controller is specifically designed for racing fpv, providing unmatched performance. This innovative controller features a built-in ELRS 2.4GHz receiver and an integrated antenna, ensuring a reliable connection and enhanced control during your flights.
Additionally, the Borg 5S RX FC offers the flexibility to support external receivers, allowing you to customize your setup to meet your individual racing needs. Elevate your racing experience with the cutting-edge technology of the Borg Series!

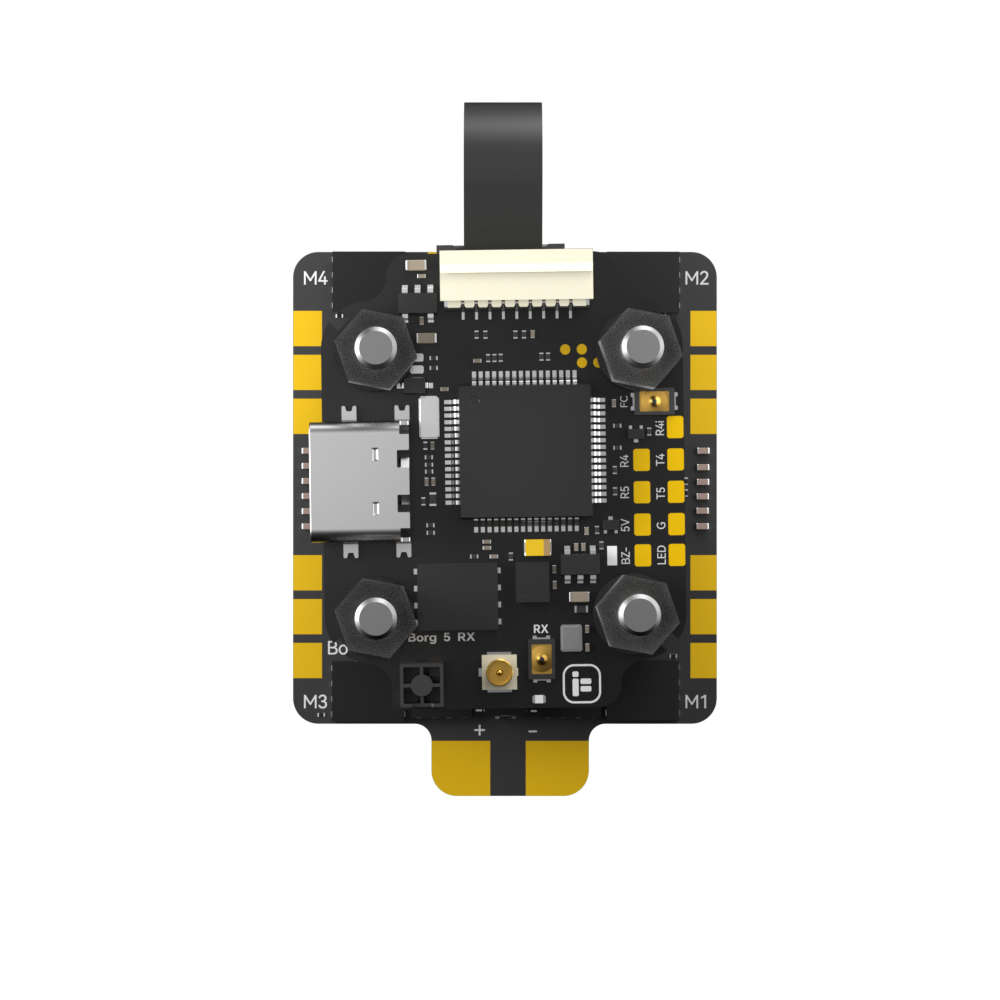

FC Features:
- Built-in ELRS 2.4GHz Receiver, while also being compatible with external antennas for enhanced flexibility.
- Supports 3S to 8S battery inputs, offering versatility for various racing setups.
- Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
- FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.
Specification:
Brand: iFlight
Model: Borg 5S RX Flight Controller/Borg 60RS ESC
| Item | Specification |
| Borg 5S RX Flight Controller | Input voltage: 4-8S; Support LIHV battery MCU: AT32F435RGT7 Gyro: ICM42688 Barometer: N/A OSD Chip: AT7456E Flash: 16MB (Blackbox flash) UARTS: 4 Motor outputs: 4 I2C serial: Not supported VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero LED controller: Yes Beeper pad: Yes Firmware target: IFLIGHT_BLITZ_ATF435(Betaflight) Mount pattern: 20*204 Dimensions: 34*28.5mm±1 Weight: 6.8g±1 BEC: 5V 2.5A, 12V 2A (12V with VTX switch) |

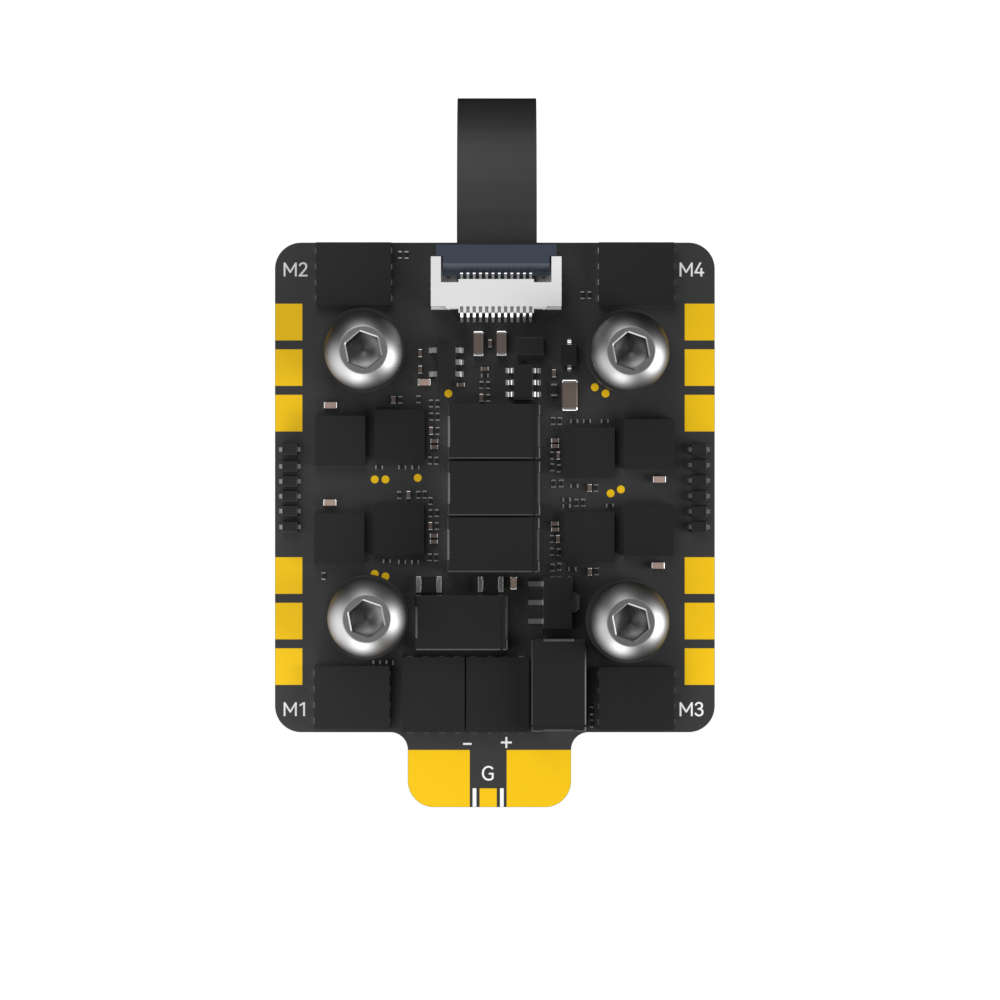

| Borg 60RS ESC | Product Name: Borg 60RS ESC Input Voltage: 4-8S; Support LIHV battery Max. Continuous Current: 60A Max. Burst Current: 65A (10s) MCU: STM32G071N Driver: FD6288 Firmware: BL32 (32bit ESC) Target: IFLIGHT_BLITZ_G3 32.9 Current Sensor: N/A BEC: N/A Telemetry: Supported Bidirectional DSHOT: Supported Dimensions: 45*35mm±1 Mounting Holes: 20 x20 mm/4mm Weight: 9.5g±1 Protocol: Supports DShot150/300/600MultiShotOneShot etc. |
Package included:
| Item | Included |
