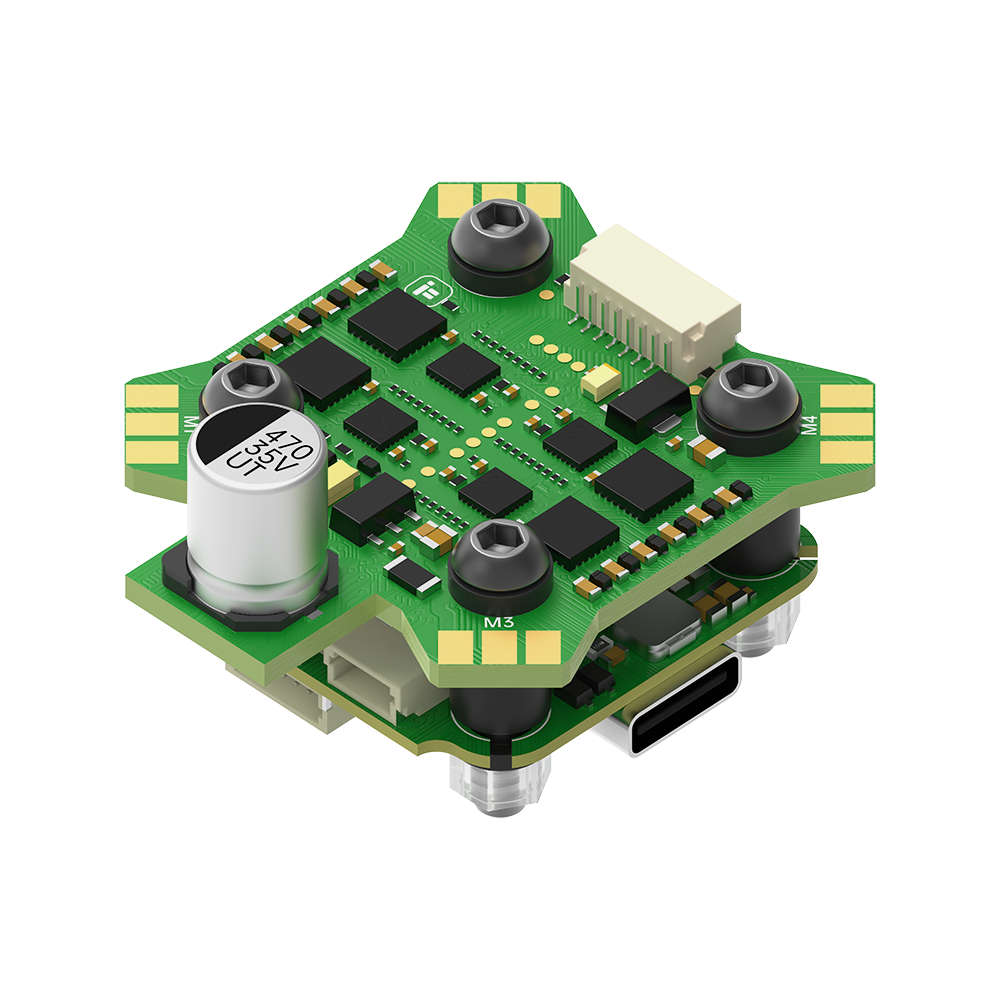

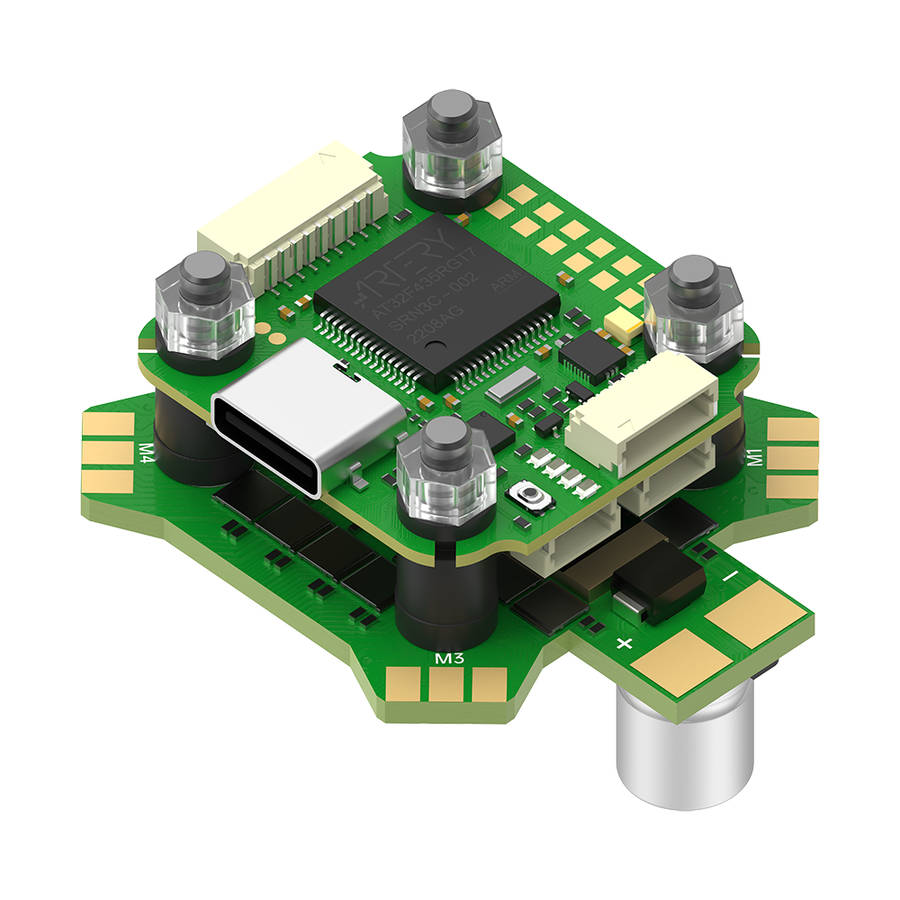

Name: FC&ESC - 20mm*20mm iFlight BLITZ Mini ATF435 Stack Flight Controller OSD with 5V BEC E55S Mini 55A 2
SKU: 2000867-POA10470663
Price: 1932.83 ZAR
Availability: InStock

FC&ESC - 20mm*20mm iFlight BLITZ Mini ATF435 Stack Flight Controller OSD with 5V BEC E55S Mini 55A 2

New

1 available

Indicative market price: R2,963.80

Only 1 left – grab it before it’s gone!

R1,932.83

35% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

There are various locker and counter collection points across South Africa.
View locations

The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

The World OnLine10362

95.68 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

2000867-POA10470663

Bob Shop ID

679089987

Note: Please click here for the wiring diagram.

FC Specifications:

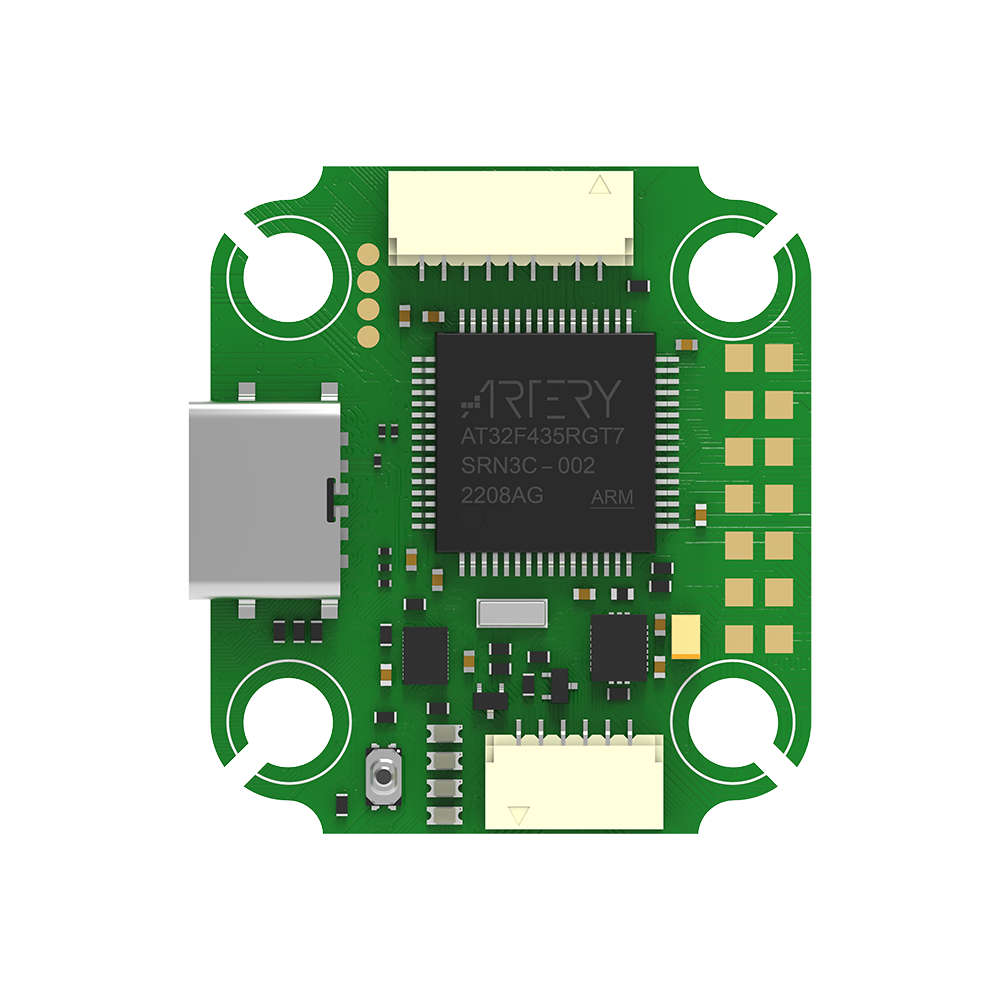

BLITZ Mini ATF435 Flight Controller

MCU: AT32F435RGT7
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFLIGHT_BLITZ_ATF435
Mount pattern: 20*20mm/4
Dimensions: 30.5*27mm
Weight: 5g
BEC: 5V 2.5A

Wiring Suggestion

UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet

BLITZ E55S Mini

Mounting Holes: 20*20mm/4mm
Weight: 11.3g
Supports 2-6S lipo input
MCU: BB21
Constant: 55 Amps
Burst: 65 Amps
Telemetry Output: No
Current sensor: Yes
Current rate: 300
BEC: No
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)

Packing List:

Flight Controller Version	1 x BLITZ Mini ATF435 Flight Controller
Brushless ESC Version	1 x BLITZ Mini E55S 4-IN-1 2-6S ESC
FC & ESC Version	1 x BLITZ Mini ATF435 Flight Controller 1 x BLITZ Mini E55S 4-IN-1 2-6S ESC 1 x Power cables & ESC signal wires
