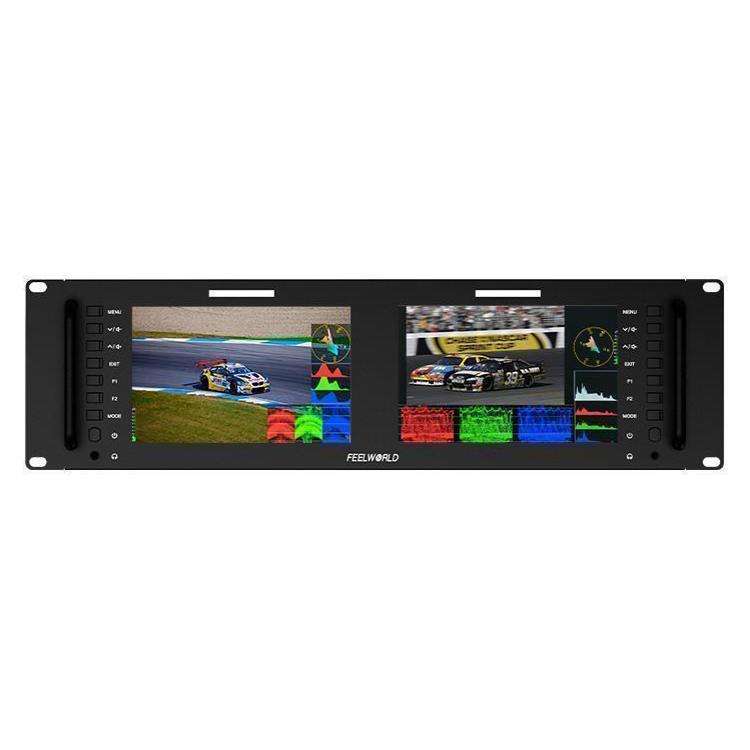

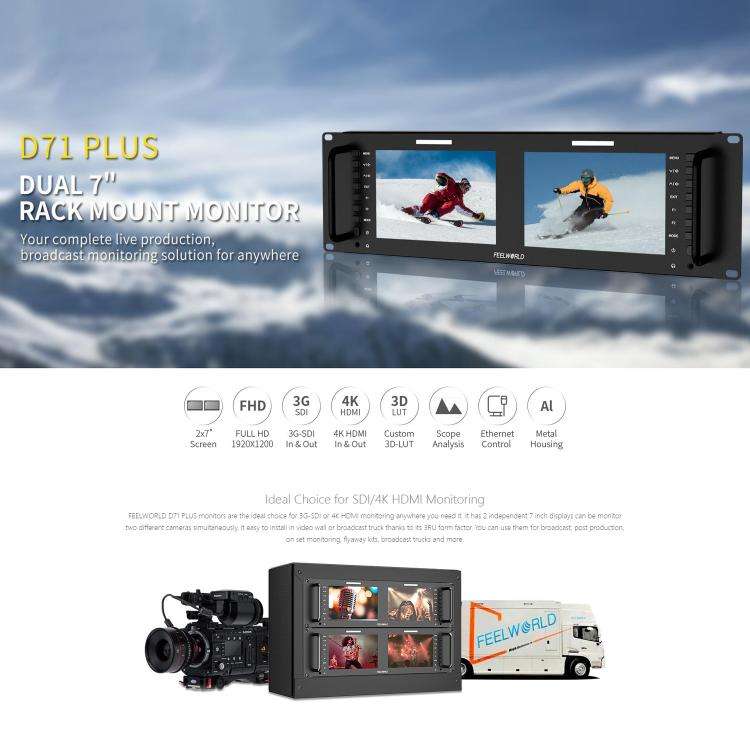

FEELWORLD D71 PLUS Dual 7 inch 3RU Rackmount Monitor 4K HDMI SDI 1920 x 1200 IPS Monitor (UK Plug)

Features
1. 2 x 7 inch 1920 x 1200 full HD IPS screen
2. Intuitive buttons + new menu interface, convenient to operation

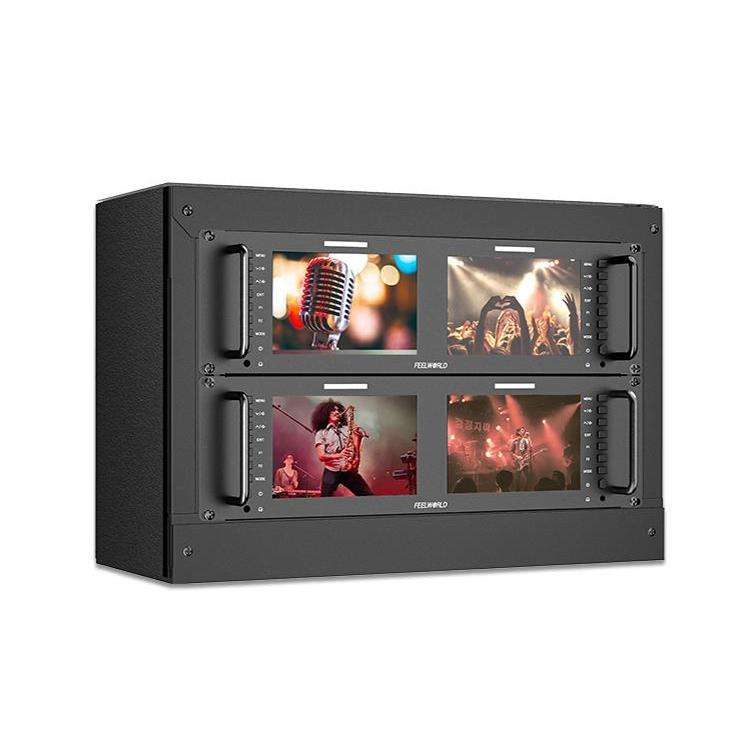

3. 3RU rack mount design, easy to mount on TV wall or broadcast truck

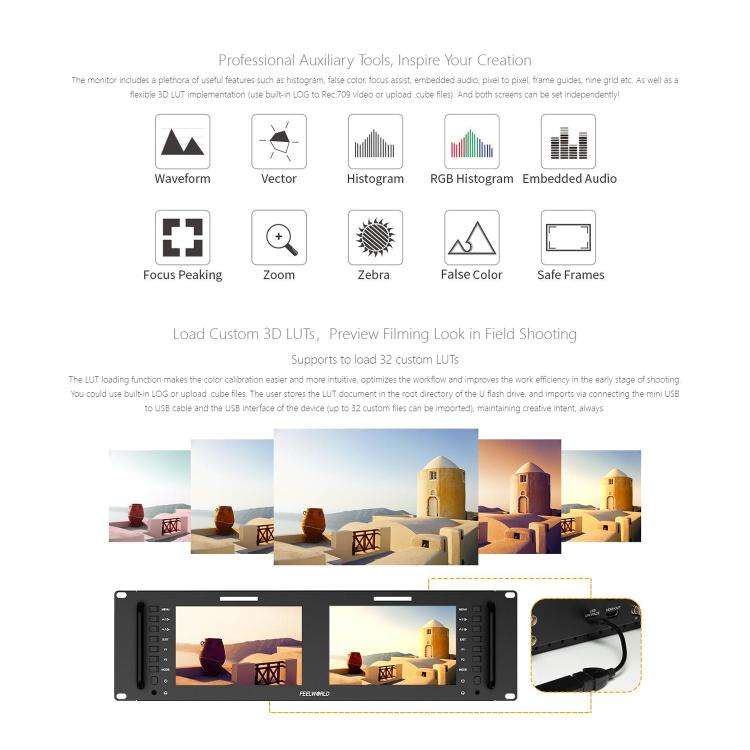

4. Upload custom 3D-LUT, preview film look

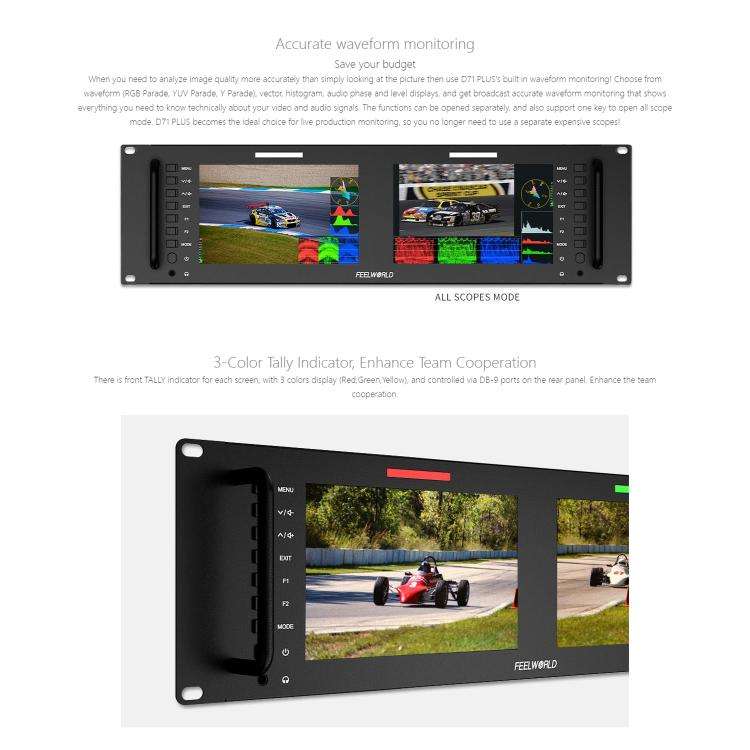

5. With Waveform, Vector scope, RGB Histogram, Focus Assist, Monochrome etc. functions, help you accurately exposure and focus every shot
6. Connect to Ethernet remotely adjust the monitor via software
7. Front panel built-in 3 colors TALLY indicator, enhance shooting cooperation
8. Multiple signal ports (SDI/HDMI/CVBS), meet different needs.
9. Power using included 12-volt supply or use standard 4-pin XLR

Specifications
Display Spec.
1. Model: D71 PLUS

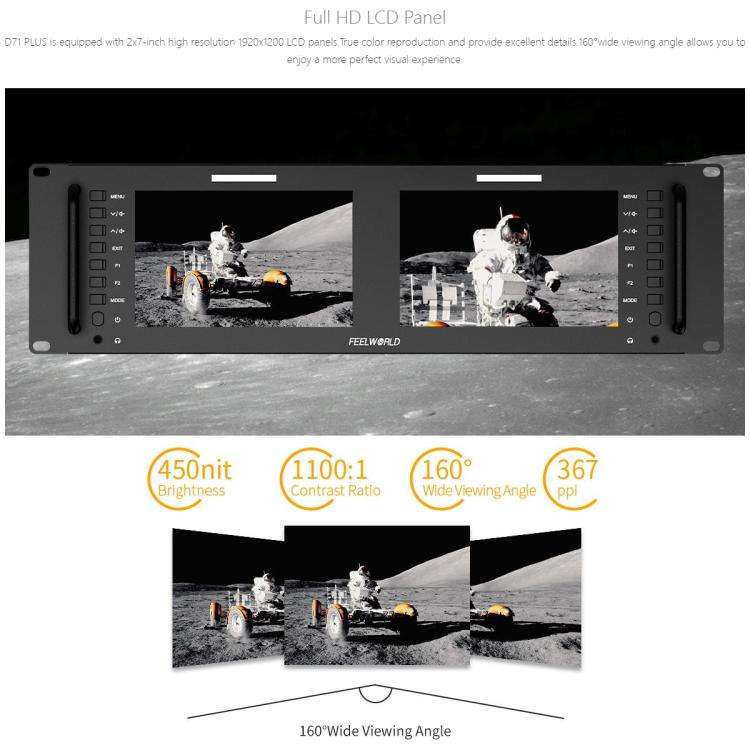

2. Screen Size: 7 inch x 2 IPS
3. Resolution: 1920 x 1200 pixels
4. Pixel Pitch: 0.07875(H) x 0.07875 (W) mm
5. Aspect Ratio: 16:10
6. Brightness: 450cd/m2
7. Contrast Ratio: 1100:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)

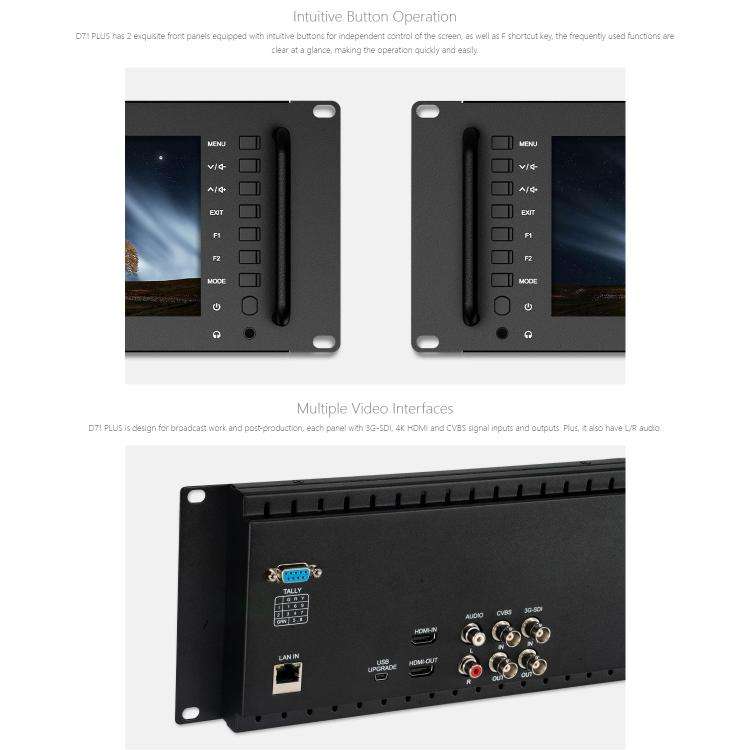

Input (Each LCD):
1. 1 x BNC: 3G-SDI
2. 1 x HDMI: HDMI
3. 1 x BNC: Video
4. 2 x RCA: Audio(L/R)

Output (Each LCD):
1. 1 x BNC: 3G-SDI
2. 1 x HDMI: HDMI
3. 1 x BNC: Video

Audio (Each LCD):
Audio Out: Stereo Headphone x 1

SDI Support Format:
1. 720p(60/59.94/50/30/29/25/24/23.98)
2. 1080i(60/59.94/50)
3. 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format:
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
5. 4K UHD 3840 x 2160p (30/29.97/25/24/23.98 Hz)
6. DCI 4K 4096 x 2160p (24Hz)

CVBS (Video) Support Format:
PAL/NTSC auto recognize

General:
1. Input Voltage: DC 9-24V
2. Power Consumption: Less than or equal to 21W
3. Working Temperature: -10 degree C~60 degree C
4. Storage Temperature: -30 degree C~70 degree C

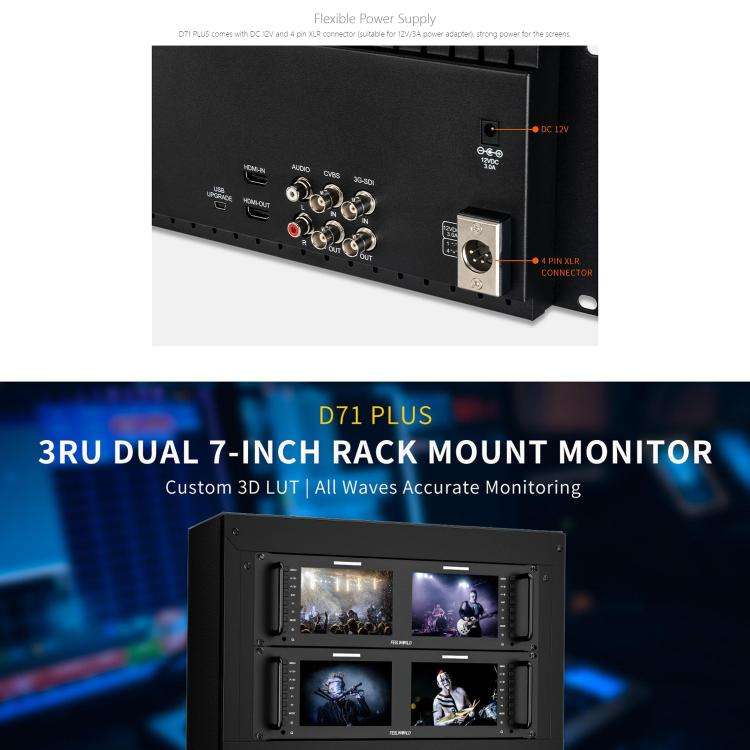

5. Power Connector: DC/ 4-pin XLR
6. Install Way: Rack Mount

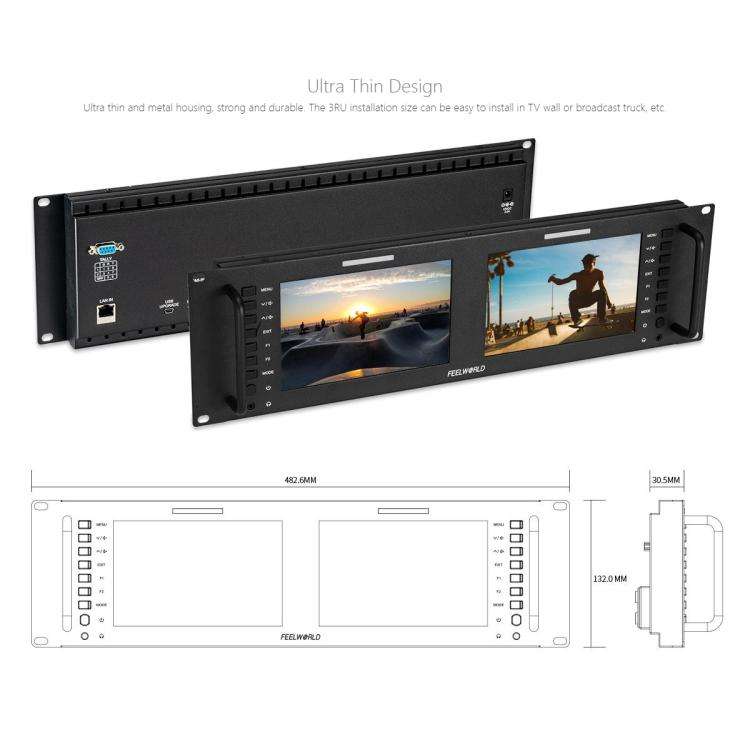

7. Unit Size: 482.6Lx132Hx30.5D(mm)
8. Unit Weight: 1890g

Package List
1. Monitor x 1
2. Tally adapter kit x 1
3. Mini USB to USB cable x 1
4. 3A power adapter x 1
5. Manual x 1
