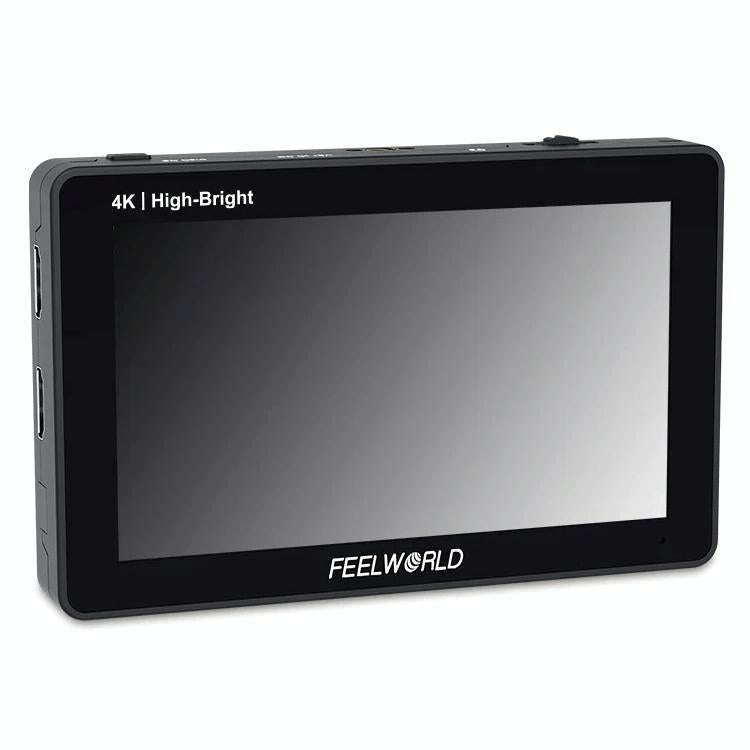

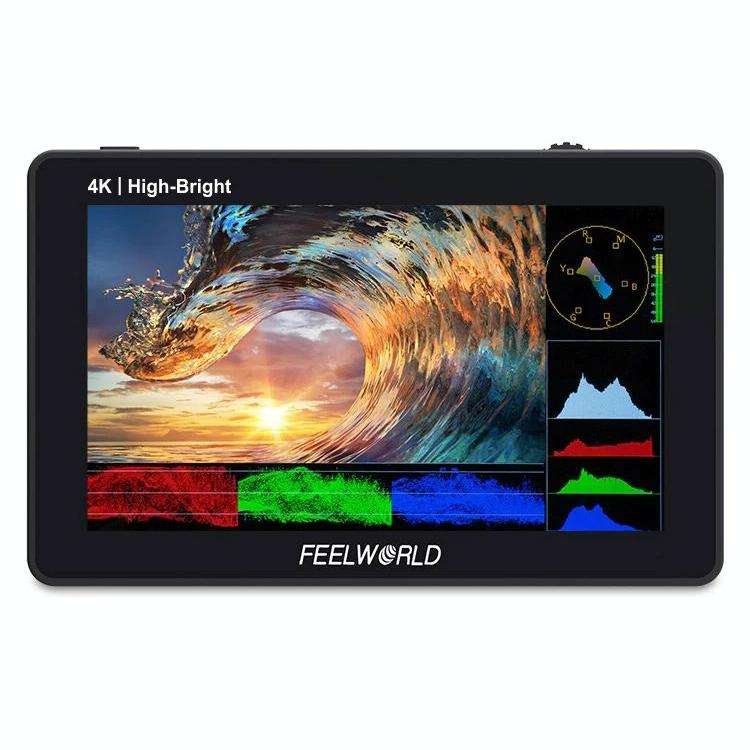

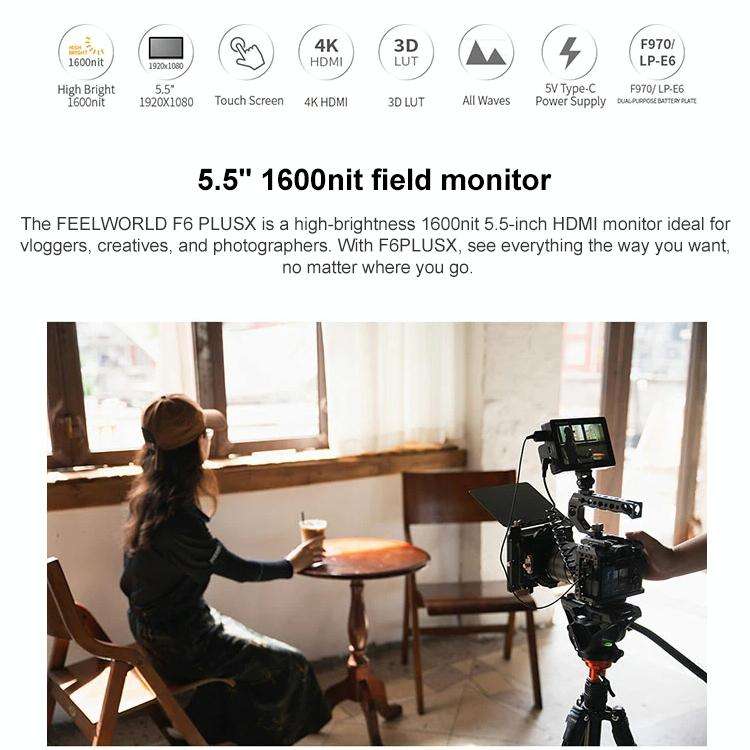

FEELWORLD F6 PLUSX 5.5 inch High Bright 1600nit Touch Screen DSLR Camera Field Monitor IPS FHD192...

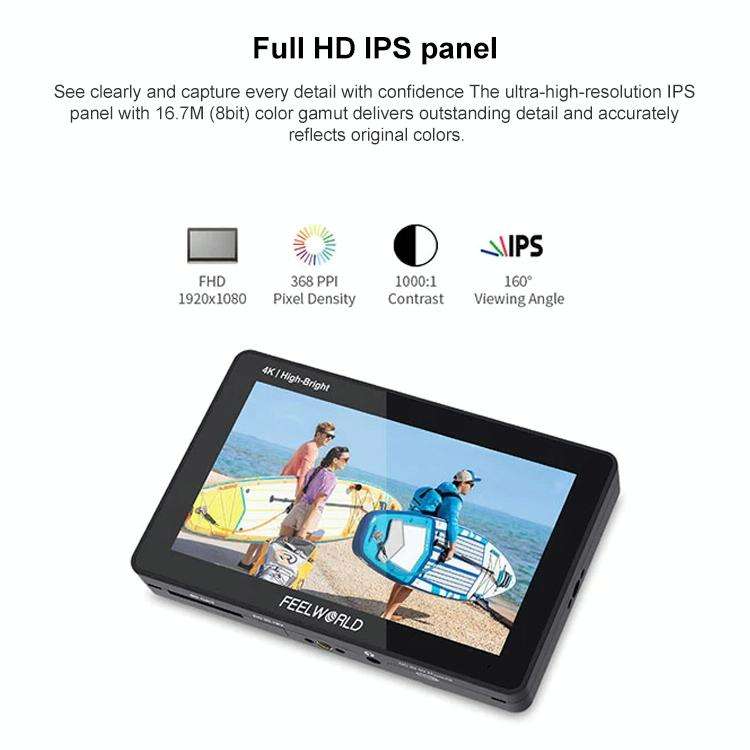

Display Spec.
1. Model: F6 PLUSX
2. Screen Size: 5.5 inch Touch Screen
3. Resolution: 1920x1080 pixels
4. Pixel Pitch: 0.069 (H) x 0.069 (V) mm
5. Aspect Ratio: 16:9

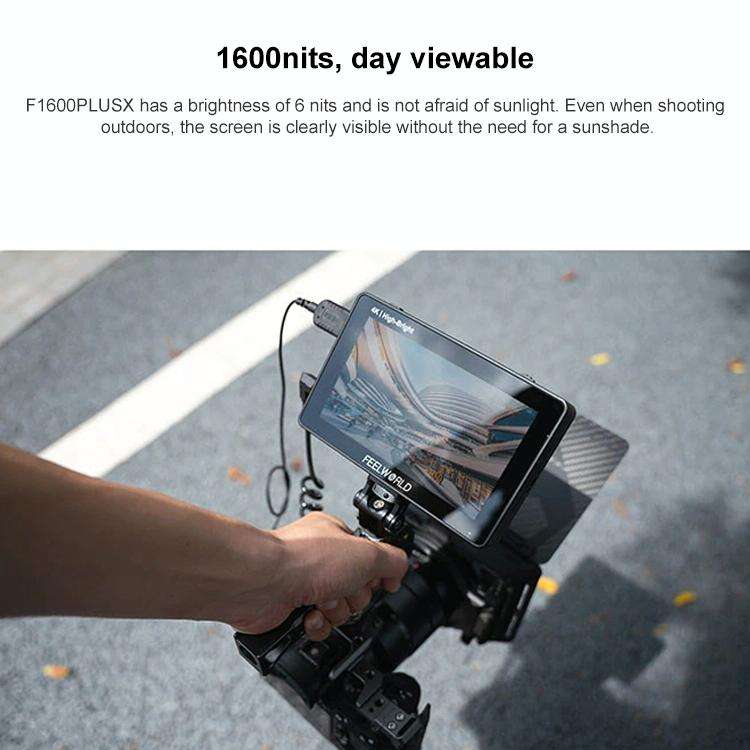

6. Brightness: 1600cd/m
7. Contrast Ratio: 1000:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree / 80 degree (U/D)

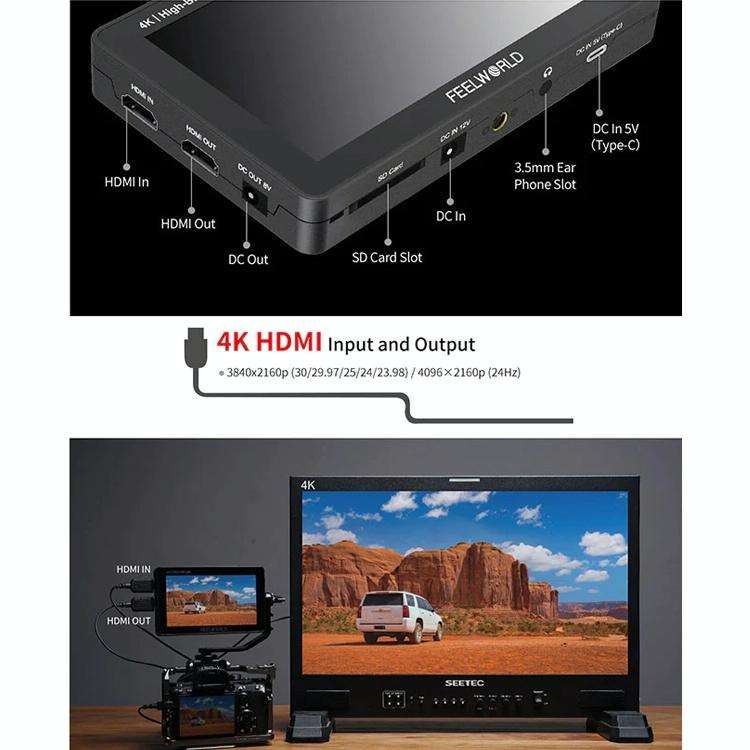

Input
1. 1 x HDMI: HDMI

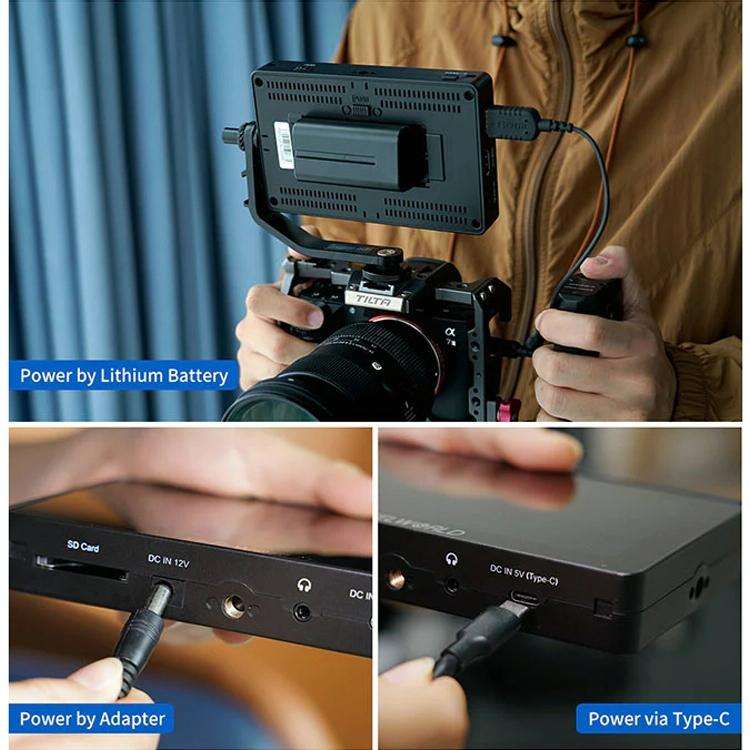

2. 1 x Type C: 5V Type-C (Note: please use 5V/2A or more than 2A Type-C power supply)
3. 1 x SD Card Slot: Use for LUT file import/firmware update

Output
1. 1 X HDMI: HDMI

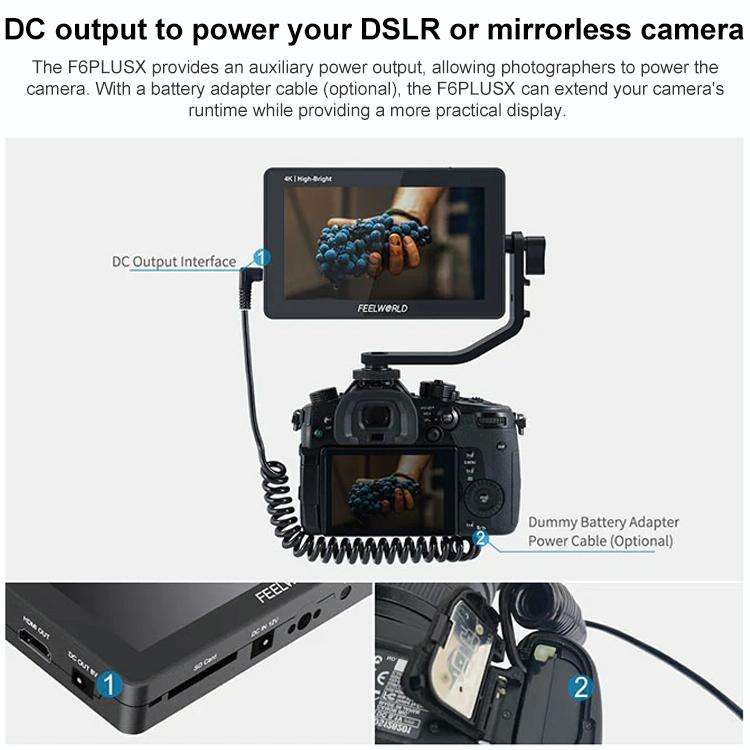

2. 1 X DC Output: DC Output

Audio
- Audio: 3.5mm Stereo Headphone

HDMI Input/ Output Support Format
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
5. 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)

General
1. Input Voltage: DC7 ~ 24V
2. Power Consumption: Greater than 10W
3. Power Connector: DC
4. Working Temperature: -20 degree C~55 degree C
5. Storage Temperature: -30 degree C~6 5degree C

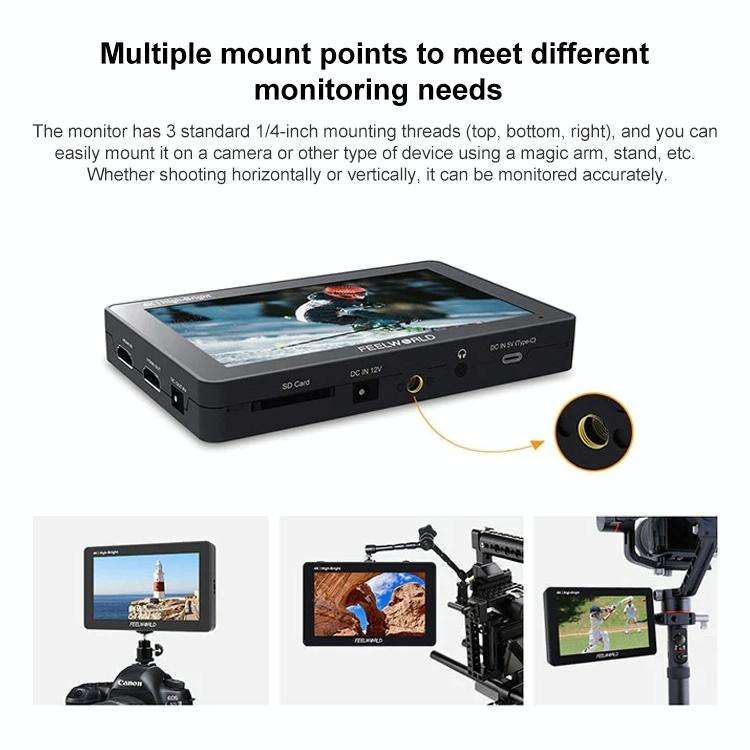

6. Install Way: 1/4 thread points (top, bottom, right)
7. Unit Size: 148Lx93Hx20D (mm)
8. Unit Weight: 235g

Advanced Features
1. Support 3D LUT Log to Rec.709, user 3D LUT Upload

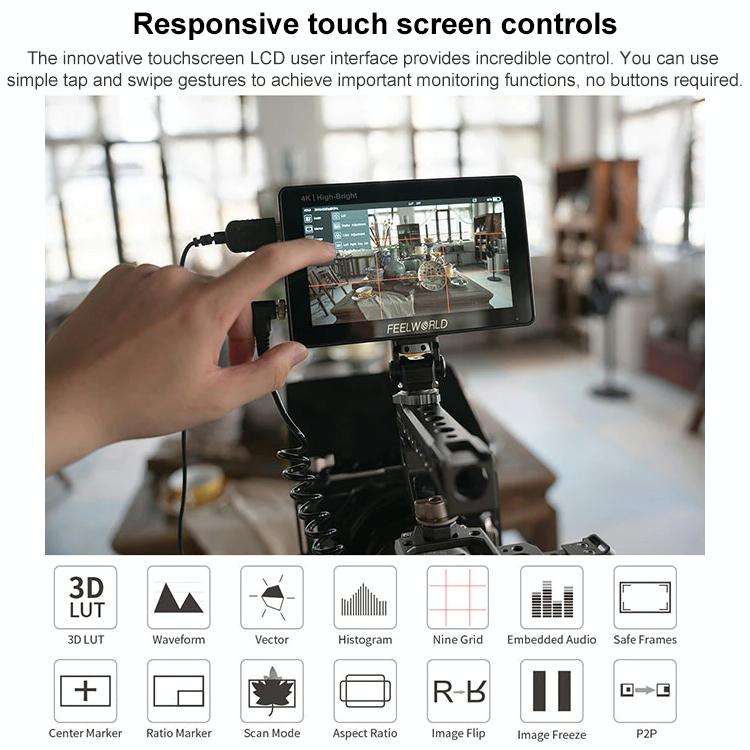

2. Support Touch Menu

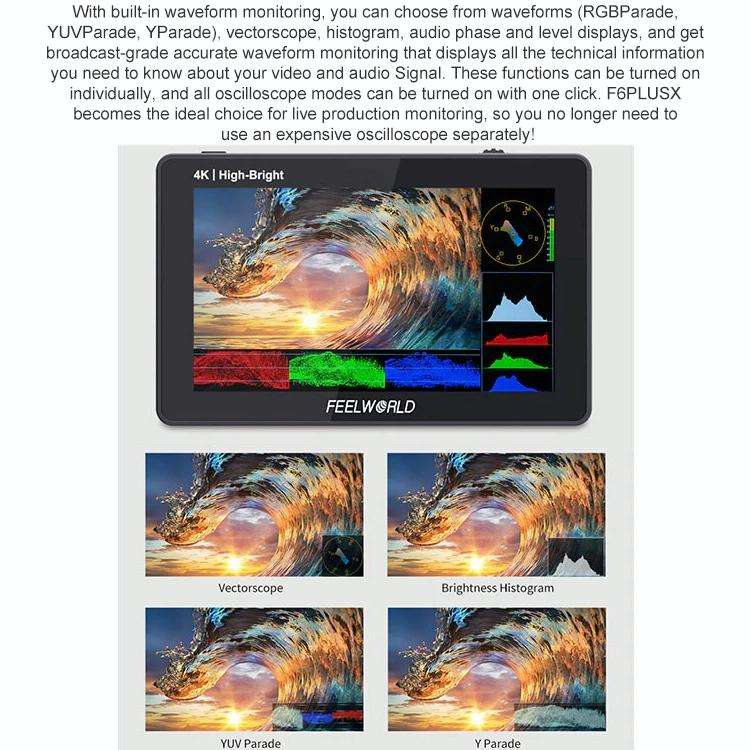

3. All Waves
4. Waveform (RGB, YUV, Y)
5. Vector
6. Brightness Histogram
7. Support screenshot,image overylay

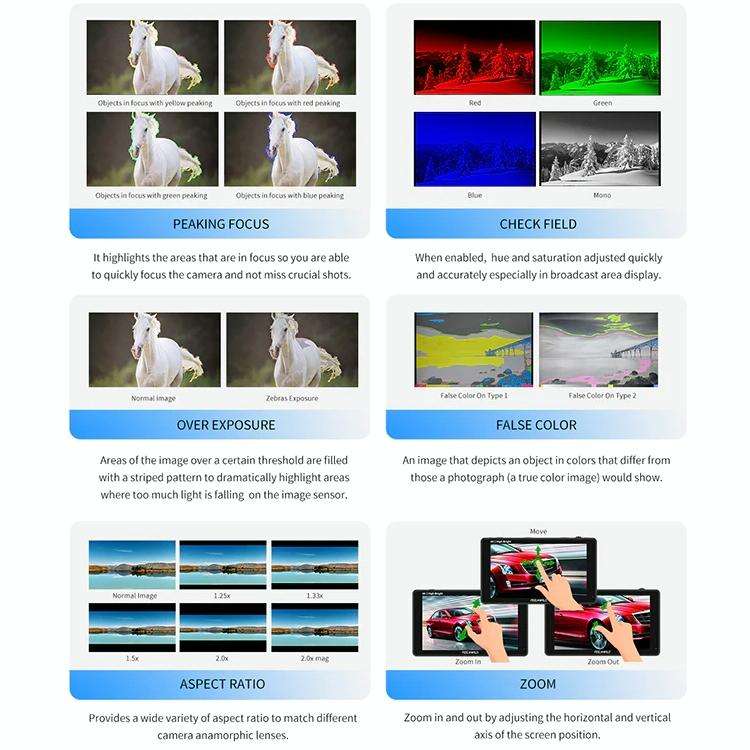

8. Peaking Focus Assist (red, green,blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
9. False Colors
10. Zebra Exposure (10%~100% adjustable)
11. Check Field (Red, Green, Blue, Mono)
12. Scan Mode (Under Scan, Over Scan)
13. Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag)
14. Flip H/ Flip V (All open, H/V flip)
15. Image Freeze
16. Nine Grid
17. Center Marker
18. Safety Frames ( 80%, 85%, 90%, 93%, 96%, 2.35:1)
19. Marker Color (Red, Green, Blue, Black, White, Gray)
20. Ratio Marker ( 4:313:914:915:916:91.85:12.35:1)
21. Color Temperature Adjustment
22. Zoom (2X4X9X16X)
23. Aspect Ratio(Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
24. Pixel to Pixel

Packing List:
1. Monitor x 1
2. Micro HDMI Cable x 1
3. Tilt Arm x 1
4. Sunshade x 1
5. TYPE-C to USB x 1
6. Disassemble Wrench x 1
7. Manual x 1
