Features

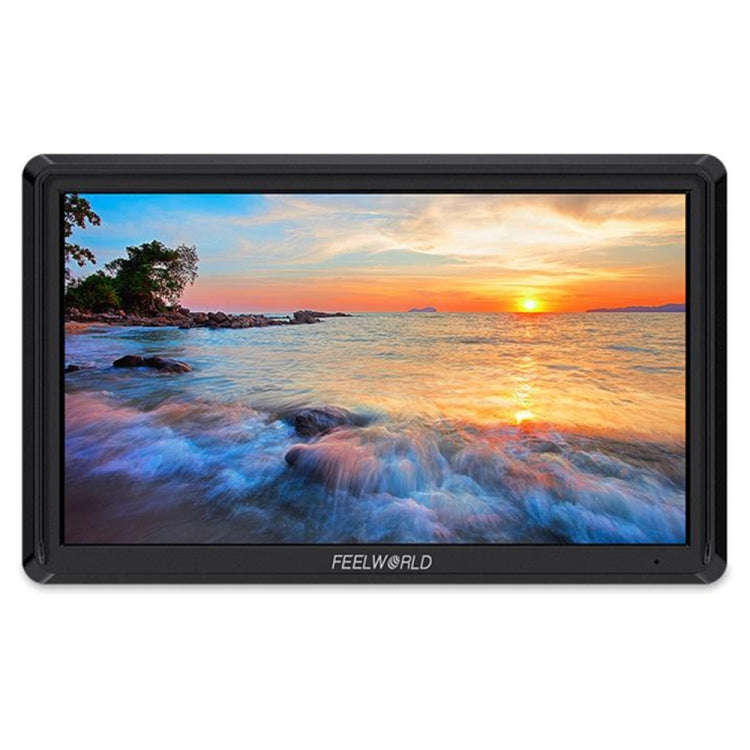

1. Full HD 1920x1152, excellent display technology
2. High contrast: 1000:1, high brightness: 500cd/m2
3. 160-degree ultra-wide-angle IPS visual experience, all-round color reproduction display

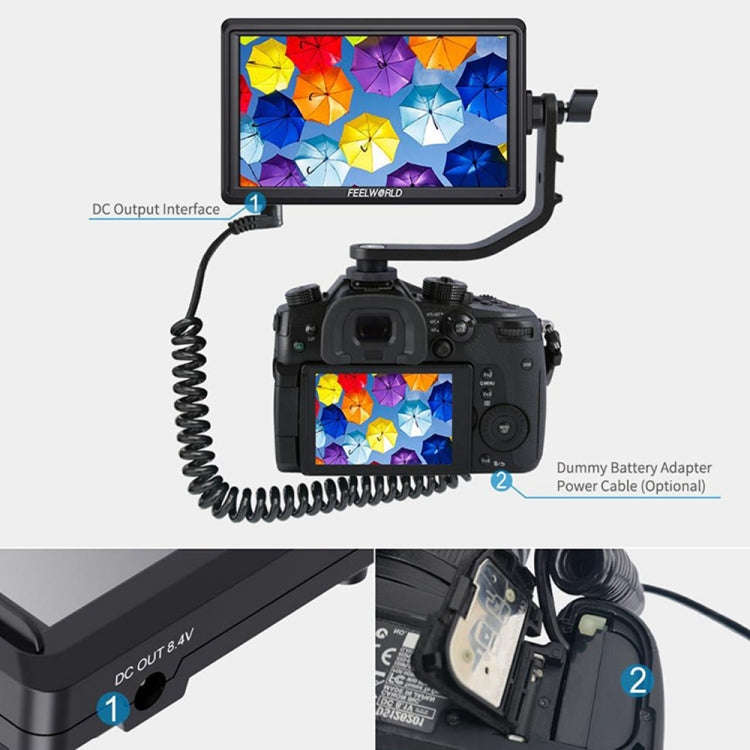

4. DC power output interface, you can connect an additional optional dummy battery power cable to supply power to the SLR camera or mirrorless camera to prolong the shooting time of the camera

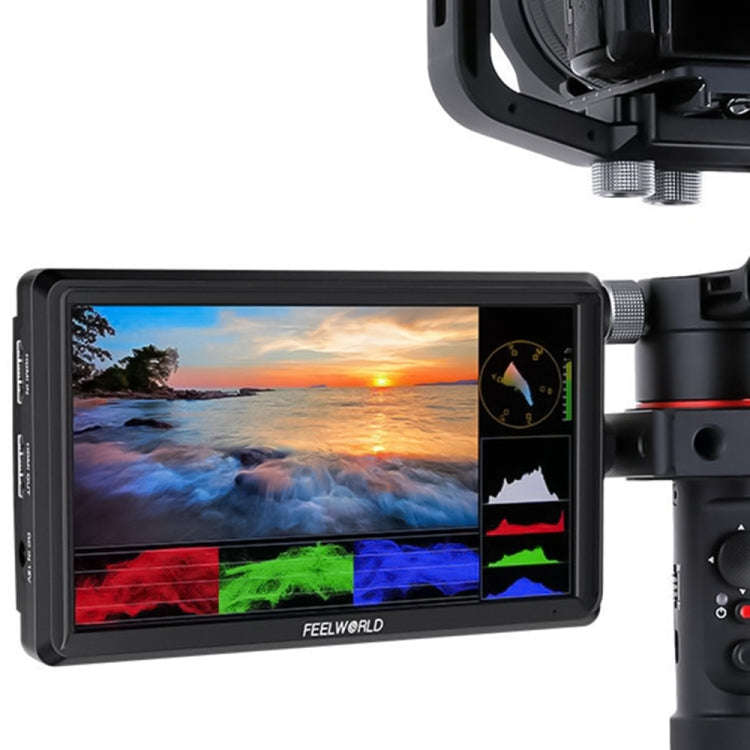

5. Lightweight and portable design is a good companion for camera stabilizer, rocker arm, camcorder kit, handheld stabilizer, camera jack
6. Brightness histogram
7. Auxiliary focus (red, green, blue 3-color focus color optional)
8. False Colors
9. Overexposure reminder (zebra pattern)
10. Jiugongge
11. Audio column
12. Scan mode (underscan, overscan)
13. Image Zoom (Auto, 4x, 9x, 16x)
14. Morph Mode (1.3x, 2.0x, 2.0x mag)
15. Peer-to-peer
16. Center Mark
17. Safe Box (80%, 85%, 90%, 93%, 96%, 2.35:1)
18. Scale markers (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
19. Mark line color (red, green, blue, white, black)
20. Monochrome display (black and white/red/green/blue)
21. Image flip (horizontal, vertical, horizontal & vertical)
22. Image Freeze
23. Global scaling
24. Zoom up/down/left/right
25. Color temperature adjustment
Specifications
Display screen
1. Model: FW568 V3
2. Screen Size: 6.0 inch IPS Touch Screen
3. Resolution: 1920x1152 pixels
4. Pixel Pitch: 0.069 (H) x 0.069 (W) mm
5. Aspect Ratio: 16:9
6. Brightness: 500cd/m2
7. Contrast Ratio: 1000:1
8. Backlight: LED
9. Viewing Angle: 80 degrees /80 degrees (L/R) 80 degrees /80 degrees(U/D)

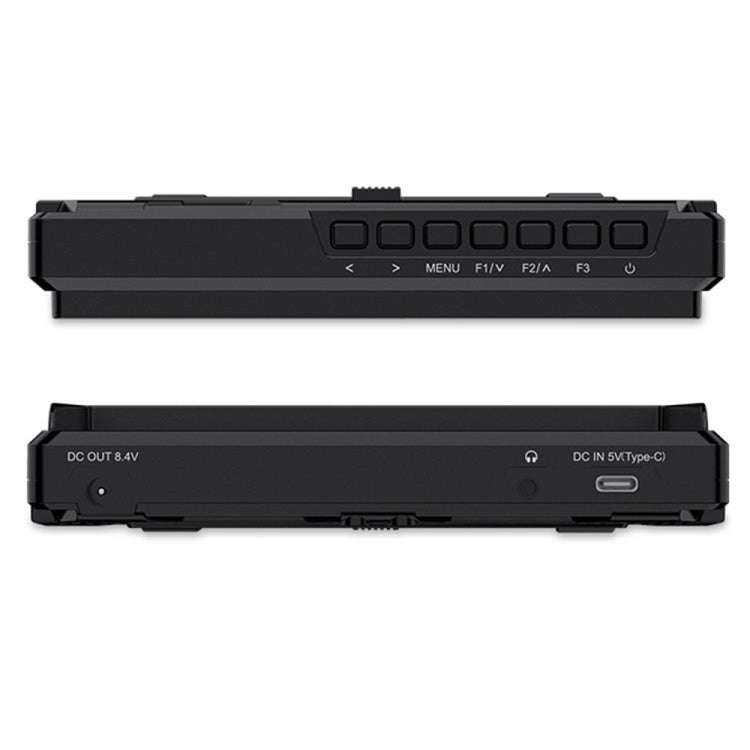

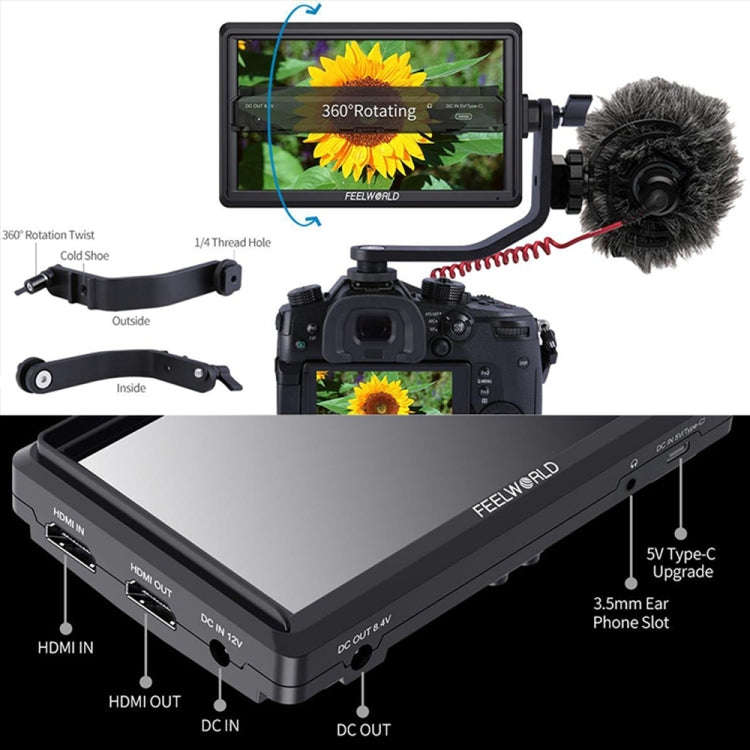

Input
- 1 x HDMI: HDMI
Output
1. 1 X HDMI: HDMI
2. 1 X DC Output: DC Output
Audio
- Audio: Stereo Headphone
HDMI Input/ Output Support Format:
- 480i/576i/480p/576p
- 1080i (60/59.94/50)
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
- 4K UHD 3840 x 2160p (30/29.97/25/24/23.98Hz), 4096 x 2160p (24Hz)
General
1. Input Voltage: DC 7-24V
2. Power Consumption: Less than or equal to 8W
3. Power Connector: DC
4. Working Temperature: -20 degree C~50 degree C
5. Storage Temperature: -30 degree C~60 degree C
6. Install Way: 1/4-20 thread points

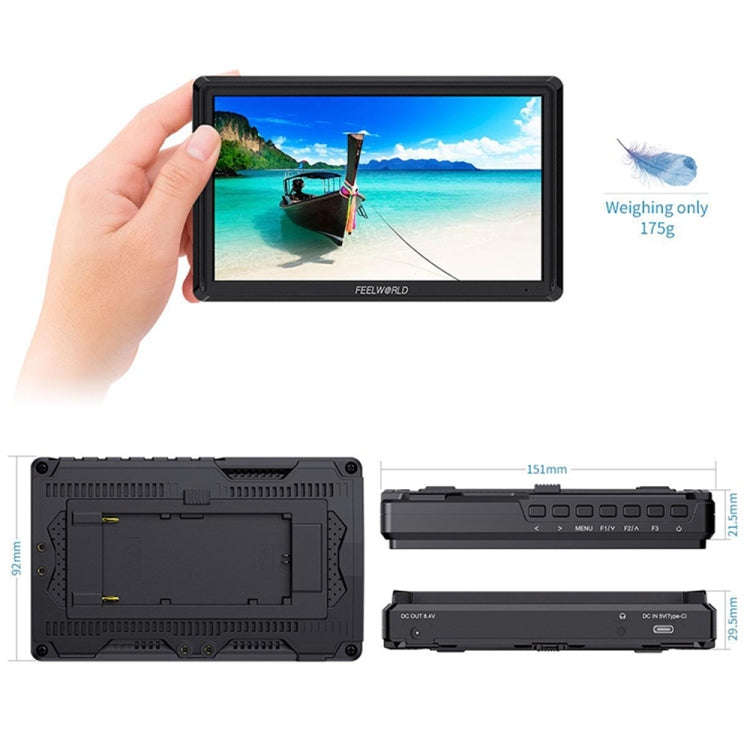

7. Unit Size: 151Lx92Hx29.5D (mm)
8. Unit Weight: 175g
Package List
1. Monitor x 1
2. Micro HDMI Cable x 1
3. Tilt Arm x 1
4. Sunshade x 1
5. Manual x 1
