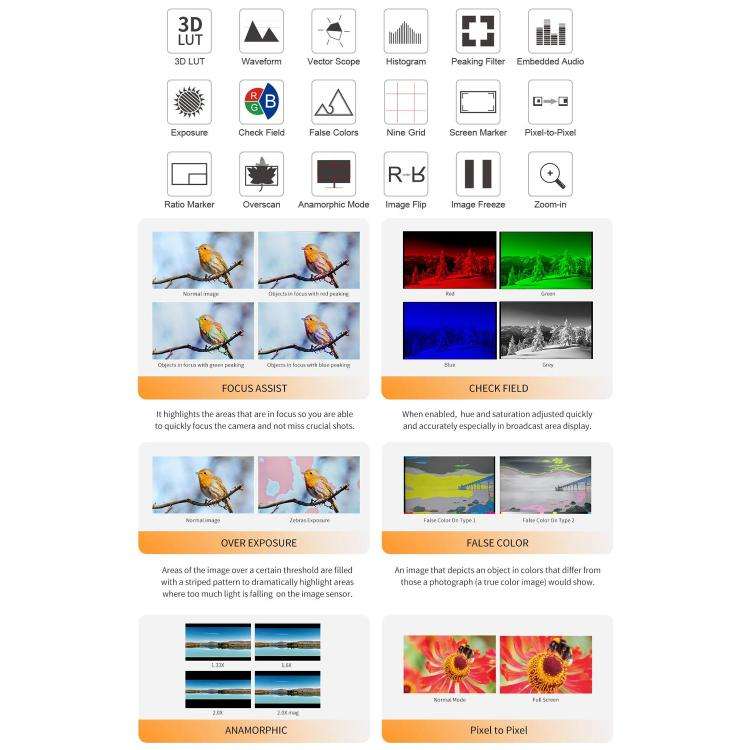

Features
1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)

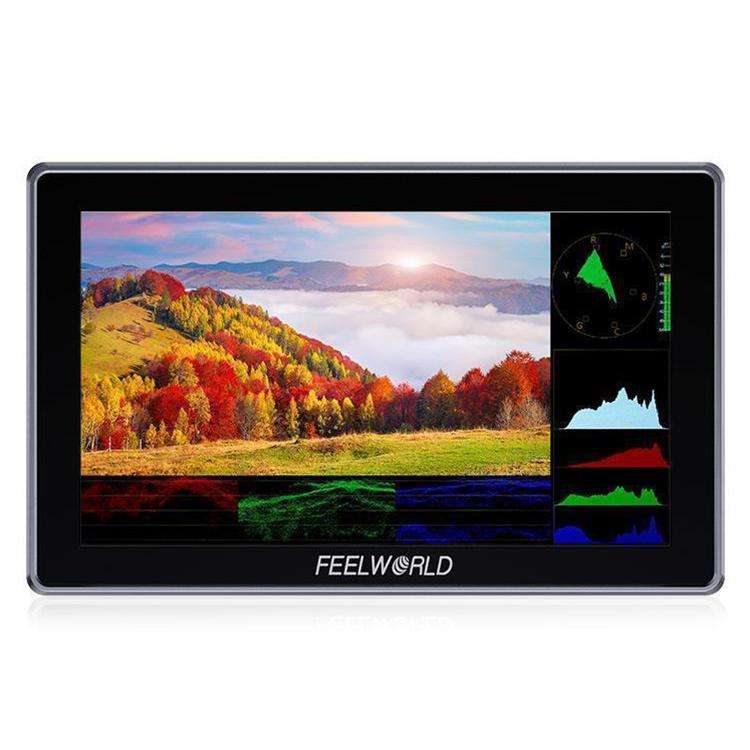

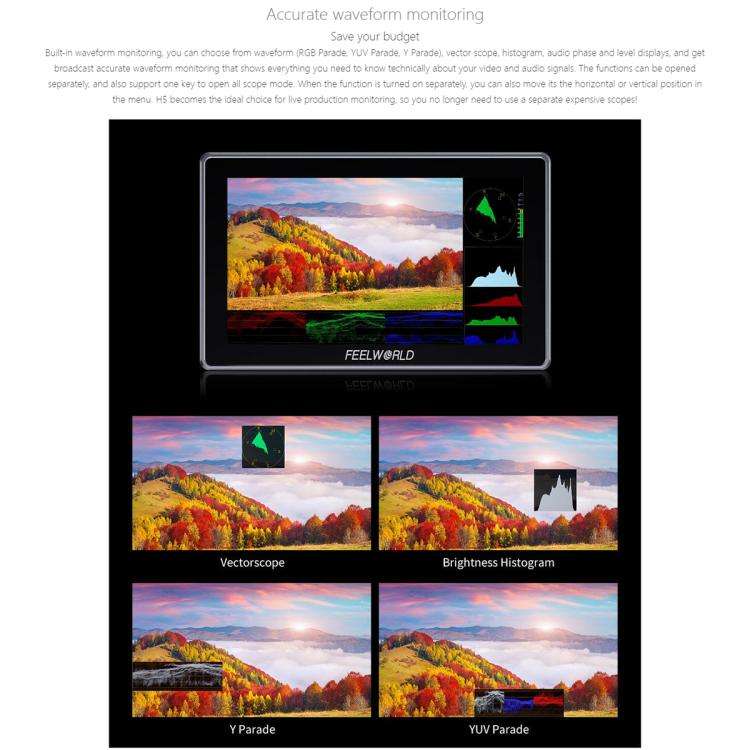

2. Waveform (RGB, YUV, Y)
3. HDR
4. Vector
5. Histogram (RGB1,RGB2,Y)
6. Embedded Audio
7. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
8. False Colors (Normal, ARRI)
9. Over Exposure (10RE~100IRE adjustable)
10. Check Field (Red, Green, Blue, Mono)
11. Scan Mode (Under Scan, Over Scan)
12. Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x)
13. Image Flip (H Flip, V Flip, H_V Flip )
14. Image Freeze
15. Center Marker
16. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
17. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
18. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
19. Marker Color (Red, Green, Blue, Black, White, Gray)
20. Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom. When selecting Custom, you can custom the rows and columns from 2~9)
21. Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100~200 percent)
22. Pixel to Pixel

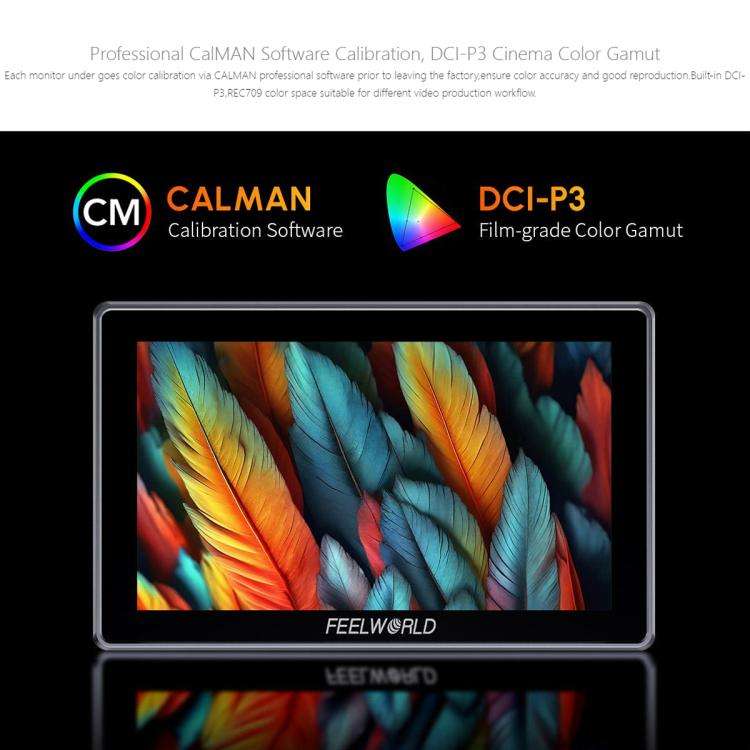

23. Color Gamut (DCI-P3, REC709)
24. Display Range(Auto, Limit, Full)
25. Color Temp. (5600K, 6500K, 9300K, User.Under the "user", the red, green, and blue values of the image can be adjusted 0~255)
Specifications
Display Spec.:

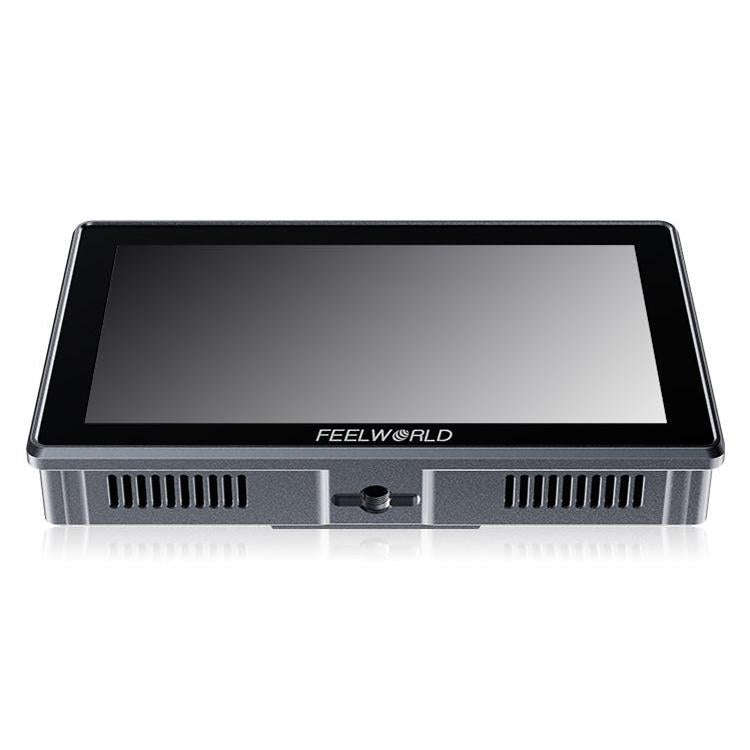

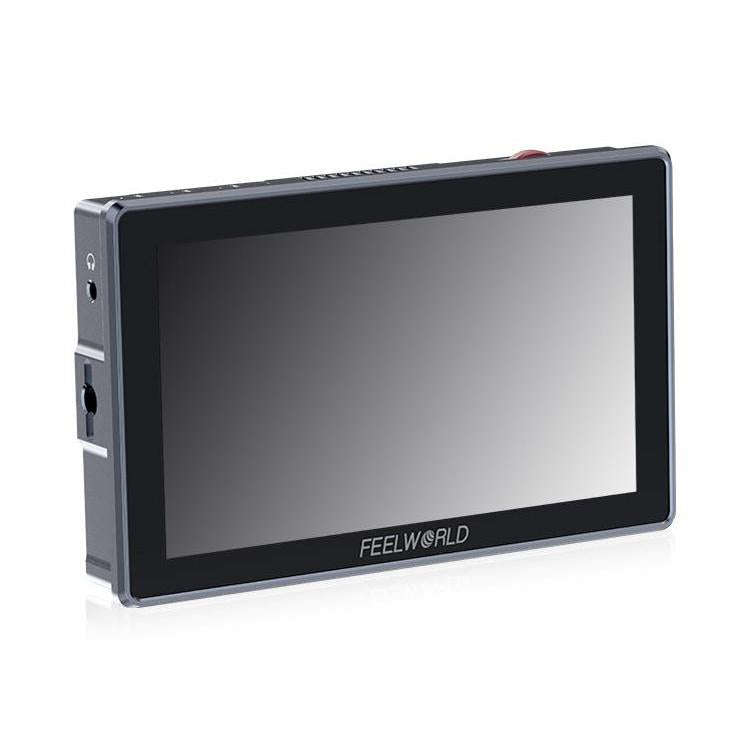

1. Model: H5
2. Screen Size: 5.5 inch IPS
3. Resolution: 1920x1080 pixels
4. Pixel Pitch: 0.063(H) x 0.063 (V) (mm)
5. Color Depth: 10bit (8+2bit)
6. Aspect Ratio: 16:9
7. Brightness: 1200cd/m2
8. Contrast Ratio: 1000:1
9. Backlight: LED
10. Viewing Angle: 80 degree /80 degree (L/R) 80 degree / 80 degree (U/D)

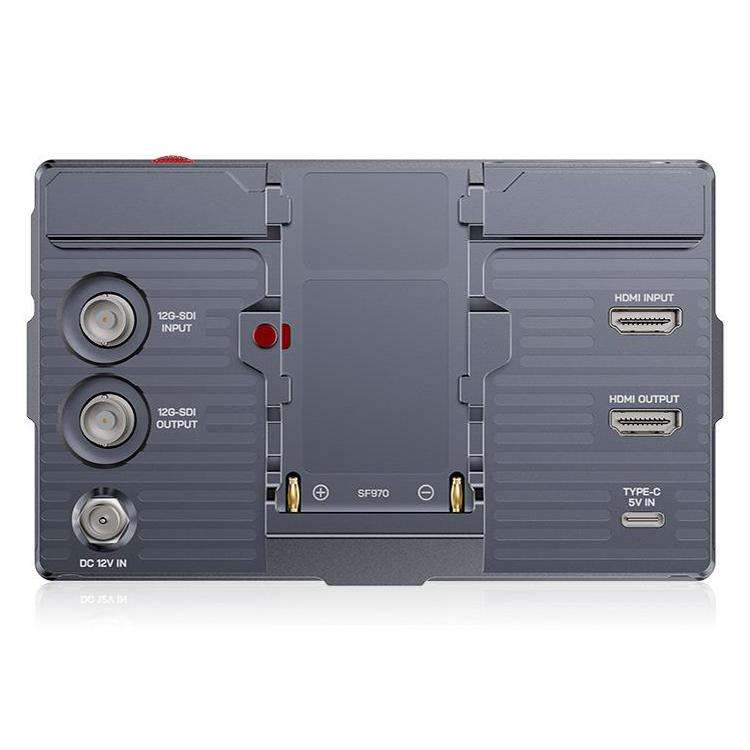

Input:
1. 1 x SDI: 12G-SDI
2. 1 x HDMI: HDMI 2.0
3. 1 x USB-C: 5V Type-C: 1. LUT file or firmware update port; 2. power input (please use 5V/2A or more than 2A Type-C power supply)
4. 1 x DC: DC IN 12V (suitbale for Barrel DC 5.5 x 21mm power cable plug)
Output:
1. 1 X SDI: 12G-SDI
2. 1 X HDMI: HDMI2.0
Audio:
Audio: 3.5mm Stereo Headphone
12G-SDI Input and Output Support Format:
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/23.98)
4. 2048 x 1080 (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)
5. 4K 3840 x 2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
6. 4K 4096 x 2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
HDMI Input and Output Support Format
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50)
4. 4K 3840 x 2160p (60/50/30/29.97/25/24/23.98)
5. 4K 4096 x 2160p(60/50/30/29.97/25/24/23.98)
General:
1. Input Voltage: DC7-24V
2. Power Consumption: Less than or equal to 12W
3. Working Temperature: -20 degree C~70 degree C
4. Storage Temperature: -30 degree C~80 degree C

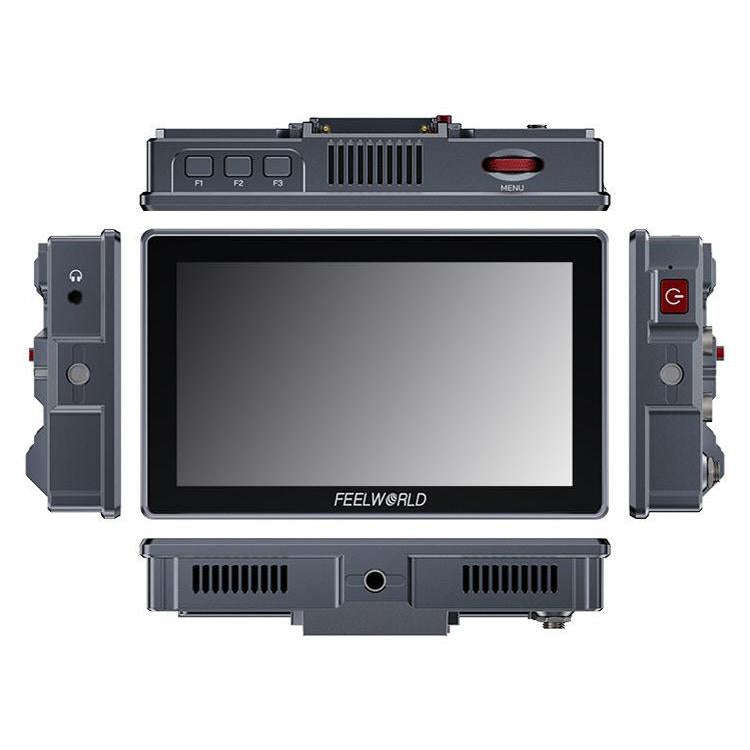

5. Install Way: 1/4 inch -20 Thread (Left,Right,Bottom)
6. Unit Size: 145.25x90.3x30.85(mm)
7. Unit Weight: 306g
Package List
1. Monitor x 1
2. Micro HDMI Cable x 1
3. HDMI Cable x 1
4. Mini Hot Shoe Mount x 1
5. USB-A to USB-C Adapter x 1
6. Cable Management Tie x 1
7. Manual x 1
