FEELWORLD LUT7S PRO 1920x1200 2200 nits 7 inch IPS Screen HDMI 4K SDI Touch Camera Monitor
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
EDA0018243
Bob Shop ID
614237801
Panel characteristics
1. Screen size: 7 inches IPS
2. Resolution: 1920x1200 pixels
3. Dot pitch: 0.07875 (H) x 0.07875 (W) (mm)
4. Screen ratio: 16:10
5. Brightness: 2200cd/m2 (light sensor)
6. Contrast ratio: 1200:1
7. Backlight source: LED
8. Viewing angle: 80 degrees/80 degrees (L/R) 80 degrees/80 degrees (U/D)
enter

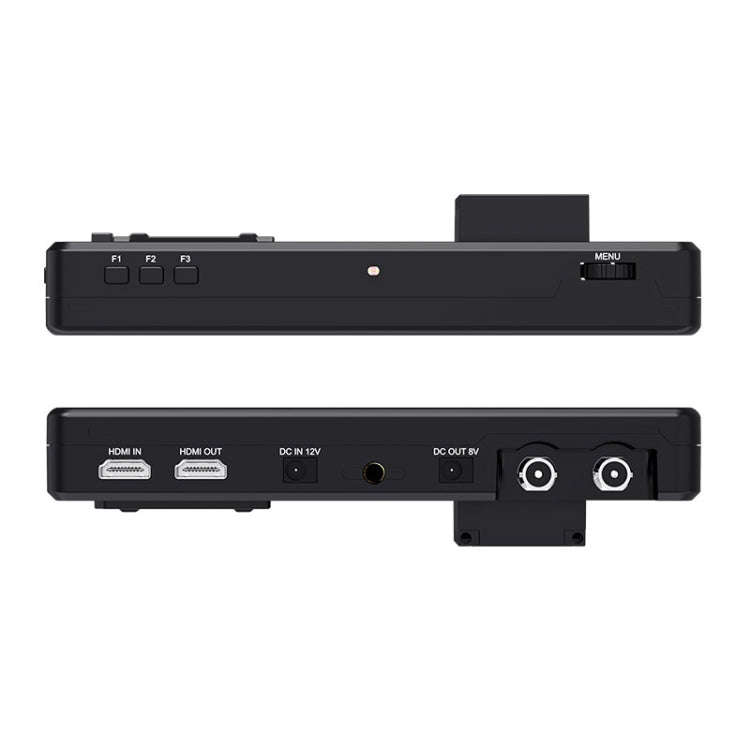

1. 1x BNC: 3G-SDI
2. 1x HDMI: HDMI
Output
1. 1x BNC: 3G-SDI
2. 1x HDMI: HDMI
3. 1x DC: DC OUT 8V (outer diameter 5.5mm, inner diameter 2.1mm; can supply power to SLR or mirrorless camera)
Audio
1. Audio: headphone jack, speaker
HDMI input/output format:
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
4K UHD 38402160p (30/29.97/25/24/23.98), 40962160p (24Hz)
Other specifications:
1. Input voltage: DC7-24V
2. Power consumption: greater than or equal to 20W
3. Working temperature: -20-50 degrees Celsius
4. Storage temperature: -30-60 degrees Celsius
5. Installation method: 1/4-20 standard quick installation screw hole (left, right, bottom)
6. Battery gusset: F970 battery gusset
7. Stand-alone size: 190Lx126Hx27D (mm)
8. Stand-alone weight: 450g
9. Note: You need to press the power button when shutting down, and you cannot unplug the power cord directly
Product Features:
1. Support 3D LUT Log gray film conversion to Rec709 monitoring, user-defined 3DLUT upload
2. Support touch menu
3. Support full waveform display
4. Waveform diagram (RGB, YUV, Y)
5. Vector graphics
6. RGB histogram
7. Brightness histogram
8. Auxiliary focus (red, green, blue, white, yellow focus color is optional; 1-10 focus level is optional)
9. Pseudo-color
10. Zebra pattern overexposure reminder (percent 1-100 adjustable)
11. Monochrome display (gray, red, green, blue)
12. Scan mode (under scan, over scan)
13. Deformation mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
14. Image flip (horizontal, vertical, horizontal & vertical)
15. Image freeze
16. Jiugongge
17. Center mark
18. Safety mark (percent 70, percent 80, percent 90, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
19. Mask mark (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
20. Marking color (red, green, blue, white, black, yellow)
21. Color temperature adjustment
22. Image enlargement (percent 100-300)
23. Display ratio
24. Point to Point

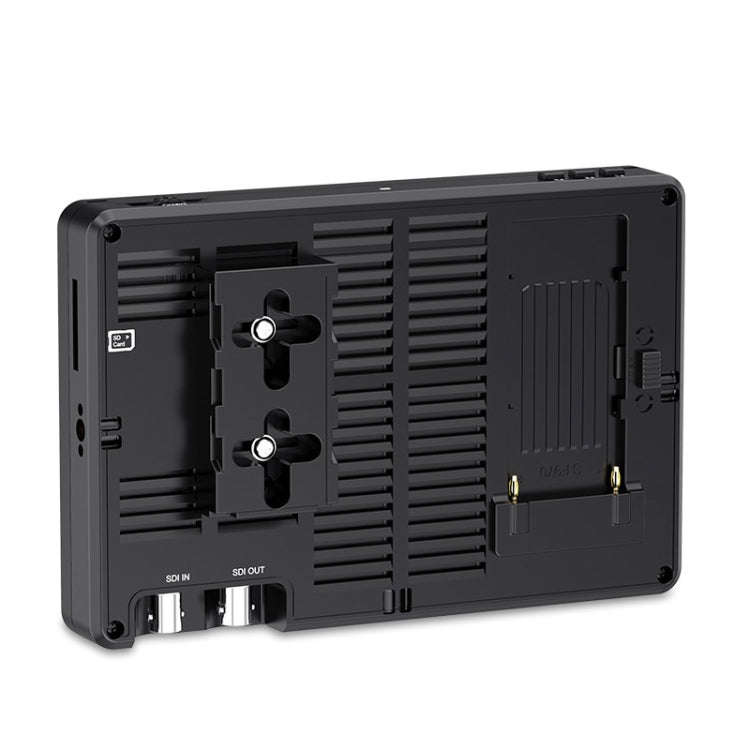

25. A Sony F970 external power supply kit design has been added to the back of the monitor. You can install wireless video transmission, photography lights, conversion boxes, or other devices that can be powered by F970 batteries directly on it, and you can use the monitor for it powered by. This innovative external power supply design reduces the photographers need for external wireless video transmission, photography lights and other equipment to supply power, which greatly saves the space occupied by the equipment and reduces the weight of the photography equipment. The kit has two cross grooves, you can adjust the position of the external device by loosening the screws. When you dont need the kit, you can directly loosen the screws and remove the kit.

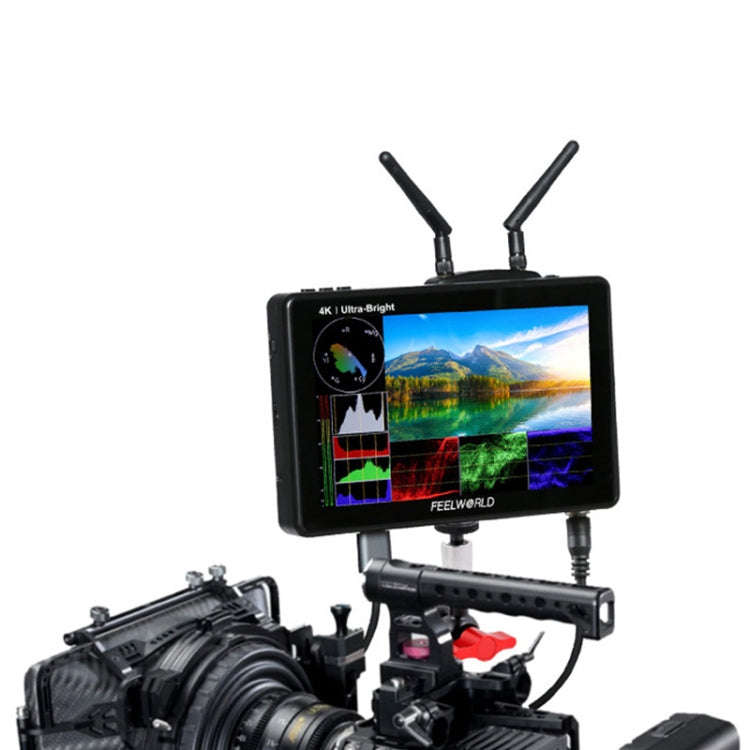

26. FEELWORLD LUT7S PRO has a complete set of tools with simple operation and professional functions. All operations can be completed with one touch. Video assistance functions include focusing, composition and exposure tools (waveform, vector diagram, RGB histogram, brightness histogram, audio column, peak focus, zoom, zebra pattern, pseudo color, safety frame, etc.) and a flexible 3D LUT loading Tools (either using the built-in LUT or custom uploading .cube files) and anamorphic widescreen recovery function.
27. FEELWORLD LUT7S PRO can perform clear and accurate on-site monitoring and image analysis during daytime shooting. The 7-inch 1920x1200 Full HD panel displays images and videos with excellent color reproduction capabilities. The panel has an anti-glare coating, so you can comfortably monitor outdoors during the day. The important point is its brightness of 2200 nits, 1200:1 contrast ratio and sRGB/Rec.709 color gamut, which can provide excellent screen clarity even under strong light. The monitor display content reaches 323 pixels per inch (PPI), so you can rest assured to shoot in broad daylight and optimize the content on the spot. The 160-degree wide viewing angle of the display screen can also provide a clear picture view for multiple crew members at the same time.
28. The monitor not only has fine pixels to make every picture beautiful and eye-catching, but also has an ultra-high brightness of 2200 nits, which is 4 times the brightness of a normal monitor. This allows you to be clearly visible without a hood when shooting outdoors, which brings convenience to your outdoor shooting in bright sunlight!
Standard configuration:
1. HDMI, 1 point 2 lines x1

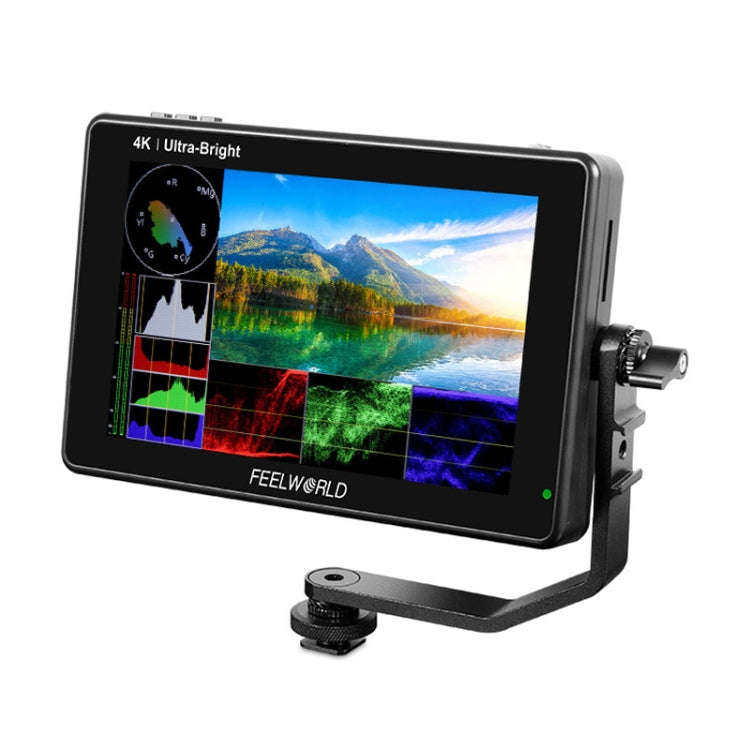

2. Tilt bracket x1
3. Manual x1
