Features
1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 50)
2. SDI/HDMI support LUT out
3. Waveform (RGB, YUV, Y)
4. HDR
5. Vector
6. Histogram (RGB,Y )
7. Embedded Audio

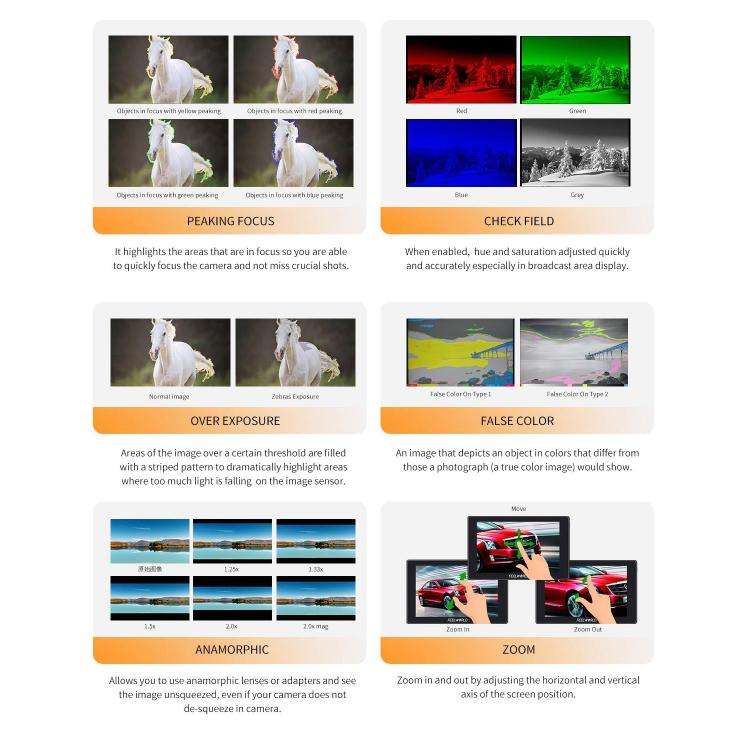

8. Focus Assist (Yellow, Magenta, Cyan, Red, Green, Blue, White seven focus colors optional; 1~8 focus level adjustable)
9. False Colors (Spectrum, ARRI)
10. Zebra Exposure (0IRE~100IRE adjustable)
11. Check Field (Red, Green, Blue, Mono)
12. Scan Mode (Under Scan, Over Scan)
13. Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
14. Mirror (Auto, Flip H, FlipV )
15. Image Freeze
16. Center Marker

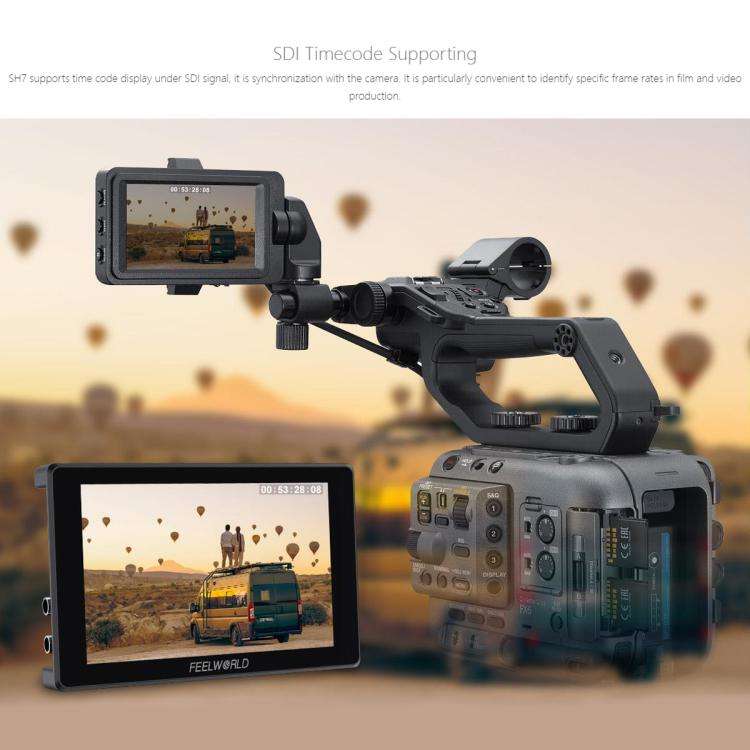

17. Time code (for SDI signal)
18. Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1, 4:5, 9:16: 1.85:1, 2.35:1)
19. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user.Under the "user", you can customize the Video Width and Video Height 100 ~ 300 percent)
20. Cinema Guides(16:9, 16:10, 4:3, 1.85:1, 2.35:1, 2.41:1, 1.91:1, 5:4, 1:1.9)
21. Marker Color (Yellow, Magenta, Cyan, Red, Green, Blue, White)

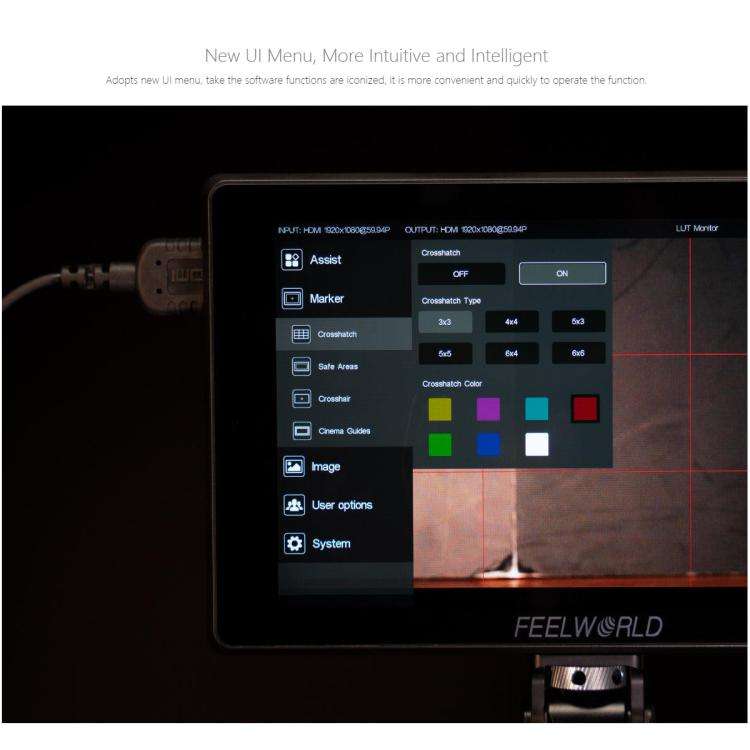

22. Crosshatch (3x3, 4x4, 5x3, 5x5, 6x4, 6x6)
23. Zoom (1.0x???5.0x)
24. Pixel to Pixel
25. Display Setup (can be adjust the image Brightness, Saturation, Hue, Sharpness 0~100)
26. Color Space (REC709, DCIP3, BT2020)
27. Color Temp. (5600K, 6500K, 9300K, User.Under the "user", the red, green, and blue values of the image can be adjusted 0~255)
28. Built-in fan (Low, Middle, High)
29. Battery Power Display
Specifications
Display Spec.:

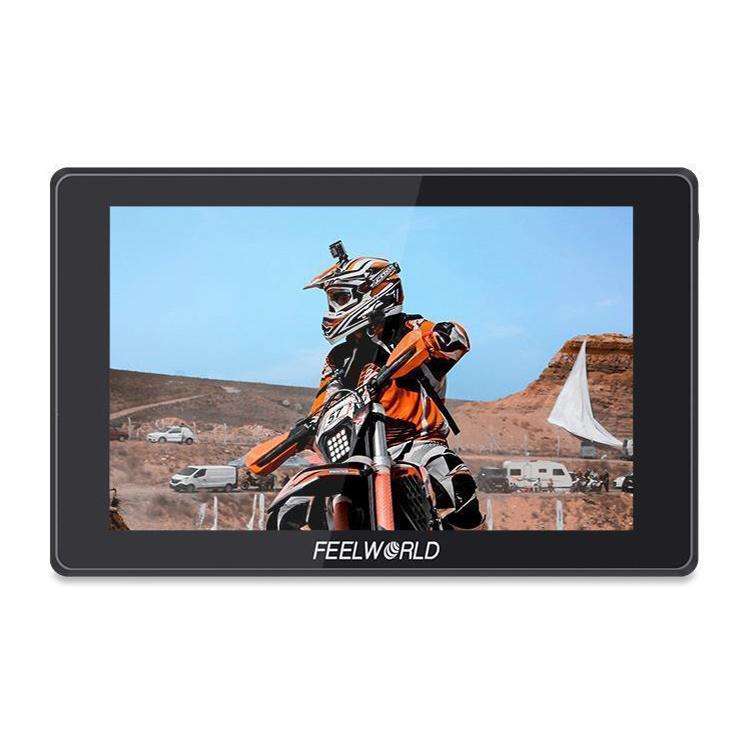

1. Model: SH7
2. Screen Size: 7.0 inch IPS
3. Resolution: 1920x1200 pixels
4. Pixel Pitch: 0.07875 (H) x 0.07875(V) (mm)
5. Aspect Ratio: 16:10
6. Brightness: 2200cd/m2
7. Contrast Ratio: 1200:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree / 80 degree (U/D)

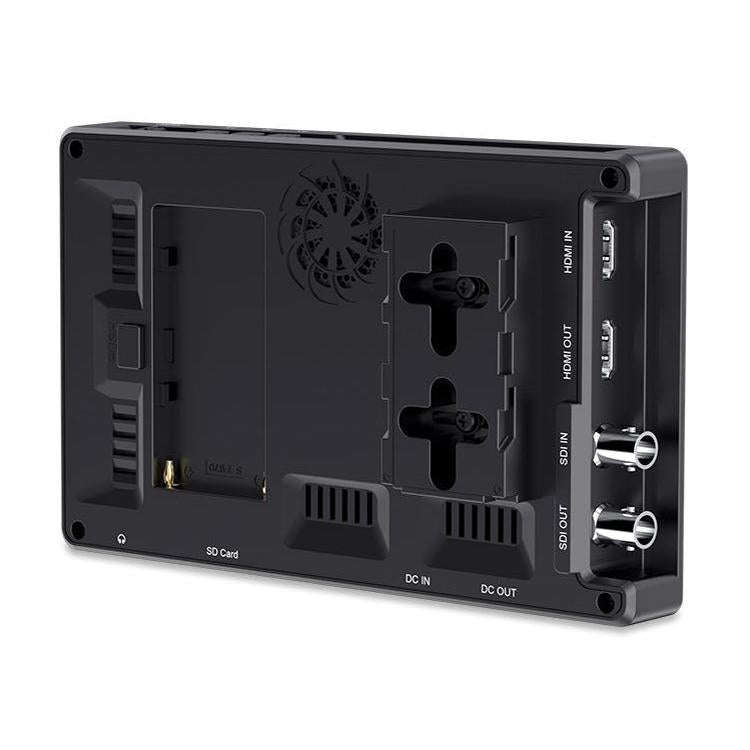

Input:
1. 1 x SDI: 12G-SDI
2. 1 x HDMI: HDMI 1.3
3. 1 x SD Card: SD Card Slot (LUT files and firmware update file import)
Output:
1. 1 x SDI: 3G-SDI
2. 1 x HDMI: HDMI 1.3
3. 1 x DC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.
Audio:
Audio: 3.5mm Stereo Headphone
SDI Support Format:
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/23.98)
HDMI Support Format:
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50)
General:
1. Input Voltage: DC7-24V
2. Power Consumption: Less than or equal to 15W
3. Working Temperature: -20 degree C~50 degree C
4. Storage Temperature: -30 degree C~60 degree C
5. Install Way: 1/4 inch -20 Thread (Left,Right,Bottom)
6. Unit Size: 186.8L x 118H x 23D(mm)
7. Unit Weight: 420g
Package List
1. Monitor x 1
2. Mini/Micro HDMI to HDMI Cable x 1
3. Tilt Arm x 1
4. Disassembly Wrench x 1
5. Manual x 1
