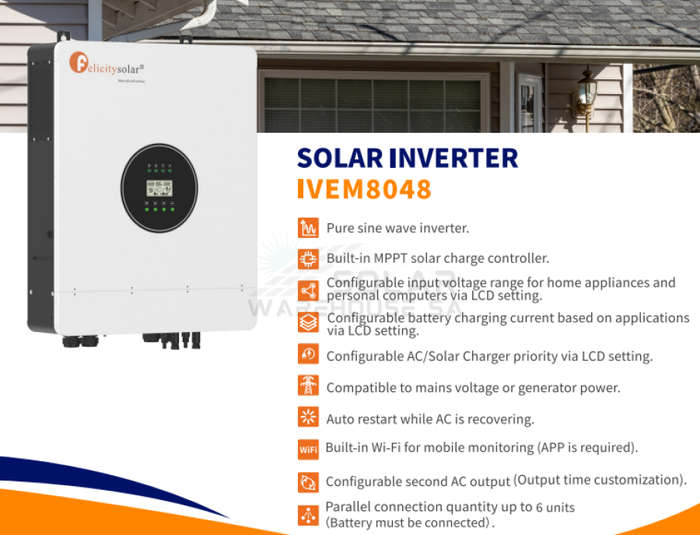

Felicity Solar 8Kw 48V Inverter Single Phase off Grid Solar Inverter

Felicity Solar IVEM8048  is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to easy-accessible button operation such as battery charging current,AC/solar charger priority, and acceptable input offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and voltage based on different applications.

Pure sine wave inverter
Built-in MPPT solar charge controller Supports dual solarinput
Built-in Wi-Fi for mobile monitoring(APPis required)
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priorityvia LCD setting
Compatible to mains voltage or generator power
Configurable second AC output (Output time customization)
Auto restart while AC is recovering
Overload/Over temperature/short circuitprotection
Inverter running without battery
Lithium battery activation function.
Cold start function
Parallel connection quantityup to 6 units(Battery must be connected)

Model    IVEM8048
Rated Output Power    8000VA
8000W
Nominal DC Input Voltage    48V
Input Voltage Waveform    Sinusoidal (utility or generator)
Nominal Input Voltage    230Vac
Low Line Voltage Disconnect    170Vac±7V (UPS); 90Vac±7V(Appliances)
Low Loss Voltage Re-connect    180Vac±7V (UPS); 100Vac±7V(Appliances)
High Line Voltage Disconnect    280Vac±7V
High Line Voltage Re-connect    270Vac+7V
Max AC Input Voltage    280Vac
Nominal Input Frequency    50Hz/60Hz (Auto detection)
Low Line Frequency Disconnect    40±1Hz
Low Line Frequency Re-connect    42±1Hz
High Line Frequency Disconnect    65±1Hz
High Line Frequency Re-connect    63±1Hz
Output Voltage Waveform    As same as input waveform
Output Short Circuit Protection    Line mode: Circuit Breaker
Battery mode: Electronic Circuits
Efficiency (Line Mode)    >95% (Rated R load, battery full charged)
Transfer Time (Single unit)    10ms typical (UPS); 20ms typical(Appliances)
Transfer Time (Parallel)    50ms typical
Pass Through Without Battery    Yes
Max.Bypass Overload Current    53A
Max. Inverter/Rectifier Current    40A/8000W
Operating Temperature    0°~55C*
Range Storage Temperature    -15C°~60C°
Net Weight (Kg)    23.7KG
Product Size (D*W*H)    607x406x141MM
Package Dimension (D*W*H)    712x582x259MM

2 Year Warranty

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
