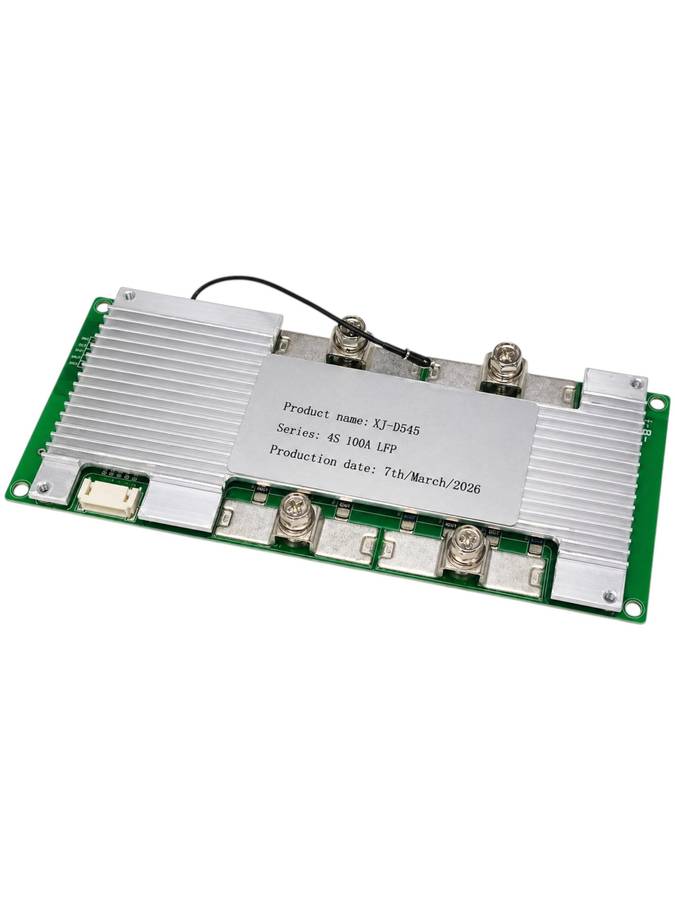

This 100A 12V BMS is the standard for high-capacity LiFePO4 (LFP) battery builds. Operating on a 4S configuration (nominal 12.8V), it is built to handle massive current draws up to 100 Amps continuous. The XJD 545 model is ideal for users building their own loadshedding backup batteries or upgrading lead-acid systems to lithium in caravans and boats.
Key Features:
Chemistry: LiFePO4 (LFP)
Configuration: 4S (4 Cells in Series)
Voltage: 12.8V Nominal | 14.6V Max Charge
Current Rating: 100A Continuous Discharge

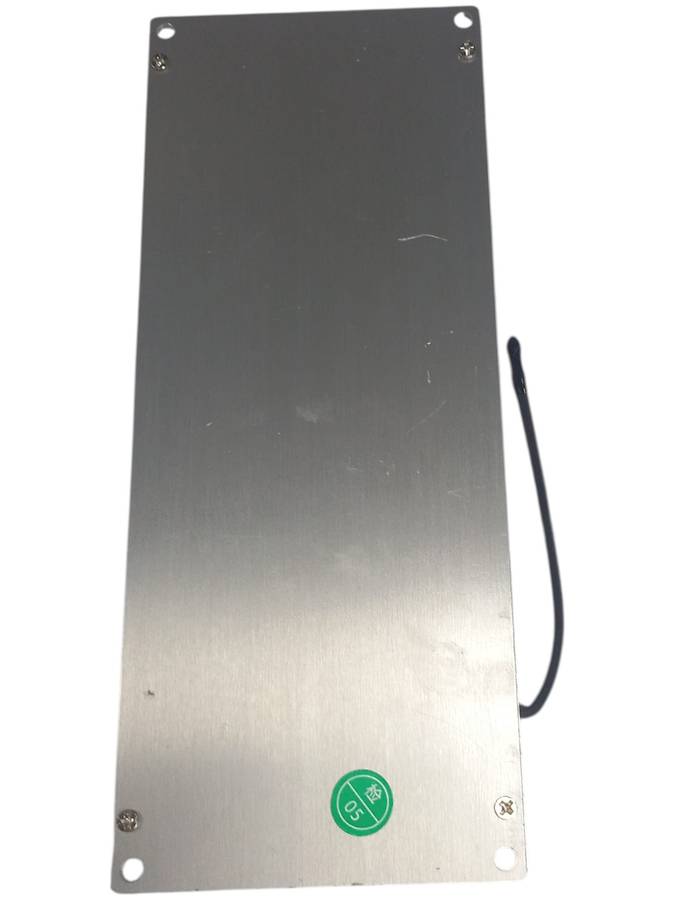

Thermal Protection: Large surface area for efficient cooling under heavy loads.
Safety Suite: Over-charge, over-discharge, over-current, and short-circuit protection with cell balancing.
Ideal For:
12V Solar Energy Storage Banks
Inverter Power Supplies
Caravan and Dual-Battery Systems
Trolling Motors and Marine use
