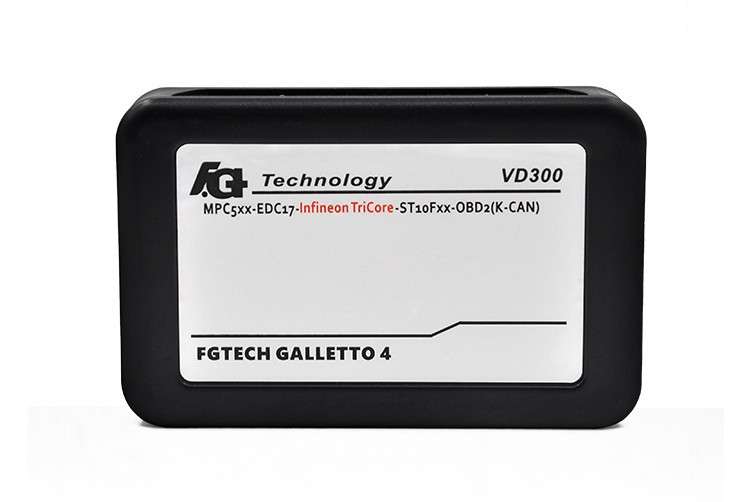

FGtech Galletto 4 Master VD300 v54 with BDM TriCore-OBD Function
Brand New
R1599
Available for Countrywide Postage.
Registered Post (5-7 days) R30
Econoparcel SAPO (5-7days) R42
Economy Courier (Major Centres only) R60
Speedpost overnight to counter R82
Overnight Courier to Door (only Jhb, Pta, Bloem, Kimberley, Nelspruit, Dbn, PMB, Pietersburg) R75 Overnight Courier to Door (only C. Town, PE, EL & George) R85
Door Courier to All other areas (1-2 day delivery) R100
Latest Version VD300 V54 FGTech Galletto 4 Master BDM-TriCore-OBD Function
Top 6 Reasons To Get VD300 V54 FGTech Galletto 4:
1. Latest Version: V54
2. Supported Operating Systems: Windows XP, Vista & 7
3. Unlocked Version: No need for activation
4. FGTECH V54 PCB board
5. Supported Languages: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish
6. Supports Tricore Function
Description:
FGTech Galletto 4-Master: this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbike, Marine, BDM MPCxx , BDM Boot Mode, checksum.
Boot Mode System:
NEW JTAG - BDM - MOTOROLA - FREESCALE - INFINEON
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF
New Delphy DCM3.5xx DCM3.7xx TRW
Motorola Freescale MPC 555/556/561/562/563/564/565
Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
Motorola MC 68376 Campi 01 Lamborghini - Lotus
Motorola MC 68336 MEMS D5 ROVER
Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG
New Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-Cadilac
New Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu
Automatic Checksum:
All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
Boot Mode C167x / ST10, Boot Mode Infineon With password Bosch , Siemens
Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
Motorola Freescale MPC 555/556/561/562/563/564/565
Freescale MPC 5553/5554/5565/5566
BDM
5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM GM -FORD
Rx Tx RS232,
RS 485,
Automatic setup Pull up K-L line 250, 500, 1000 ohm,
Automatic setup termination Can bus 0, 60,120 ohm,
FGTech Galletto 4 Master Version:
Recovery Mode Completa
Funzione scan tool per eliminare i DTC
Function scan tool for erase the DTC
Controllo tensione di batteria auto in tempo reale
Check tension of battery car in real time

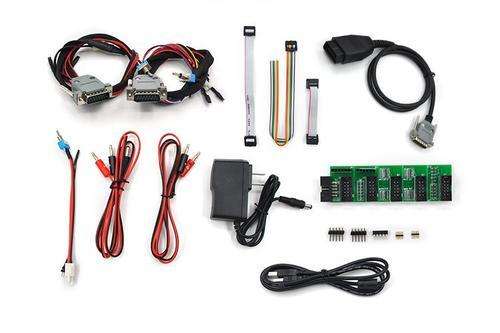

Package List:
1pc x New Version Main Interface
1pc x ECU Cable for Boot
1pc x Adapter for BDM to CMD with BDM Cables
3pcs x BDM Adapters
6pcs x BDM Connectors
2pcs x Power Cable
1pc x OBD2 Cable
1pc x USB Cable (1.5meter)

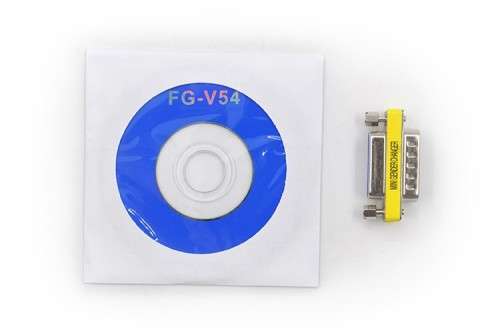

1pc x CD
