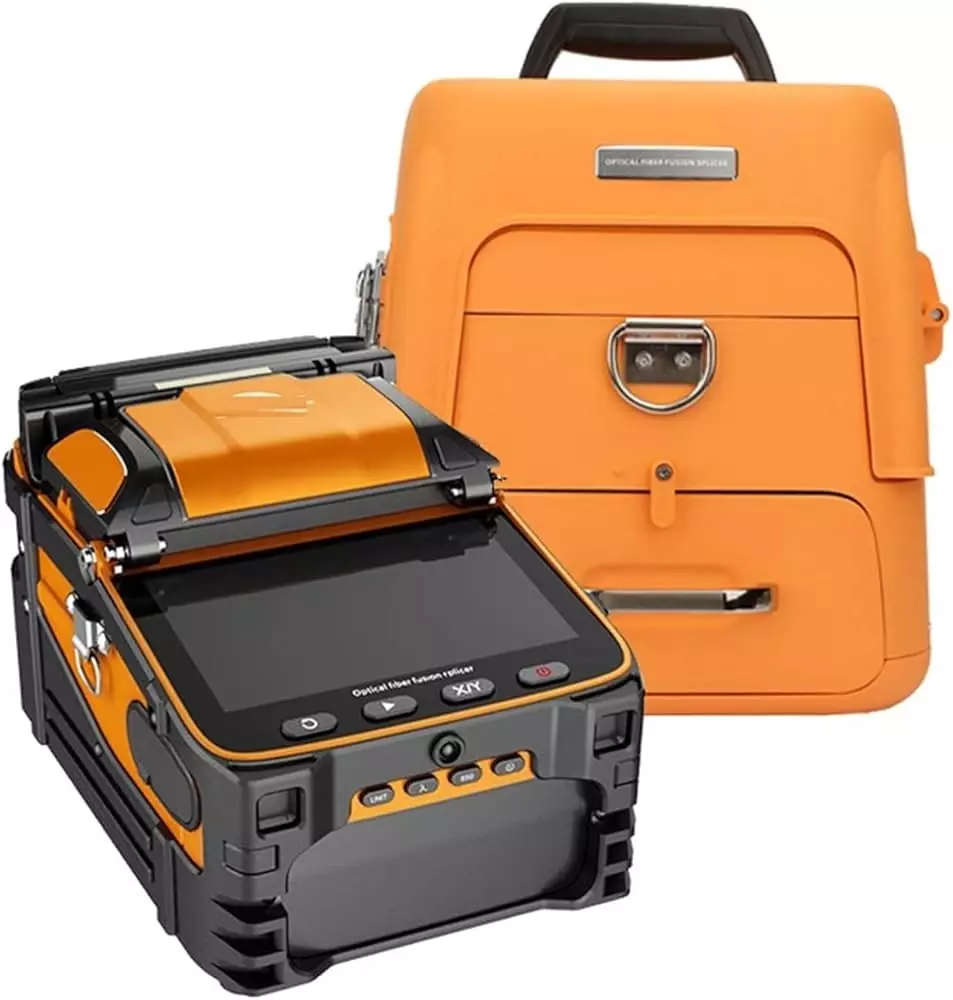

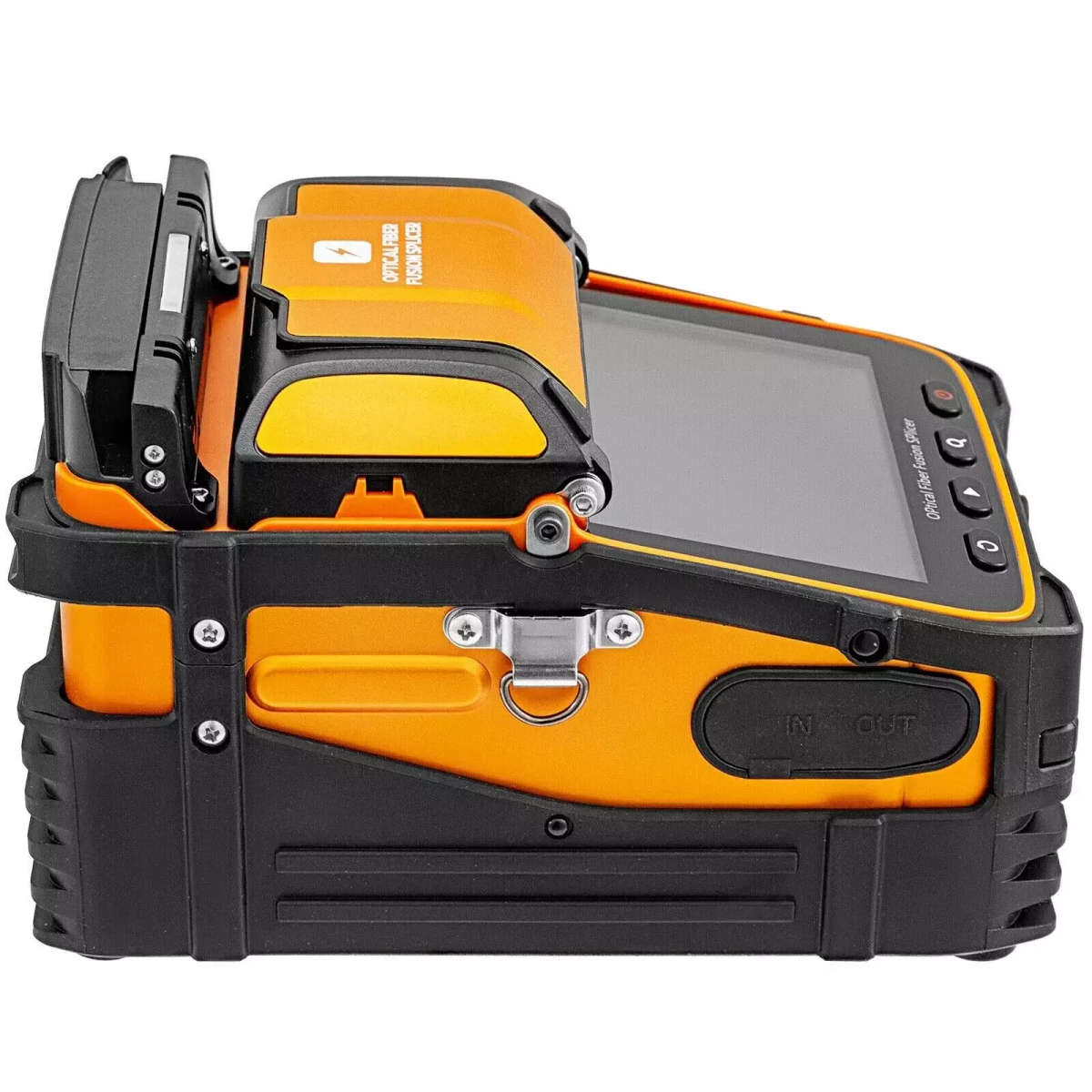

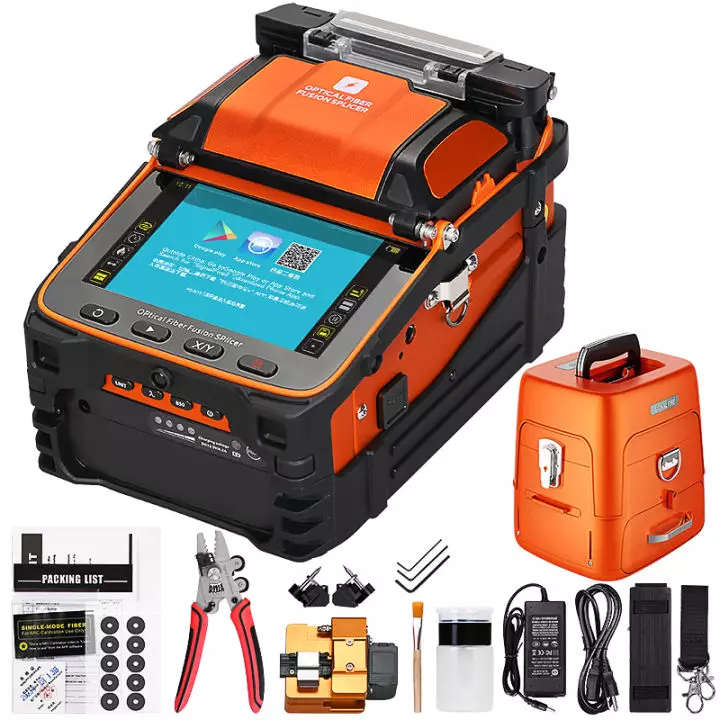

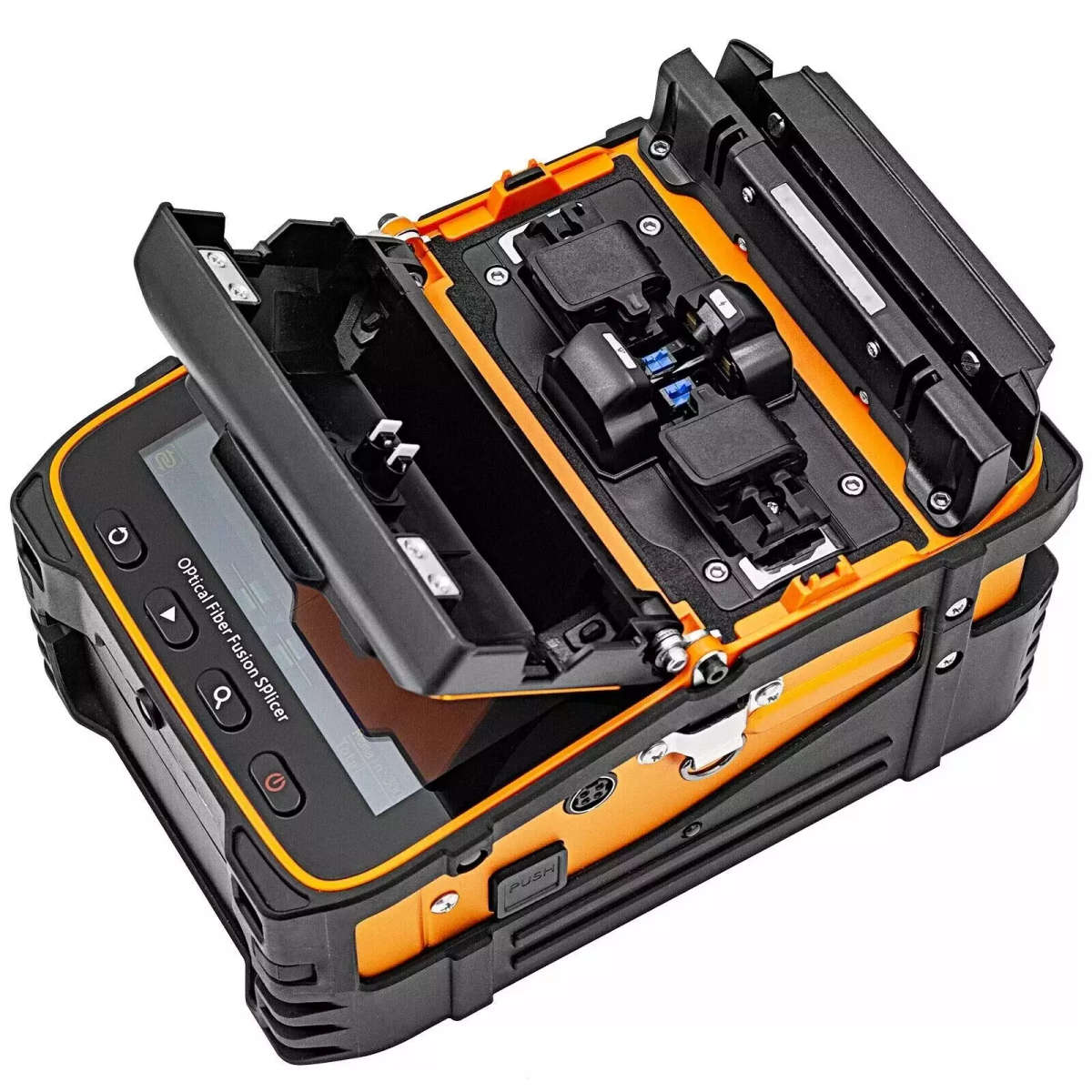

Fiber Fusion Splicer | AI-9 Splice Machine | 6 Motors | Power Meter VFL | Rechargeable Lithium Battery

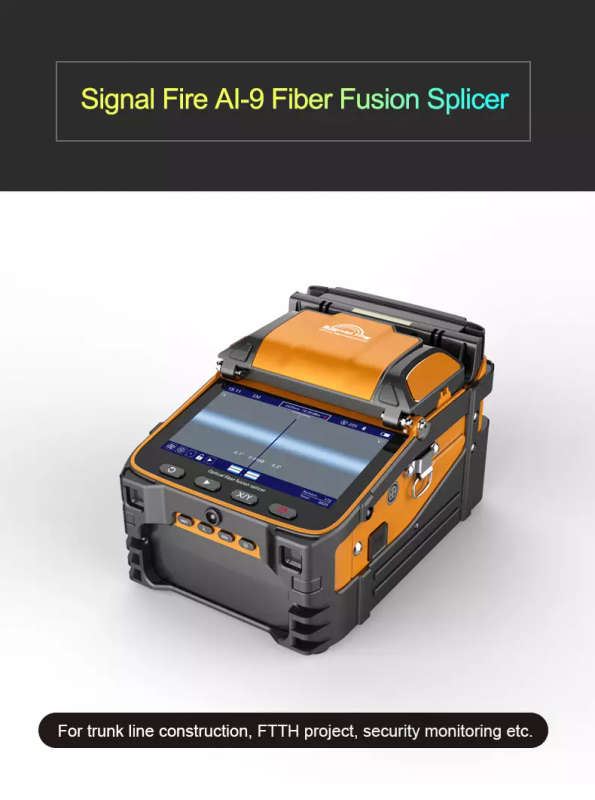

The AI-9 Splicing Machine use the latest fiber core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicers. It is fully qualified for trunk construction of medium and short distances fiber, FTTH projects, security monitoring and other fiber cable splicing projects.

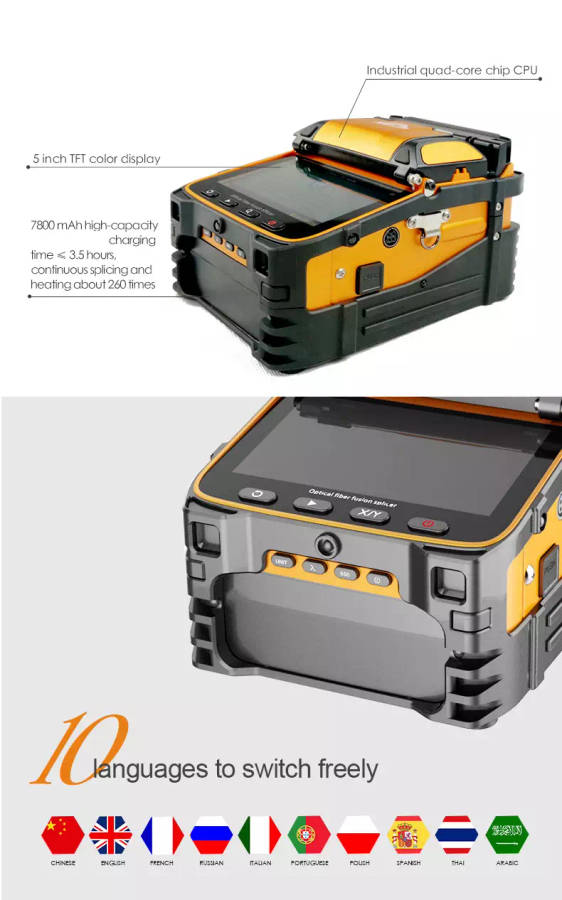

The machine uses an industrial quad-core CPU, fast response and is currently one of the fastest fiber splicing machine in the market. It includes a 5-inch 800 x 480 resolution screen, operation is simple and intuitively navigated via the menu; and up to 300 times focus magnifications to check the fiber cores clearly.
Splicing Speed:
- 5 seconds speed core alignment splicing
- 15 seconds heating
- Efficiency increased by 50% compared to ordinary splicing machines with less motors.

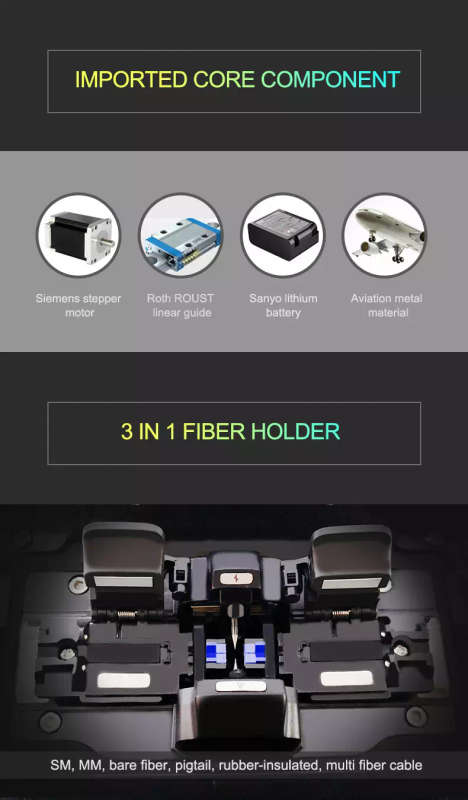

Screen brightness is adjustable and it is convenient for outdoor direct sunlight operation. The core parts are high quality chipsets, aviation metal body material with exquisite details.

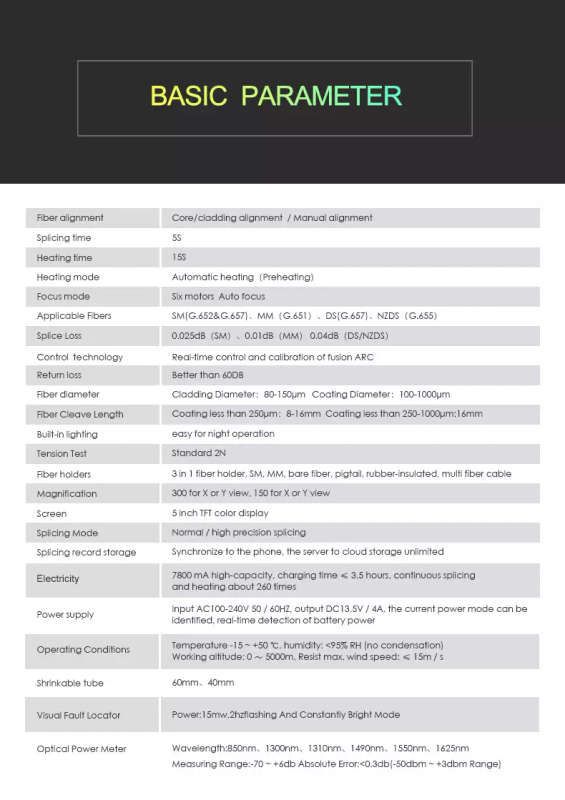

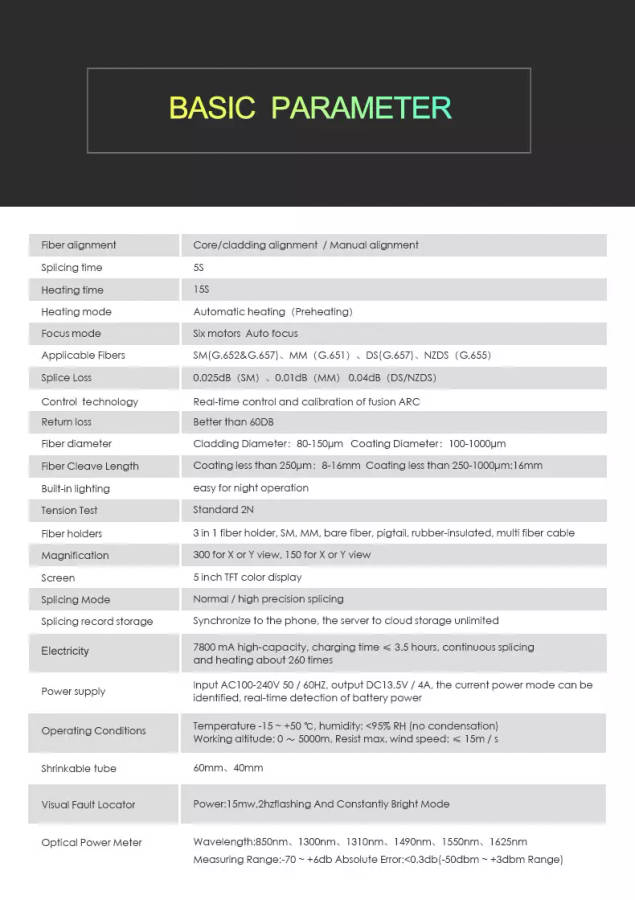

Features:
- 800X480 high-resolution screen
- Splice Loss: 0.025dB (SM), 0. 01dB (MM) 0. 04dB (DS/NZDS)
- 6 Motor Core Alignment (50% faster than 2 & 4 motor splicing machines and more accurate alignment with less attenuation losses)
- 300X Magnification

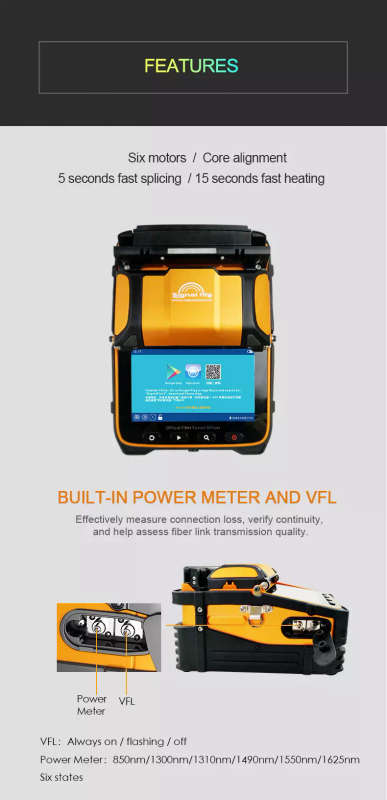

- Built In Power Meter (850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm)
- Built In Visual Fault Locator (15mW)
- 7500mA Battery (3.5 hours operation up to 260 splices)
- 5 seconds splicing time & 15 seconds heating
Compatible Fibers:
- Single Mode SM(G. 652 & G. 657 A1/A2)
- Multi Mode MM (G. 651)
- Dispersion Shifted Fiber DS(G. 657)
- Non-zero dispersion-shifted fiber NZDS (G. 655)
