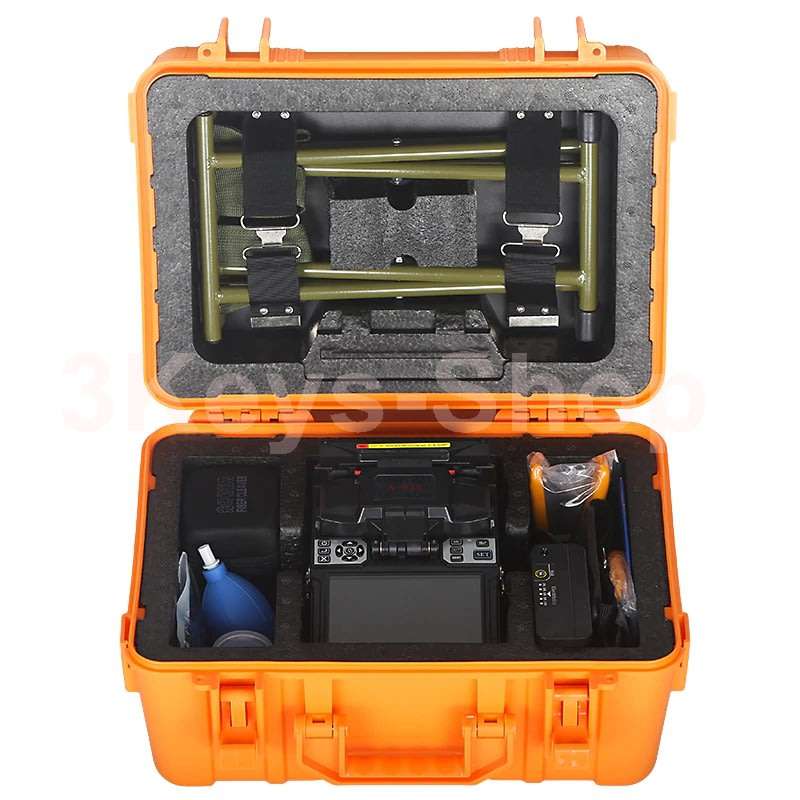

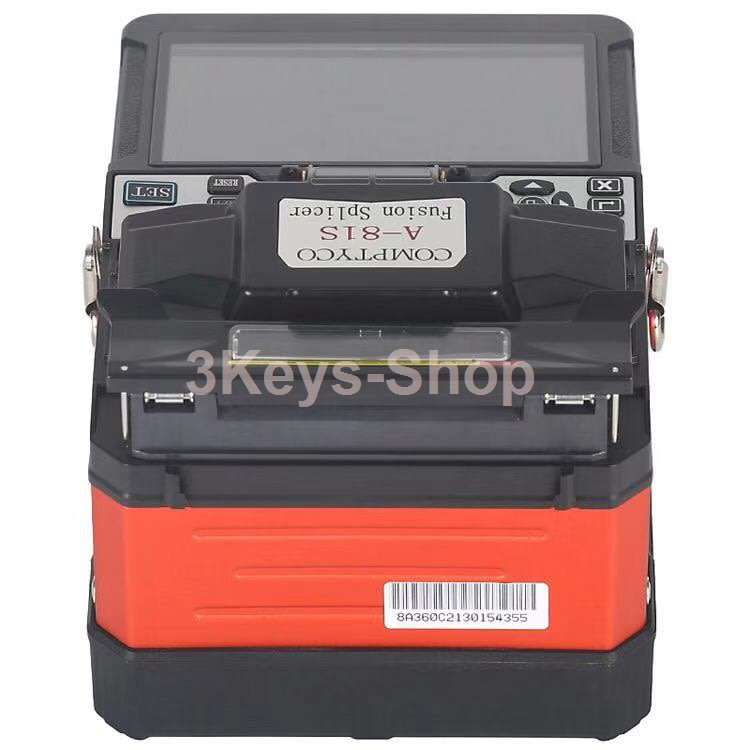

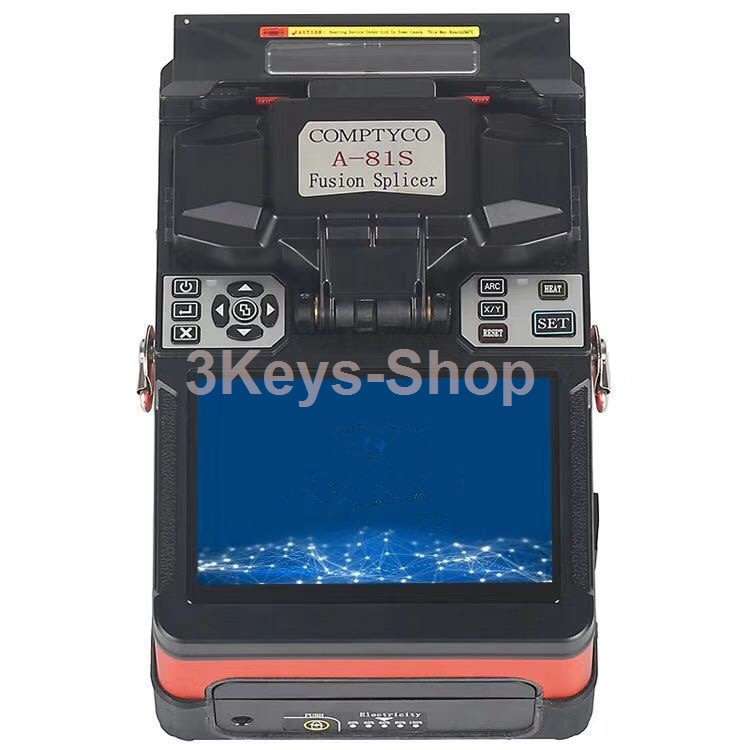

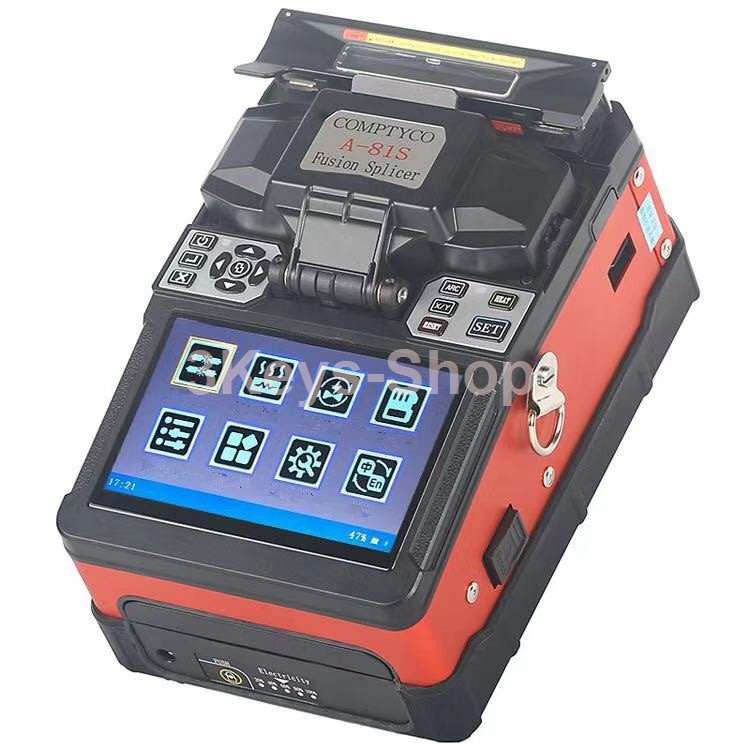

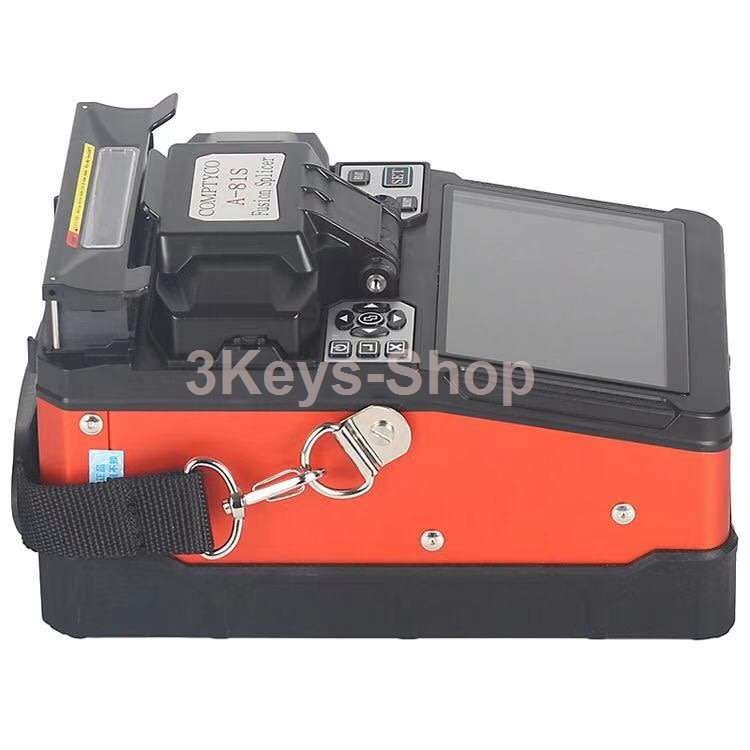

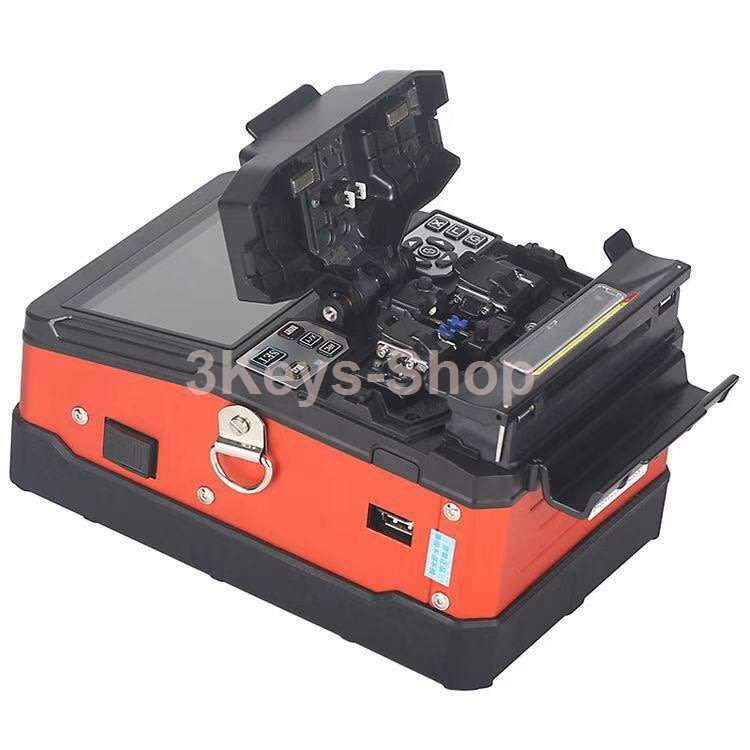

Fiber Fusion Splicer Automatic Focus A-81S FTTH Fiber Precision Optical Fusion Splicer Kit

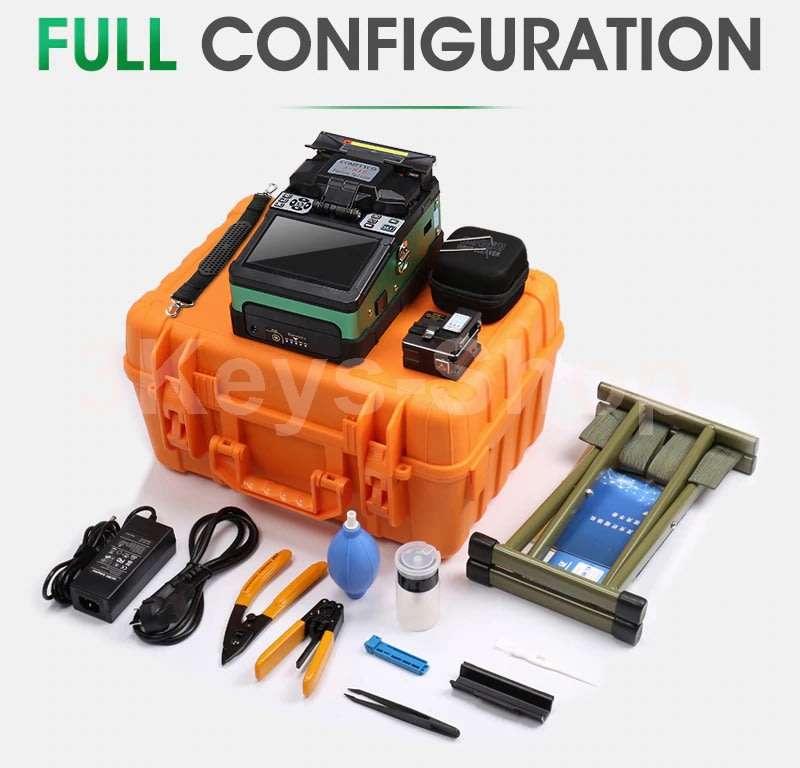

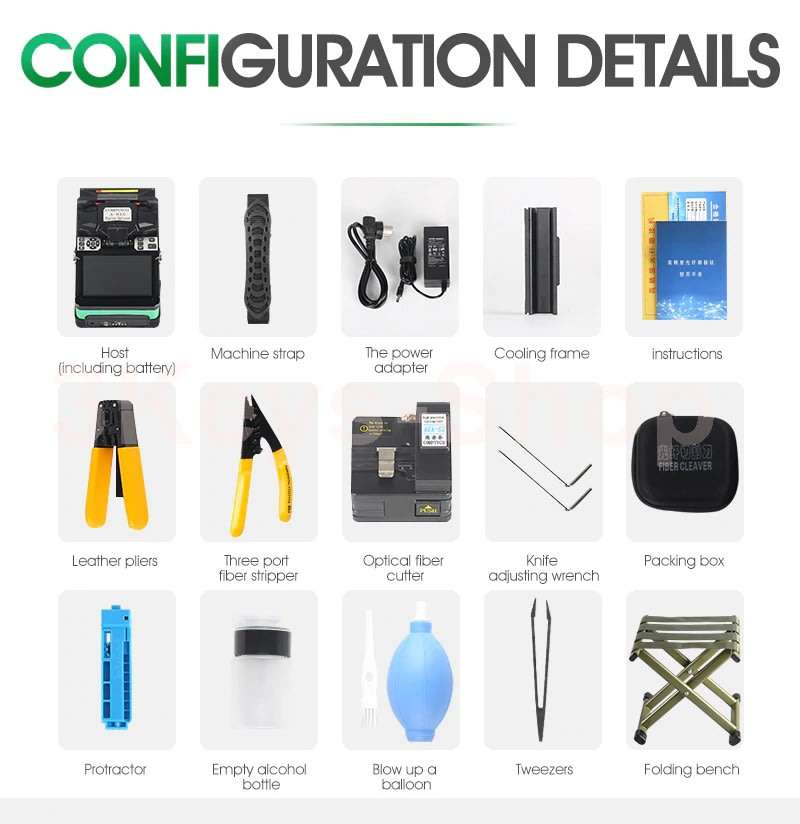

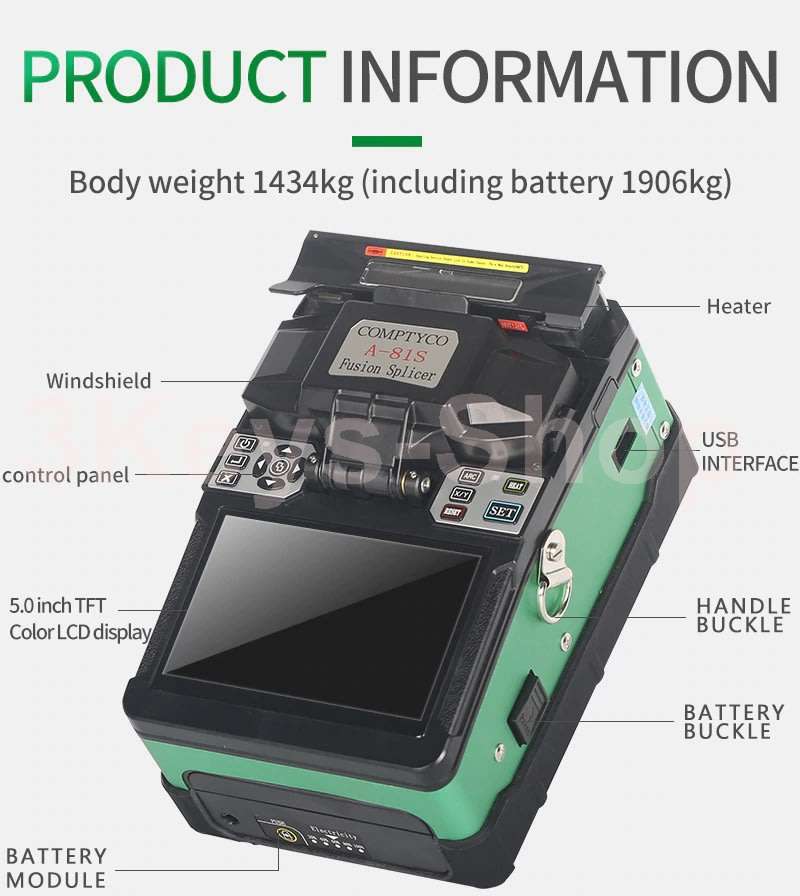

 Fiber Fusion Splicer Automatic Focus A-81S FTTH Fiber Precision Optical Fusion Splicer Kit 5 Inch TFT Digital LCD Screen Fusion Splicer Machine Optical Fiber Cleaver Kit

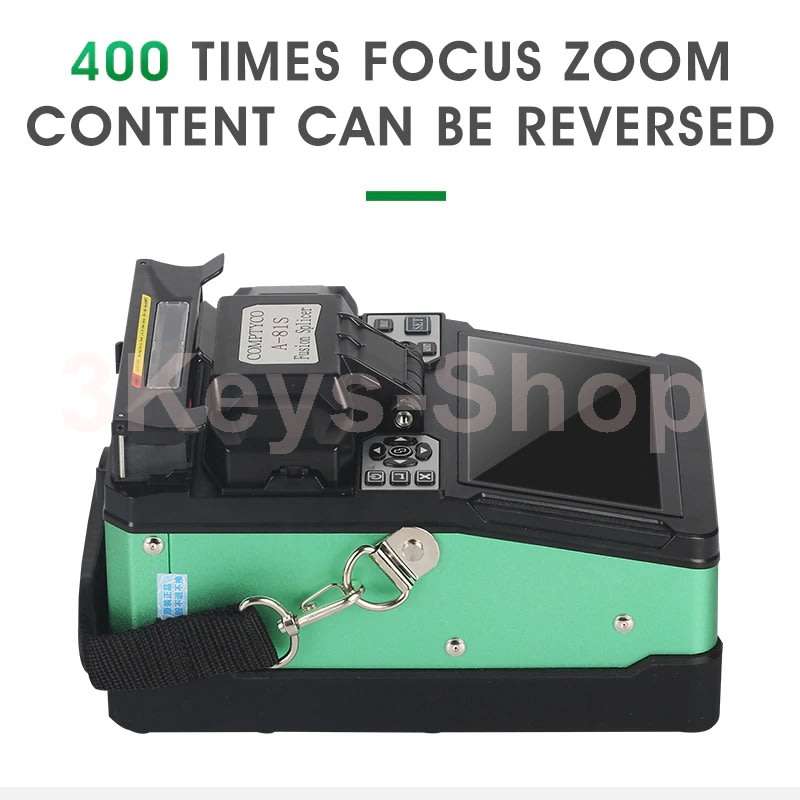

We offer you a superior A-81S fusion splicer with splicing mode of 17 groups of operation, heating mode of 9 groups of operation, amplification factor of 300 times (X axls or Y axls).

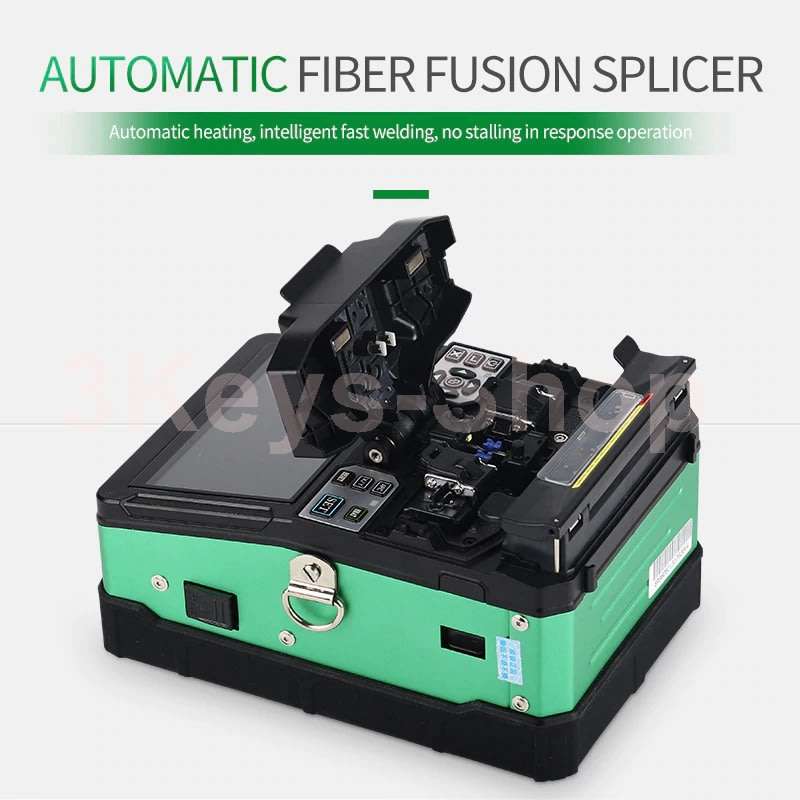

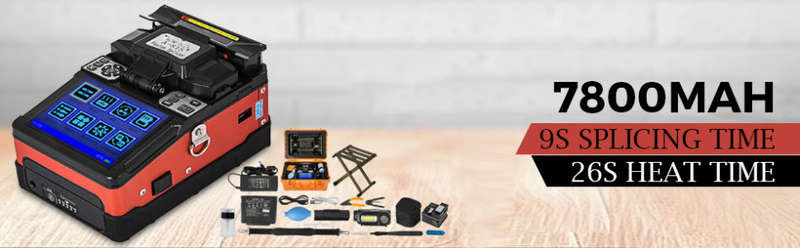

The high-precision fusion splicer, with high-speed image processing technology and special precision positioning technology, can complete the whole process of fiber fusion splicing automatically in 9 seconds.

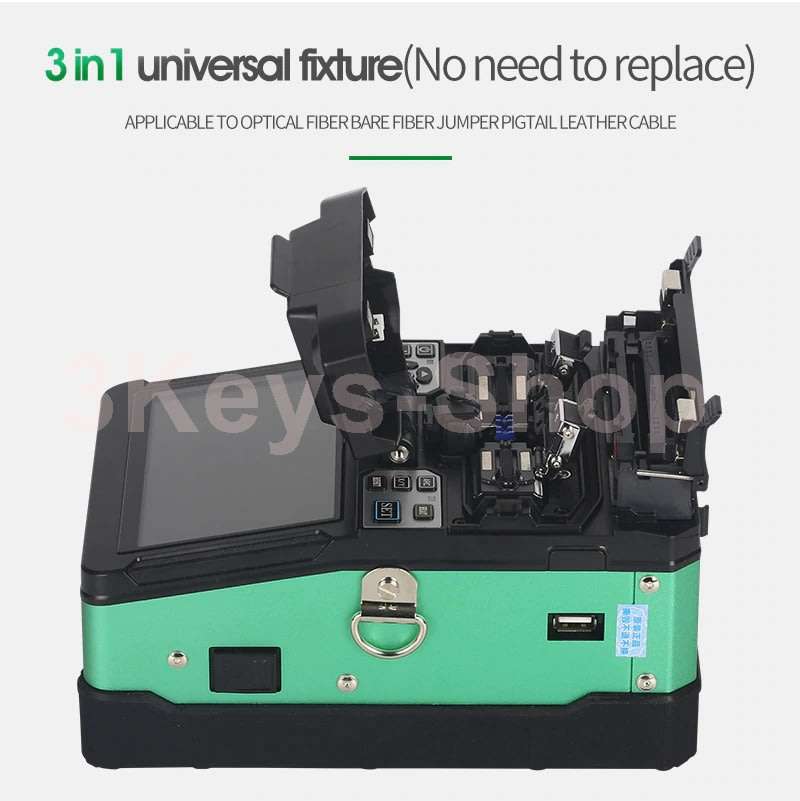

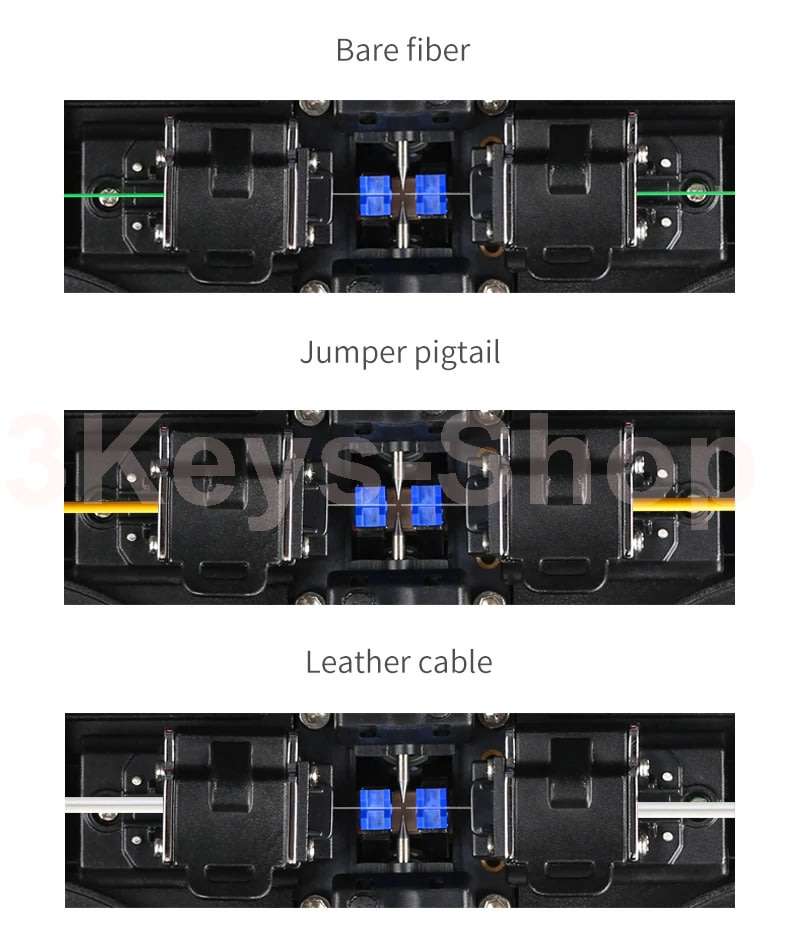

Characterized by light weight, easy to carry and convenient to operate, fast splicing speed and low loses, it is especially suitable for optical fiber and cable projects, maintenance scientific research and teaching in telecommunications, radio and television, railway, petrochemical, electric power, military and public security and other communications fields. This machine is mainly used for the connection of optical fibers, which can be further connected with ordinary optical fiber cables, jumpers and multiple single-mode, multi-mode and dispersion-shifted quartz optical fibers with a cladding diameter of 80um-150um.

Technical

Splicing loss: 0.02dB(SM), 0.01dB(MM) 0.04dB(DS/NZDS)

Return loss: Better than 60DB

Optical fiber alignment: Precise alignment, fiber core alignment, cladding alignment

Optical fiber diameter: Cladding Diameter 80~150um, coating layer diameter 100~1000um

Cutting length: Coating layer below 250um: 8~16mm; coating layer 250~1000um: 16mm

Tension Test: Standard 2N

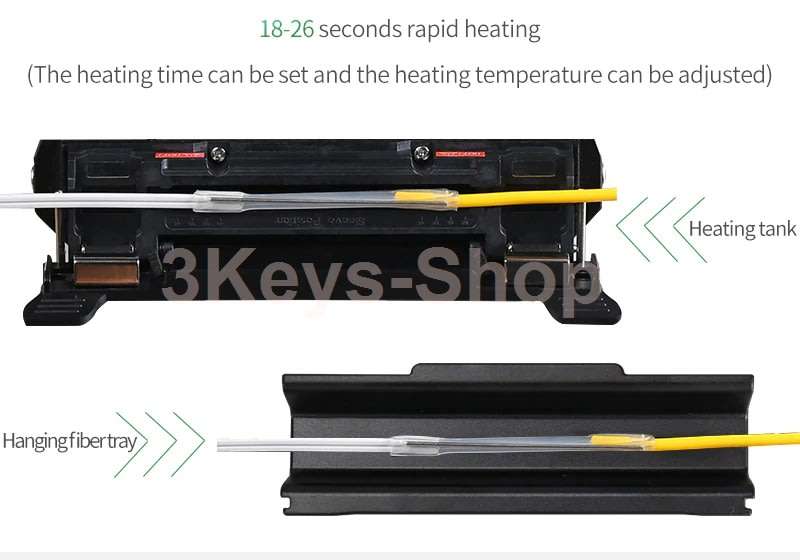

Heat shrink bush: 60mm, 40mm and a series of miniature bush

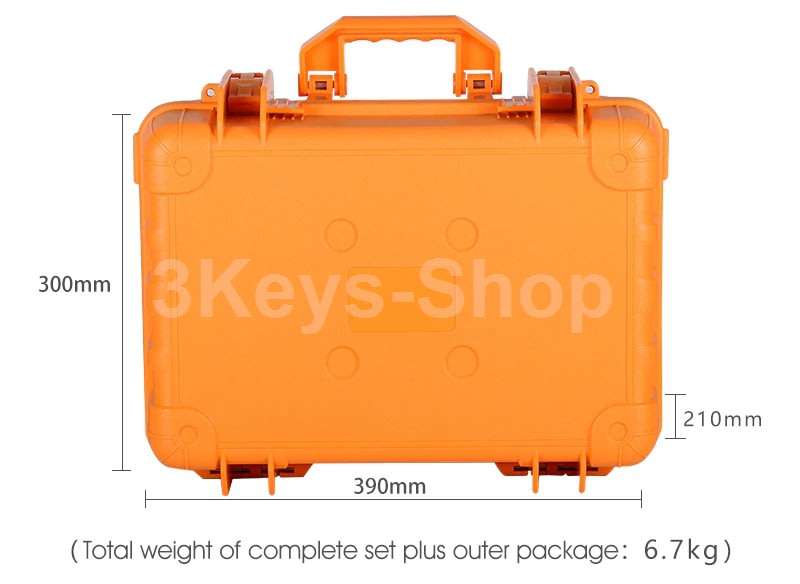

WEIGHT: 6KG
