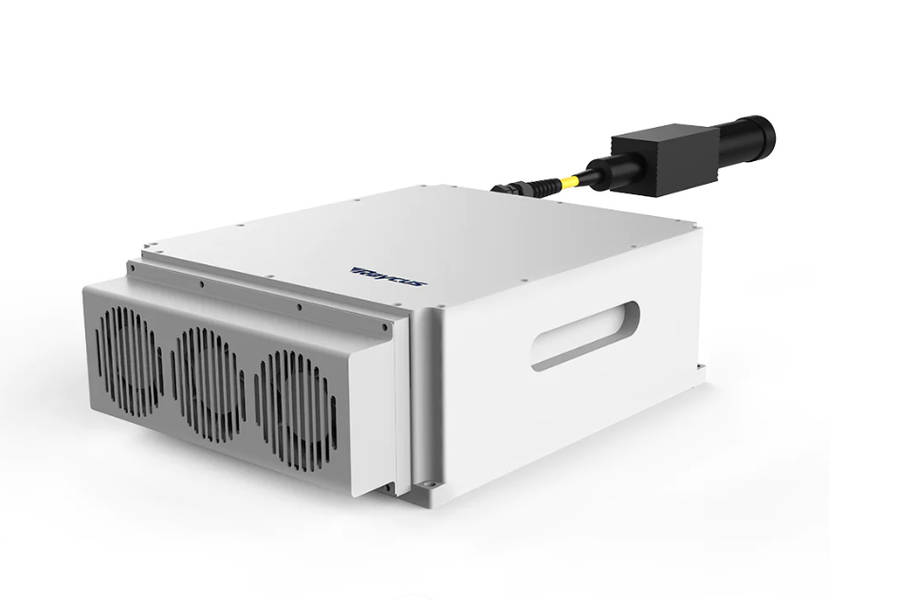

Fiber Laser Source QB-Switched 50W - Raycus
Product Description
Raycus pulsed laser is an ideal high-power laser source with high speed and high efficiency. It is specially designed for industrial laser-making systems and other applications. Compared with traditional lasers, the pulsed laser has some unique advantages in increasing the conversion efficiency of the pump light 10 times higher. Its low power consumption and automotive design make it appropriate for operating both in and outside the lab. Besides, it is exquisite and convenient for its independence in placement, free time in use, and facility to connect to equipment directly. The device can emit 1060~1085nm wavelength pulsed light under the control of an industrial laser's standard interface driven by a 24V DC power source.
The pulsed laser should be driven by a 24V DC±1V power source.
- Caution: Make sure the corresponding wires of the device are properly grounded.
- All the maintenance to the device should only be done by Raycus because there is no replacement or accessory provided with the device. Please do not try to damage the labels or open the cover to protect against electric shock, or the warranty will be invalid.

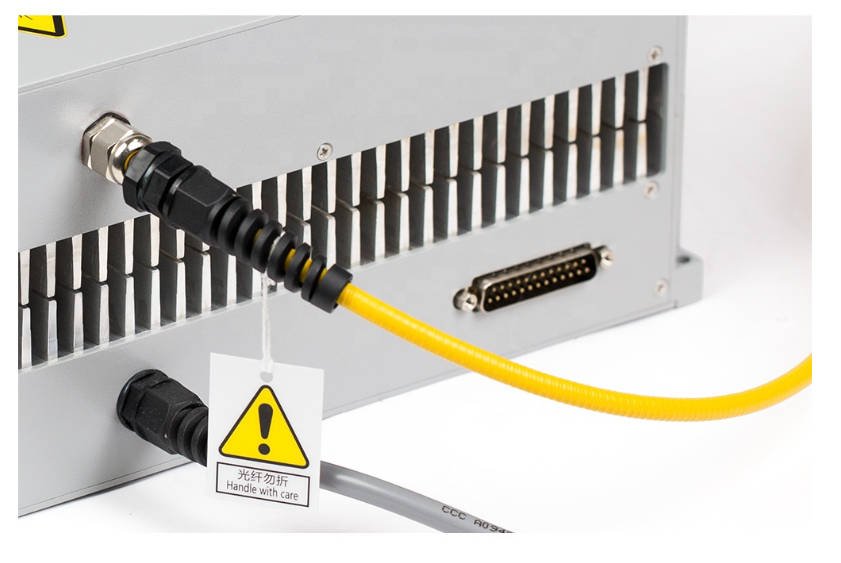

- The output head of the product is connected to an optical cable. Please be careful handling the output head. Avoid dirt and any other contaminations. Please use the specialized lens paper when cleaning the lens. Please lid the laser with the protective cover of the light isolator to be against dirt only when the laser is not installed in the device or not working.
- If the operating device fails to follow this instruction, the protective function will be weakened. Therefore, it should be used under normal conditions.
- Do not install the collimating device into the output head when the laser device is working.
- The device has three cooling fans at the rear panel to dissipate heat. To guarantee enough airflow to help give heat off, there must be a space of at least 10 cm width for airflow in the front and rear sides of the device. As the cooling fans are working at blow condition, if the laser is mounted in a cabinet with fans, the direction should be the same as the laser's fans.
- Do not look into the output head of the device directly. Please wear appropriate laser safety eyewear when operating the device.
- Make sure the pulse repetition rate higher than 20kHz.
- For the longest time without a pulse is only 50 x 10-6s. If there is no pulse output, please stop marking at once, to avoid further damage to the device.
- Power source sudden interruption will do great harm to the laser device. Please make sure the power supply works continuously.
Product Specifications
- Brand: RAYCUS
- Power: 50W
- Central wavelength: 1064nm
- Output Power Stability <3%
- Polarization State: Random
- Max Single Pulse Energy(mJ)11111
- Delivery Cabel Length(m): 2
- Power supply: 24V
- Power range:10-100
- Dimensions(mm)391*260*120
- Cooling: Forced Air
- Operating Temperature: 0-40
- Weight: 20KG
The fiber laser marking machine can mark all types of metals and alloys, Listed below are some of the materials:
Please confirm stock availability on order.
