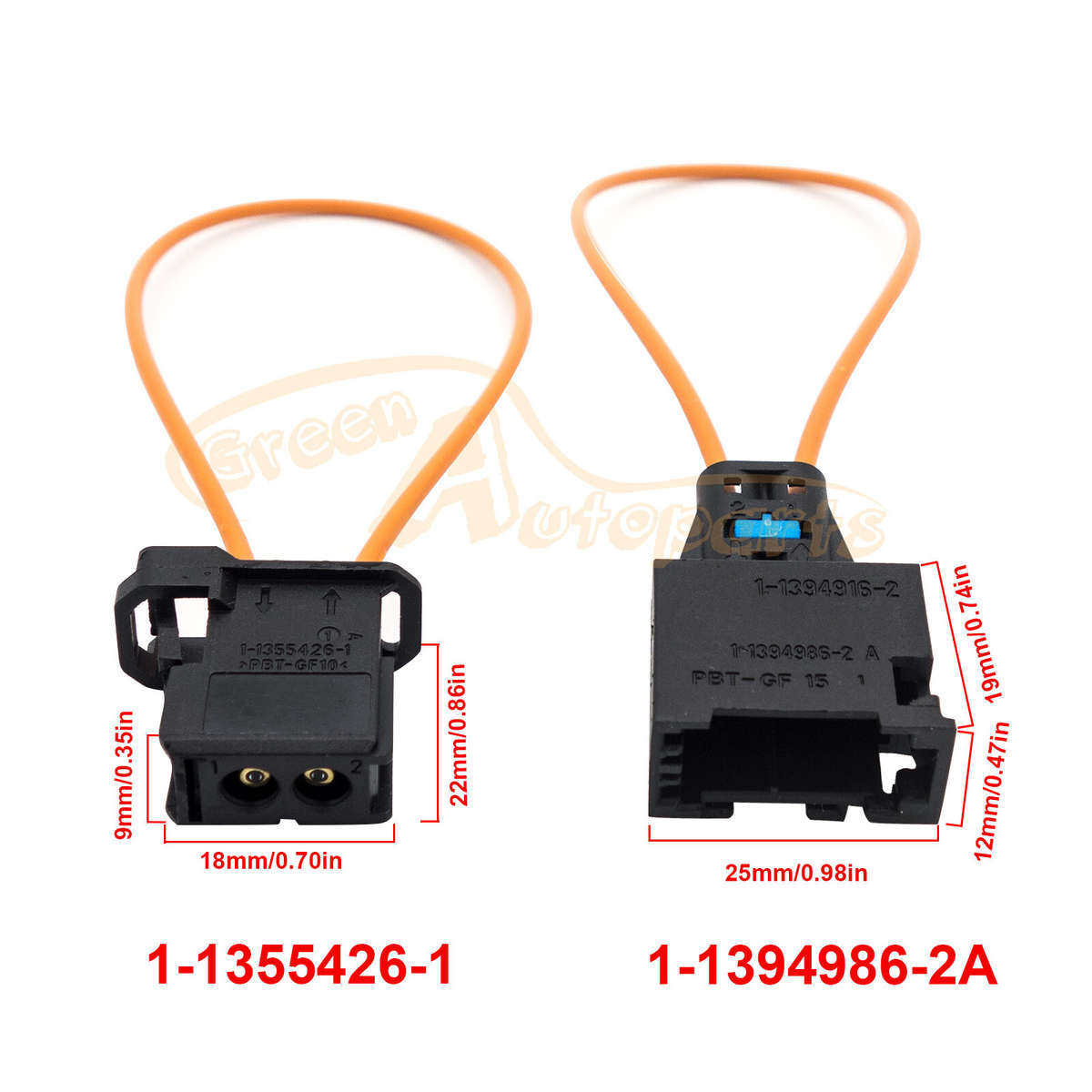

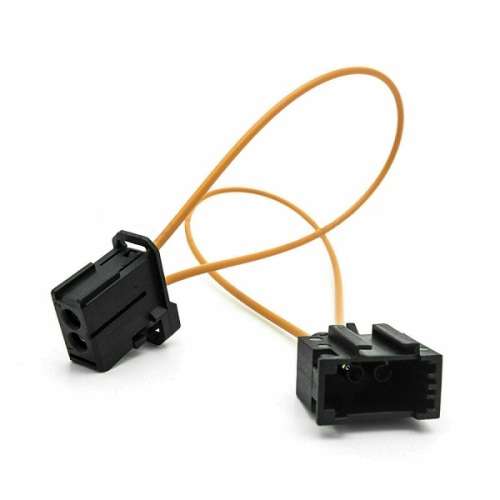

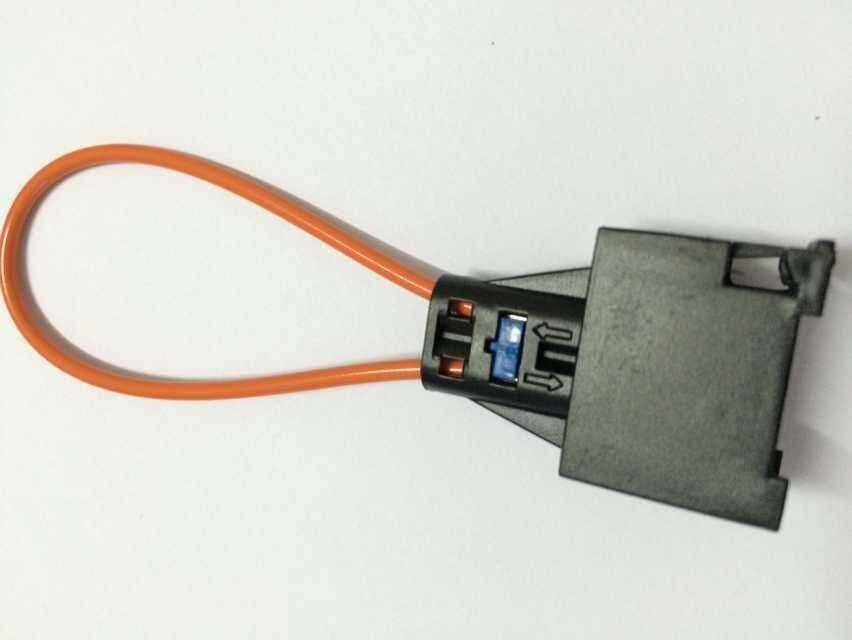

Fiber Optic Bypass Loop, Male & Female Plugs - Vehicle MOST Fault Diagnostic Kit

Vehicle MOST Fault Diagnostic Kit - Fiber Optic Bypass Loop, Male & Female

Compatible: German cars like Mercedes-benz VW, BMW, Audi, Porsche, And More

Specification:

Brand new and high quality

Stable characteristics, high reliability.

Material: Plastic

Size:    11.5cmX2.5cmX1.2cm(LXWXH)

Color Black

Feature:

1.The MOST Diagnostic Kit to help you to quickly find the fault point, whether it is the problem of the motherboard transceiver, or cable connection problems

2.The optical fiber loop can remove or add a single vehicle equipment, and do not affect the car fiber-optic network

3.It also can diagnose and find fault point when a node in the MOST (Media Oriented Systems Transport)

4.Bluetooth phone module was often damaged when opening stereo the sound intermittently, sometimes no sound, the fiber head of the phone module

can be pulled out, connected to the fiber loop, deactivate the Bluetooth phone function, audio immediately return to normal.

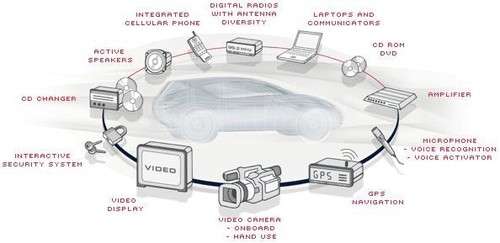

5.The modules connected on a vehicle M.O.S.T ring include: CD Changer, Video Display, GPS Navigation, Mobile Phone, Bluetooth, Voice Recognition, Amplifier and Digital/FM/AM Tuner.

6.If you wish to remove one of these modules from the fiber optic ring for repair or fault diagnosis you will require this male Tyco (TE) connector / adapter and fiber optic bypass loop cable to close the M.O.S.T ring and maintain the integrity of the remaining modules on the ring.

Package Include

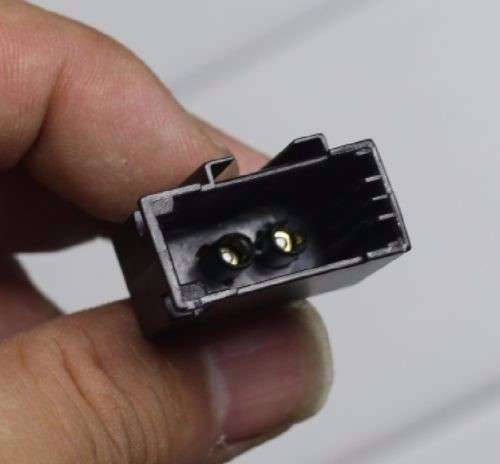

1x Male Connector

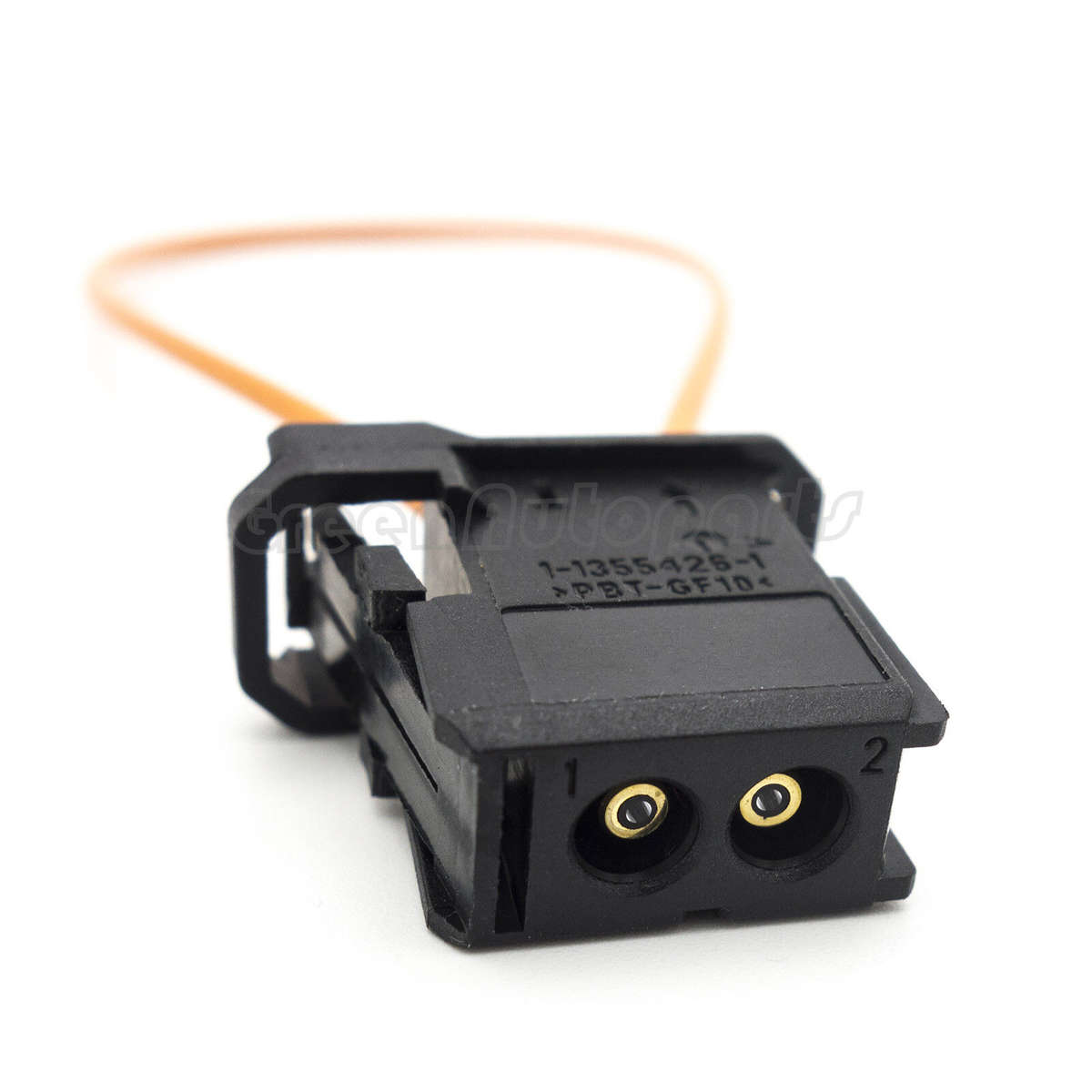

1x Female Connector
