Fiber Optic Cable Tester / Light Meter Tester with Display Screen - Can Test FC,ST and SC Cables

Fiber Optic Cable Tester / Light Meter Tester with Display Screen - Can Test FC,ST and SC Cables

Product Overview

This Portable optical power meter is an accurate and durable handheld meter designed for the installation, operation and maintenance of optical fibre networks. It is a compact device with backlight switch and auto power on-off ability. It provides ultra-wide measurement range, high accuracy, user self-calibration function and universal port for SC,ST and FC Fiber cables. In addition it displays linear indicators (mW) and non-linear indicators (dBm) in one screen at the same time.

Fiber Light Meter Tester usage and instructional Video

?v=AppE4OvSYD8

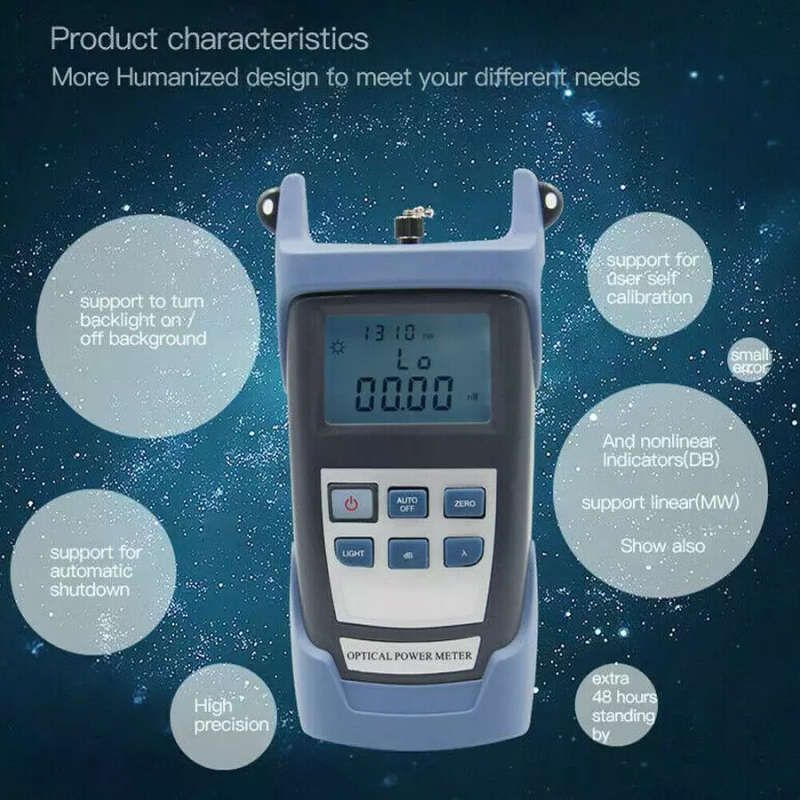

Features

• Self calibration.
• Rechargeable lithium battery supports continuous work for up to 48 hours (No Batteries included uses 3 x AA Rechargeable Lithium or Alkaline Batteries)
• Linear indicators (mW) and non-linear indicators (dBm) display in one screen
• Unique FC/SC/ST universal port
• Optional auto power-off ability
• Backlight ON/OFF

Specifications

• Model:
• Measurement range: -70～+6 -50～+26
• Range of wave length 800～1700
• Uncertainty ±5% Standard wave length (nm) 8509801300131014901550
• Resolution Linear indication: 0.1%
• Logarithmic indication: 0.01dBm
• Working temperature: () -10～+60
• Auto power-off time: 10min
• Continuous working hours: around 48 hours, depends on batteries used mA
• Dimensions (mm): 190×100×48
• Power supply: AA Rechargeable lithium battery or AA Alkaline Batteries x 3
• Weight :400g
