The Fiber optic SC Connector is commonly used with the Fiber Optic cable below
/cut-to-length-per-1-meter-optical-fiber-cable-for-networks-fiber-hdmi-extenders-3mm-singlemode-g652d-spec-9-125um-micron-patch-cord/
?v=0q_qx1n7sXY

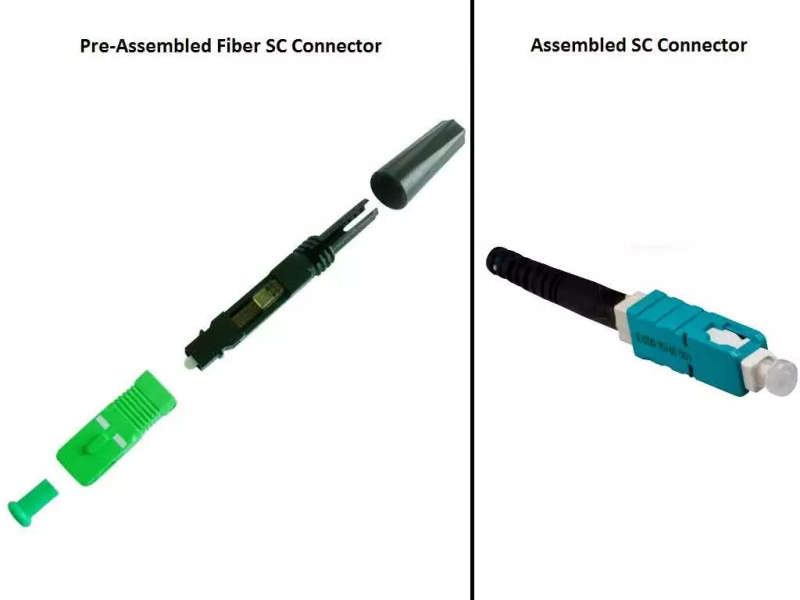

The SC Connector is field install-able and can be done without the use of costly tools. Please use the appropriate fiber tools we sell on the website to fit the SC Connector to the fiber optic cable.
Features of SC Connector:
1. FTTH (Fiber-to-The-Home) and FTTP (Fiber-to-the-premises) project usable
2. Field installable
3. Fast, easy, accurate
4. Cost effective
5. Portable
6. Installation less than 2 minutes
7. Reliable and superior optical performance
Application:
1. HDMI over Fiber Extenders
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH / FTTP Outlets
| Cable Compatibility | 2mm/ 3mm cable |
| Optical fiber diameter | 125 m (652 & 657 Type Cable) |
| Tight buffer diameter ( m) | 900 m |
| Fiber mode | Single & multi mode |
| Installation time | within 120s ( no fiber cut ) |
| Insert loss | 0.1dB(1310nm & 1550nm) |
| Return loss | -40dB |
| Fastening strength of naked fiber | > 5 N |
| Fastening strength of naked fiber holder | > 10 N |
| Tensile strength | > 50 N |
| Using temperature | -40~+75 |
| On-line tensile strength (20 N) | IL 0.2dB RL 5dB |
| Mechanical durability (500 times) | IL 0.2dB RL 5dB |
| Drop-off test (drop-off height 4m, once per direction, totally 3 times) | IL 0.2dB RL 5dB |
