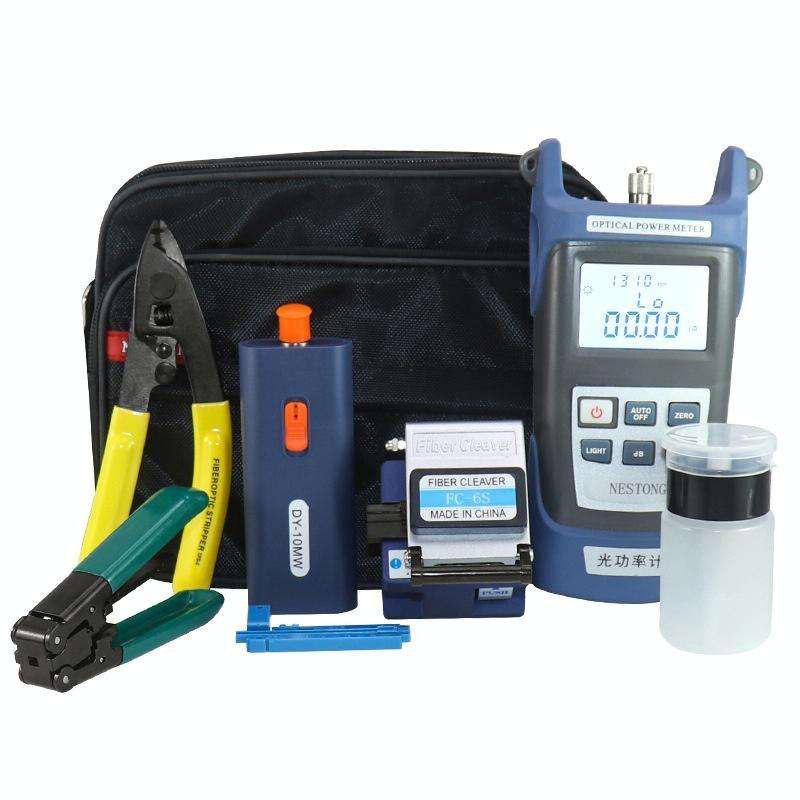

Fiber Optic Tool Kit With Cutter Cleaver Optical Power Meter 10mW Red Test Pen

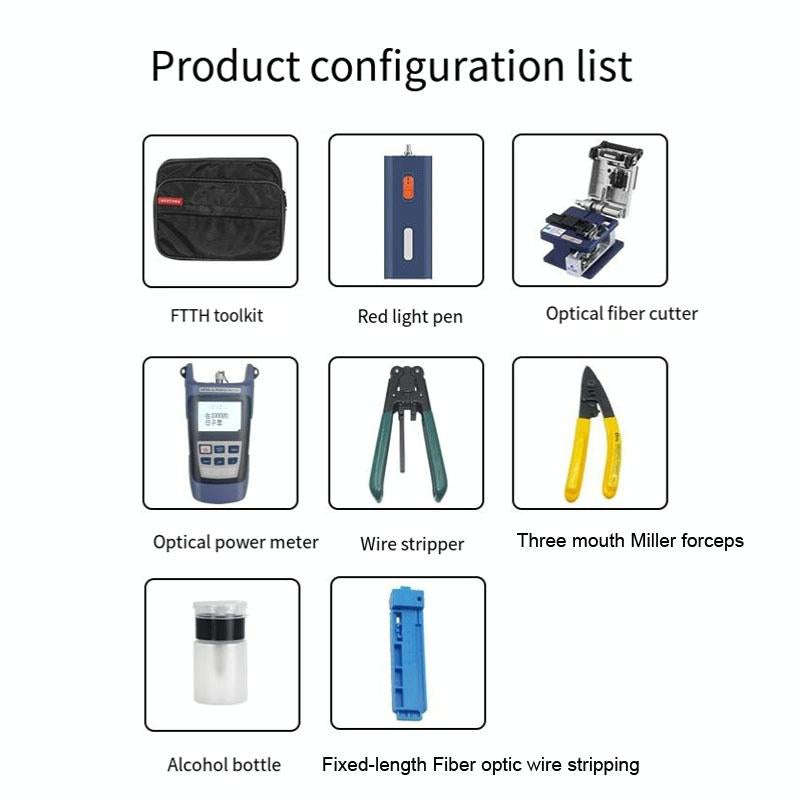

Tool kit list: FTTH tool kit, red light pen, fiber cutter, optical power meter, wire stripper, three-mouth Miller pliers, alcohol bottle, length fixer

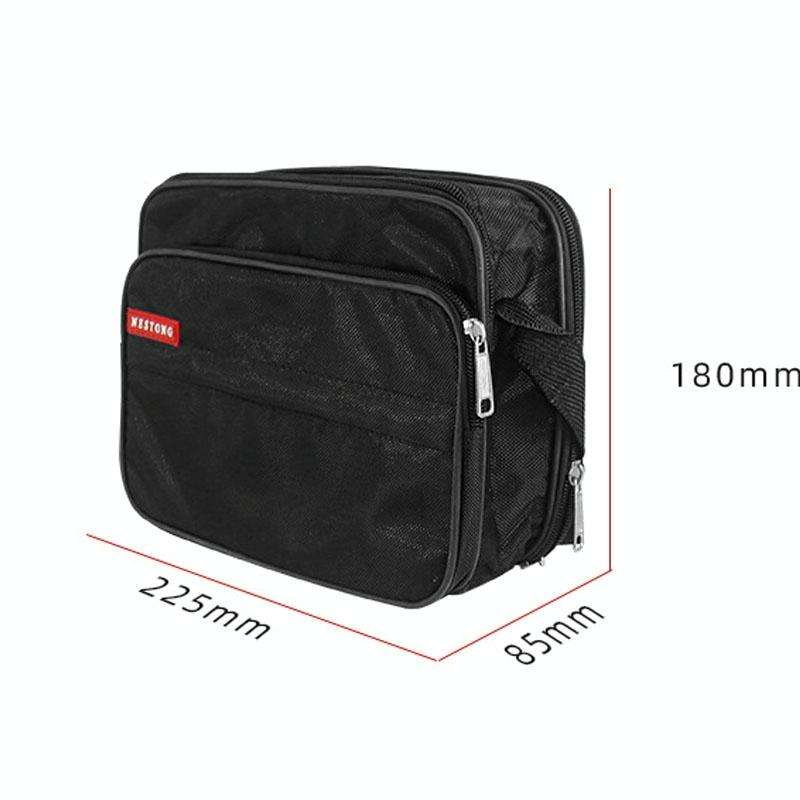

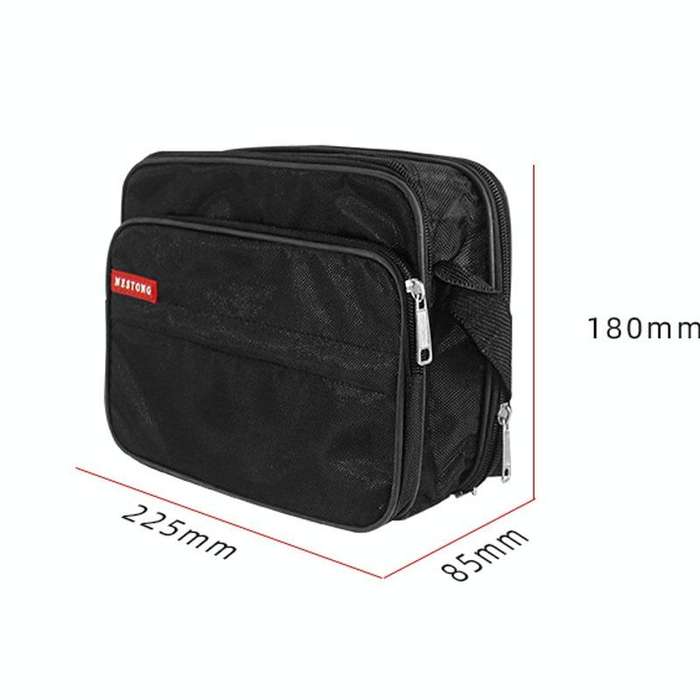

Toolkit parameters:
- Material: Oxford cloth
- Dimensions: 225 x 180 x 85mm
- Weight: 1303.5g (full configuration)

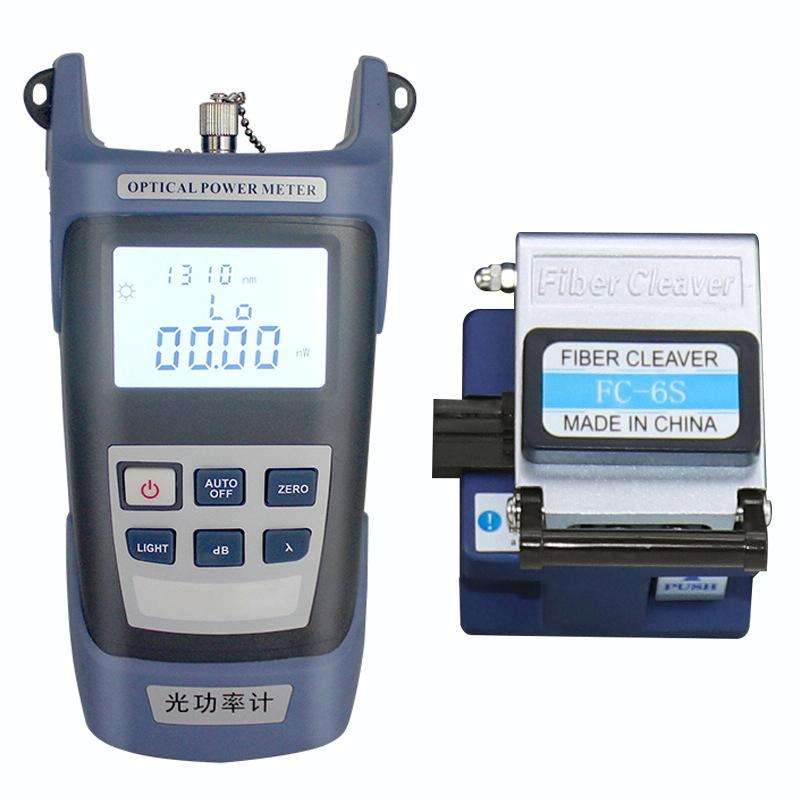

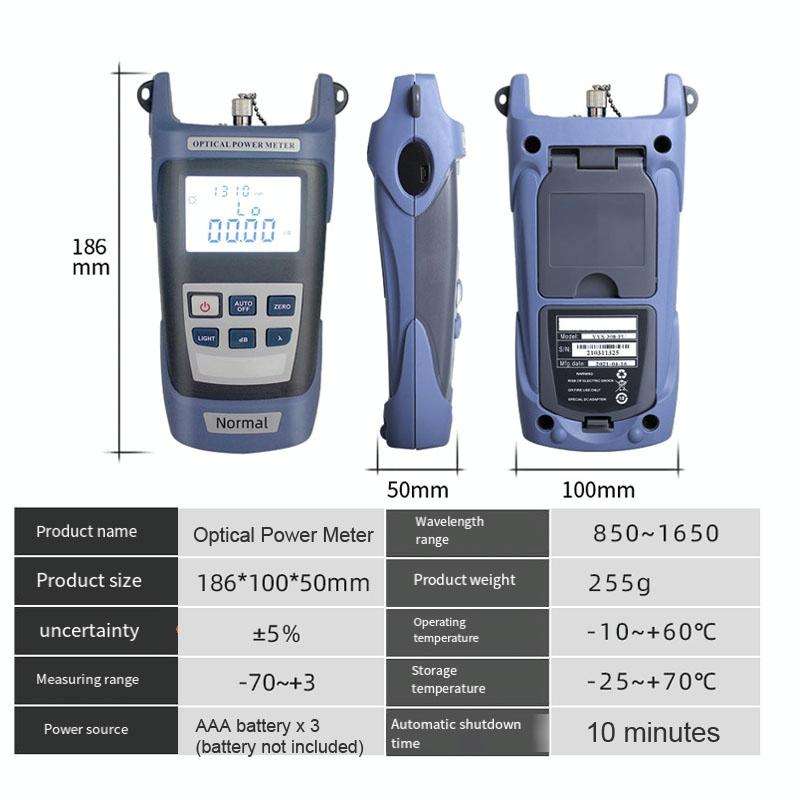

Optical power meter parameters:
-Wavelength range: 850~1650
- Uncertainty: +/-5%
- Working temperature: -10~+60 degrees Celsius
- Measuring range: -70~+3
- Storage temperature: -25~+70 degrees Celsius
- Power supply: AAA battery x 3 (battery not included in delivery)
- Automatic shutdown time: 10 minutes
- Product size: 186 x 100 x 50mm
- Product weight: 255g (bare metal)

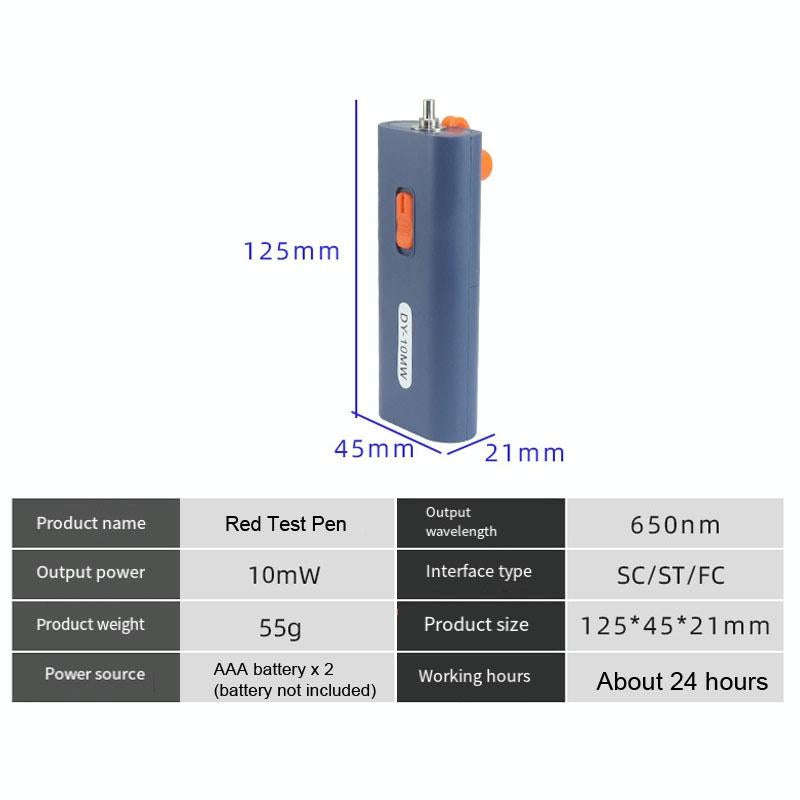

Handheld red light test pen:
- Output wavelength: 650nm
- Output power: 10mW
- Interface type: SC/ST/FC
- Power supply: AAA battery x 2 (battery not included in delivery)
- Working time: about 24 hours
- Product weight: 55g
- Product size: 125 x 45 x 21mm

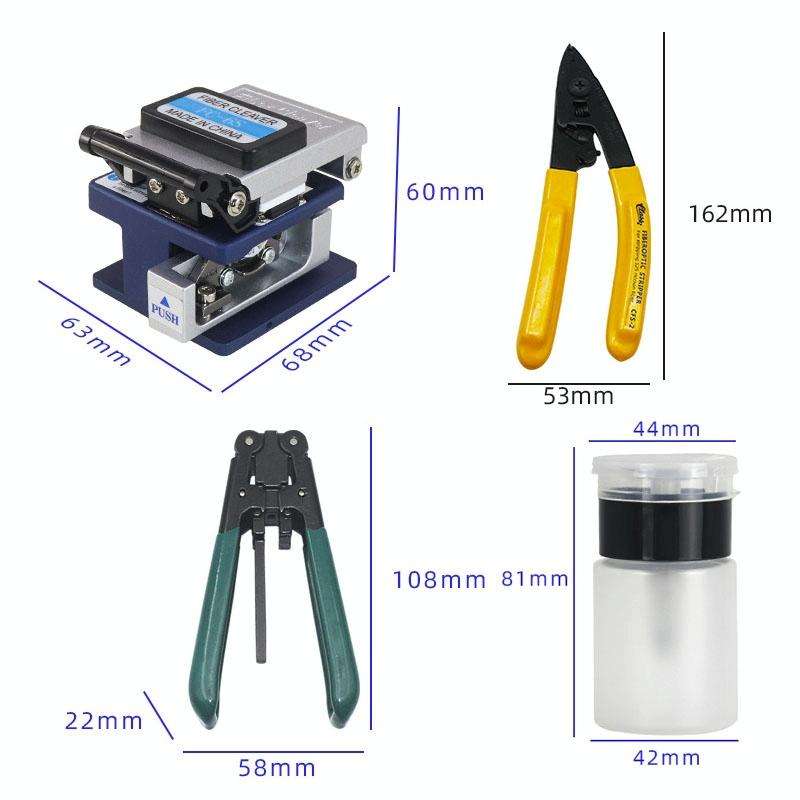

Fiber Cleaver:
- Cutting angle: 0.5 degrees
- Fiber diameter: 125m
- Blade life: 36000
- Product weight: 298g
- Product size: 68 x 65 x 60mm

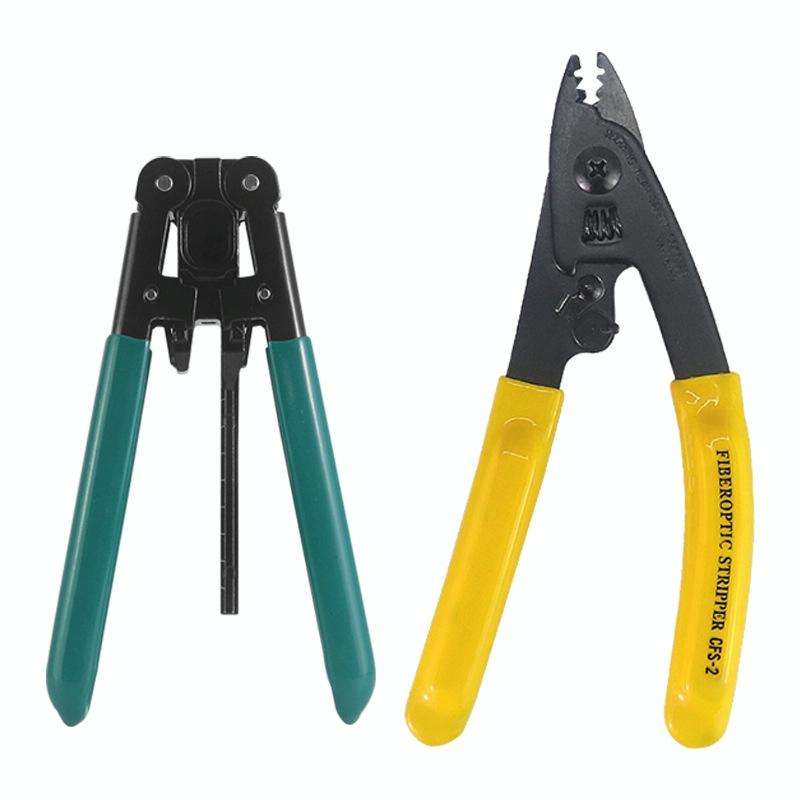

Cord stripper:
- Applicable area: 3.1 x 2.0mm
- Fiber diameter: 125m
- Number of fiber cores: 1~2 cores
- Product weight: 144g
- Product size: 108 x 58 x 22mm

Three mouth Miller forceps:
- Applicable area: 3.1 x 2.0mm
- Fiber cladding diameter: 250m coating
- Product material: metal
- Product weight: 121g
- Product size: 162 x 53mm

Press type alcohol bottle:
- Product capacity: 50ml
- Product structure: press leak-proof
- Product material: plastic (new HDPE)
- Product weight: 23.5g
- Product size: 81mm diameter 44mm
