Product features
|

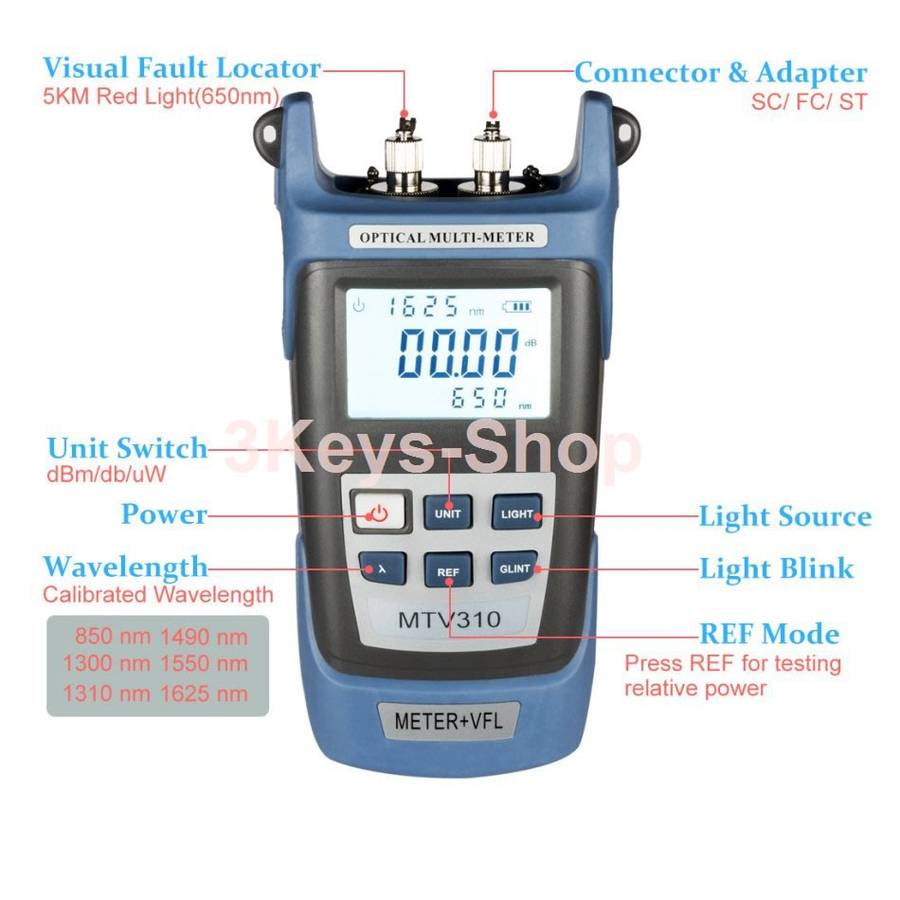

A reliable fiber optic power equipment is quite important in the era of high bandwidth. This hand held optic meter could help to inspect cables capabilities, calculate relative power loss, locate the fault and troubleshooting.
We dedicate to providing customers with practical fiber tools, which means that you have an affordable choice for the functional and constructive optic meter.
Specifications:
Calibrated Wavelength (nm): 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Detector: InGaAs
Measurement Range (dBm): -70 - +3
Input: DC 9V/1000mA
Resolution (dB): Linear 0.1% / Non-linear 0.01dBm

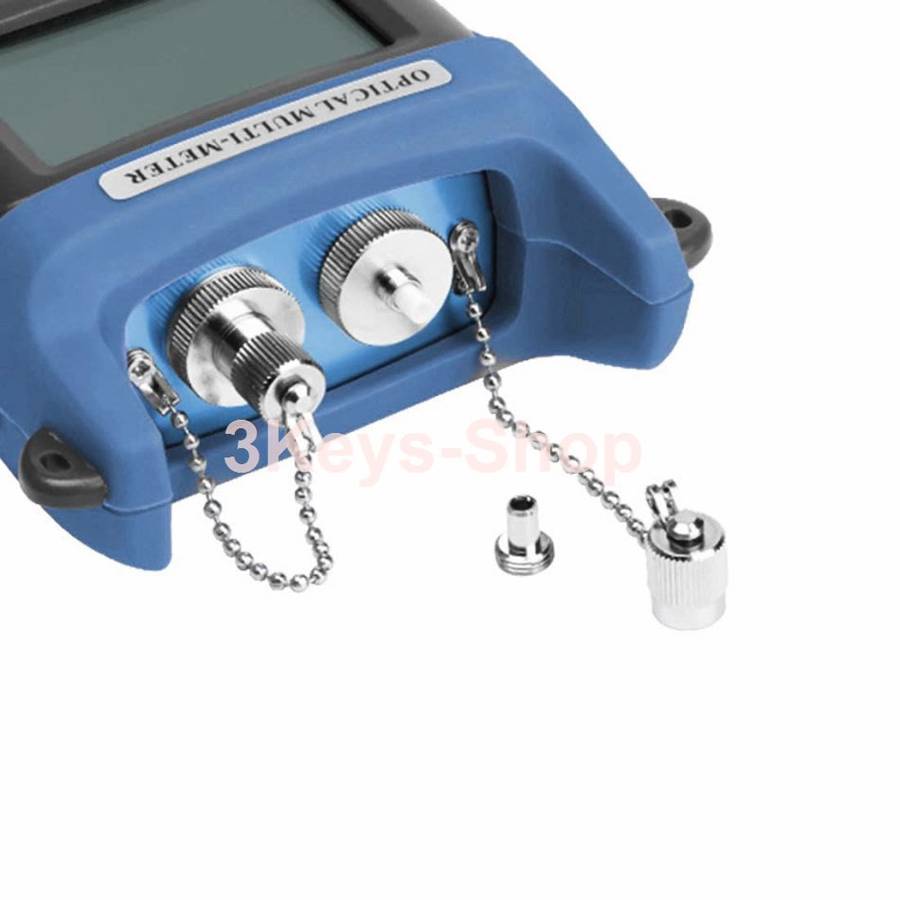

Connector: SC, FC, ST/ Universal 2.5mm Adaptor
Operating Temperature(C): -10 - +60
Storage Temperature(C): -25 - +70
Relative Humidity: 90% (+30C)
Working Hours: >48 hours
Size: 190mmx100mmx48mm/7.48inx3.94inx1.89in
Package Content:
1 x Optical Power Meter

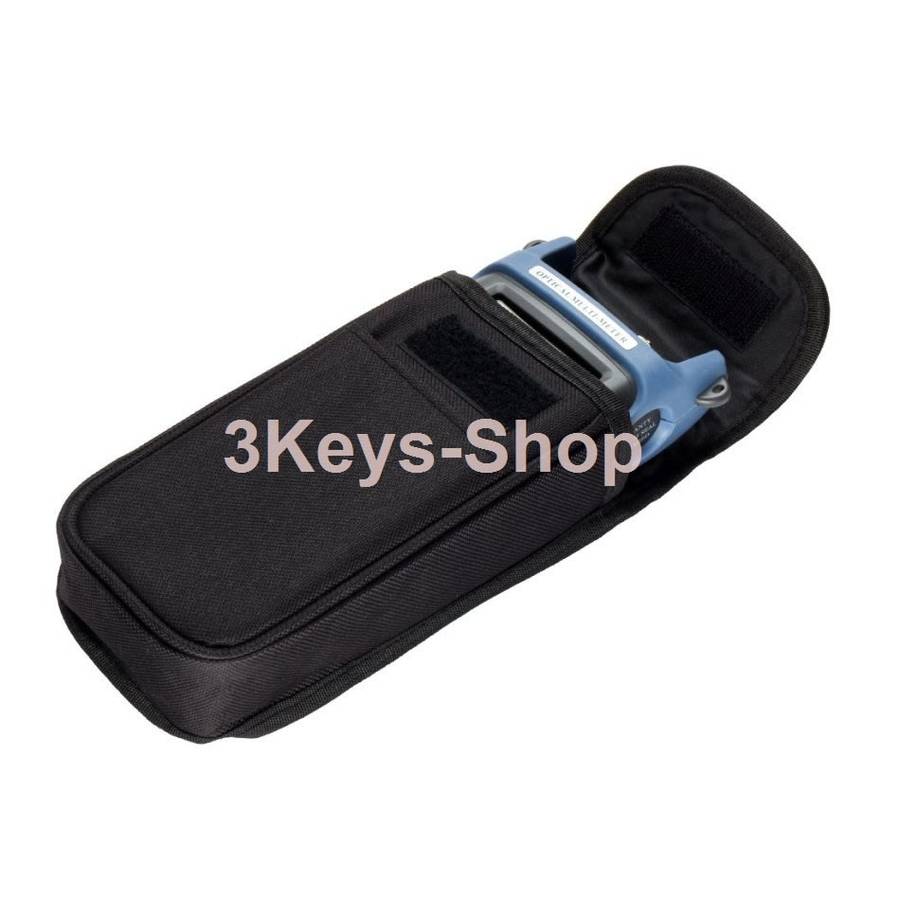

1 x Oxford Fabric Case
1 x User Manual
3 x AA Battery
1 x ST, FC, SC Connector
