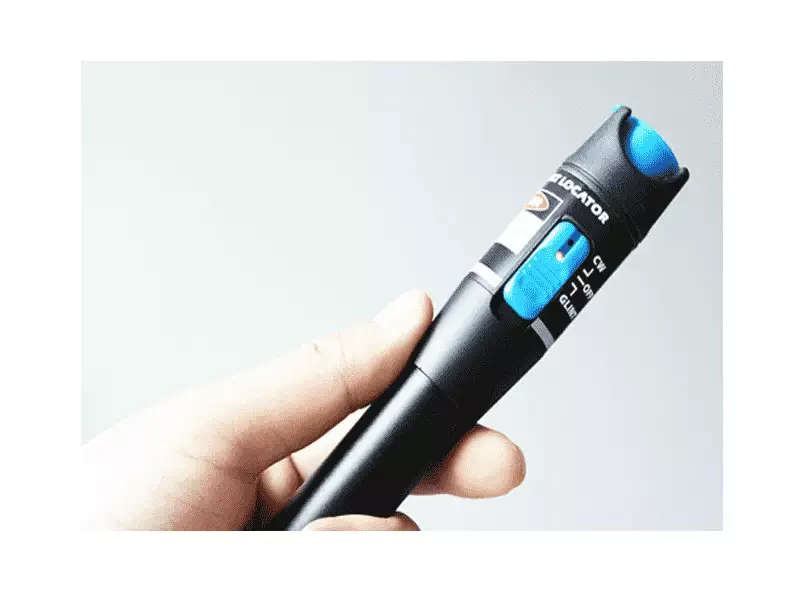

Fiber Visual Fault Locator Pen 10mW (Fiber Optical Light Pen) - Fiber Fault Trace Tool

Fiber Visual Fault Locator Pen 10mW (Fiber Optical Light Pen) - Fiber Fault Trace Tool

New 25 available
R476.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
Fiber_Locator_10mW
Bob Shop ID
592145343
Fiber Visual Fault Locator Pen 10mW (Fiber Optical Light Pen) - Fiber Fault Trace Tool

The Fiber Locator / Fiber Optical Light Pen 10mW is for fiber tracing, fiber routing and continuity checking in an optical network during and after installation. It includes finding the breakpoints, poor connections, bending or cracking in fiber optic cables.

Fiber Optic Pen Visual Fault Finder Instructional Video and Usage

?v=H5jGPOqQBJo

Features
  • 10MW Output power
  • Up to 10KM Testing
  • 2.5mm Universal Connecter
  • Portable and easy to use
  • Low battery Indicator

No Batteries Included

Specification:
TypeTL532 Pen-type   Visual Fault Finder
Central   Wavelength650nm+-10nm   (635nm can be required on request)
Emitter   TypeFP-LD
Output   Power10mW
Optical   Connector2.5mm   universal connector for test different ST, SC, FC interferes
Operating   ModelBoth CW and   Pulse available
Pulse   Frequency2~3Hz
Power   Supply2 x  AA alkaline batteries
Battery   Operating Time650nm 1mw >65hour 650nm 3mw>50hour 650nm 10mw>15hour

Test with   Panasonic LR6AAALKALINE battery

Operating   Temperature-10--+60 (oC)
Storage   Temperature-40--+70 (oC)
Dimension   (mm)15X180
Weight200g(Without battery)
