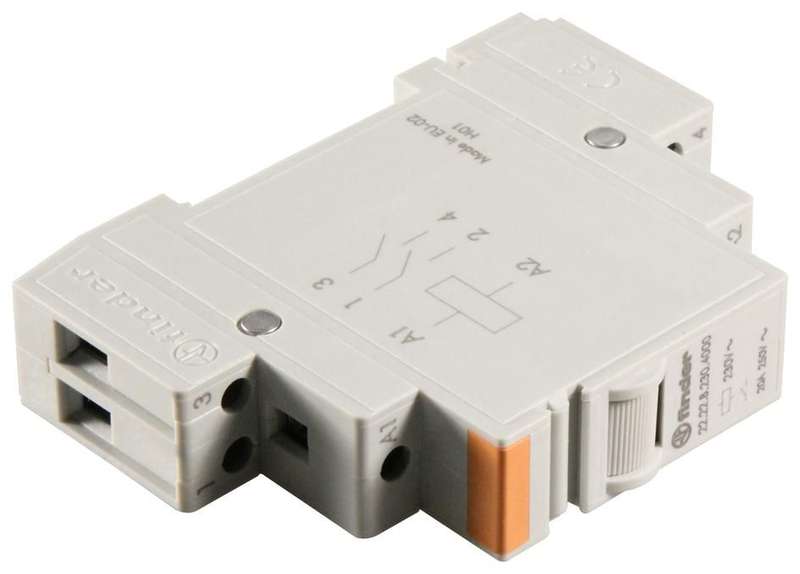

Finder (22.22.8.230.4000) Power Relay, 20 A, 22 Series, DIN Rail, AC

Product InformationContact Configuration: DPST-NOCoil Voltage: 230VACContact Current: 20AProduct Range: 22 SeriesRelay Mounting: DIN RailCoil Type: ACContact Voltage VAC: 250VACRelay Terminals: ScrewContact Voltage VDC: 30VContact Material: Silver Tin OxideCoil Resistance: 4.2kohmApprovals & Standards: CEProduct OverviewThe Finder 22 series are modular contactors. The contactors are two or four polerelays with AgNi and AgSnO2 contact material. These AgNi contacts arespecifically intended for resistive and inductive loads. AgSnO2 contacts are forlamp and high inrush current loads.35mm wide and 17.5mm wide size relaysSwitching capacity of 25A at 250VACAC and DC coils available based on orderingNO contact gap >= 3mm, double breakContinuous duty for the coil and contactsAC/DC silent coil (with varistor protection)Protective separation (reinforced insulation) between coil and contactsMechanical and LED indicators as standardAuto-on-off selector version availableAgNi and AgSnO2 contact versions availableApplicationsIndustrial, Power Management, Automation & Process Control, Motor Drive &Control
