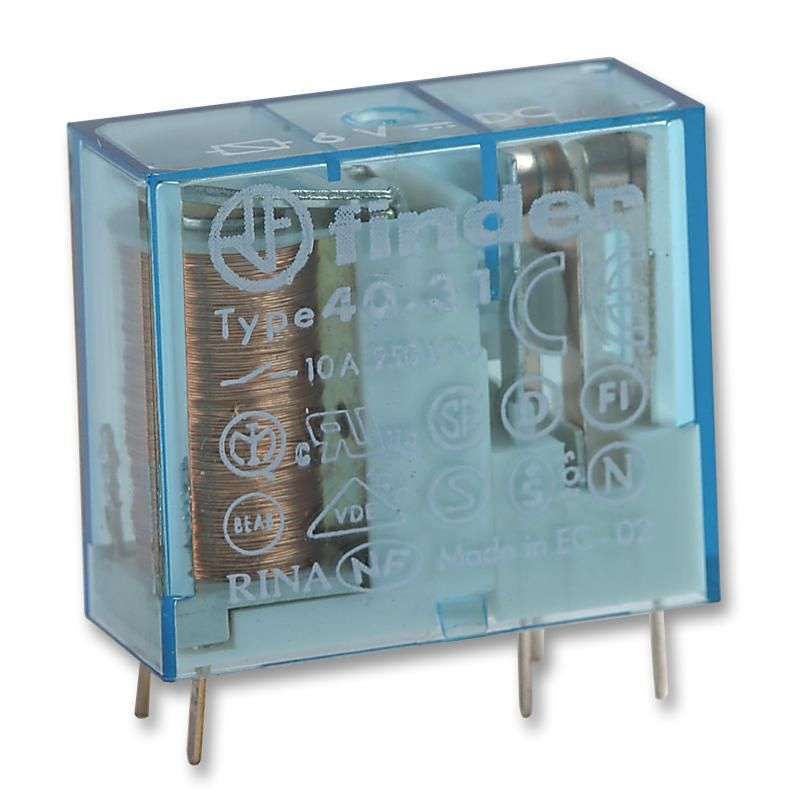

Finder (40.31.9.006.0000) General Purpose Relay, Power, 6 VDC, 10 A

Finder (40.31.9.006.0000) General Purpose Relay, Power, 6 VDC, 10 A

New 82 available
R715.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1169157
Bob Shop ID
645115728
Product InformationContact Configuration: SPDTCoil Voltage: 6VDCContact Current: 10AProduct Range: 40 SeriesRelay Mounting: Through HoleCoil Type: -Contact Voltage VAC: 250VACRelay Terminals: SolderContact Voltage VDC: -Contact Material: Silver NickelCoil Resistance: 55ohmApprovals & Standards: CSA, UL, VDEProduct OverviewThe 40.31.9.006.0000 is a 1-pole Miniature PCB/Plug-in Relay with DC coil, 40.31series. 1CO (SPDT) contact configuration, coil EMC suppression. Timeraccessories 86 series, 3.5mm pin length for PCB mount. AgNi, cadmium-freecontact, 8mm creepage and clearance distances between coil and contacts. MeetsEN 60335-1 glow wire requirements.PCB mount3.5 mm pinningDC coilUL, CSA and VDE standards approvedCadmium free contact materials8 mm Creepage and Clearance, 6 kV (1.2/50µs) between coil and contactMeets EN 60335-1 glow wire requirementsApplicationsIndustrial, Power Management, Automation & Process Control
