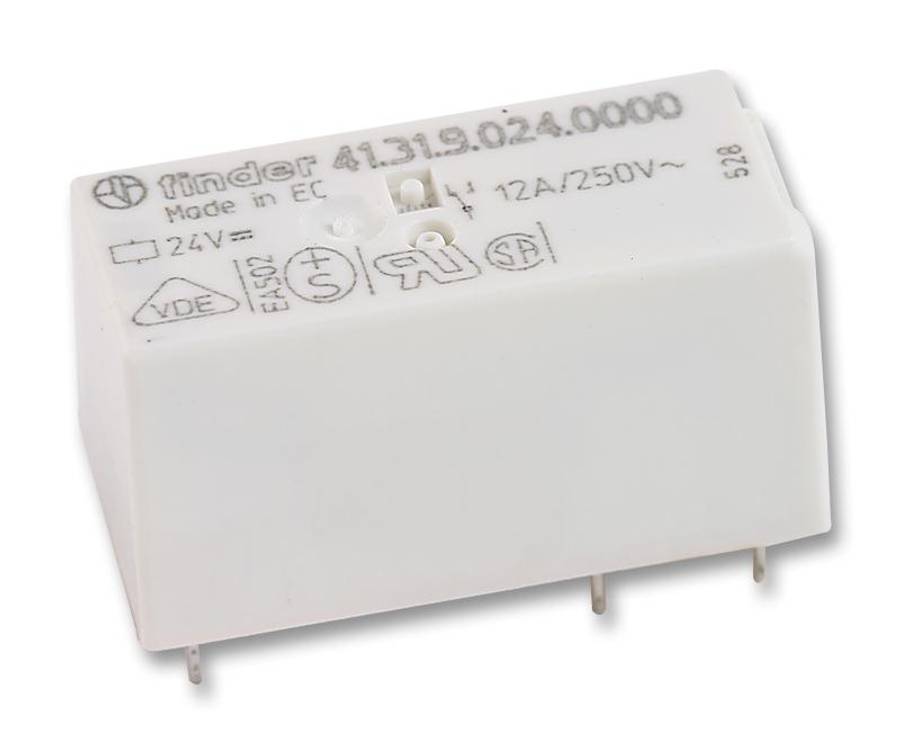

Finder (41.31.9.024.0010 )General Purpose Relay, Power, SPDT, 24VDC, 12A

Finder (41.31.9.024.0010 )General Purpose Relay, Power, SPDT, 24VDC, 12A

New 453 available
R485.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1169308
Bob Shop ID
674506587
Product InformationContact Configuration: SPDTCoil Voltage: 24VDCContact Current: 12AProduct Range: 41 SeriesRelay Mounting: Through HoleCoil Type: -Contact Voltage VAC: 250VACRelay Terminals: SolderContact Voltage VDC: -Contact Material: Silver NickelCoil Resistance: 1.44kohmApprovals & Standards: -Product OverviewThe Finder 41 series electromechanical relays are low profile PCB relays. Theseelectromechanical power relays have maximum height of 15.7mm and can beincorporated in miniature equipments. It offers high isolation of 6KV, 8mmcreepage and clearance distances between coil and contacts.Single pole relays except 41.52 series are available in double pole3.5mm or 5mm contact pin pitchSPDT, DPDT contact configurationAvailable in flux proof RT II standard and wash tight RT III versionSwitching capacity of 12A, 16A, 8A at 250VACAC and DC coils available based on orderingCadmium free contact materials35mm rail mount via screw or screwless socketsDC coil power of 400mWApplicationsIndustrial, Power Management, Automation & Process Control
