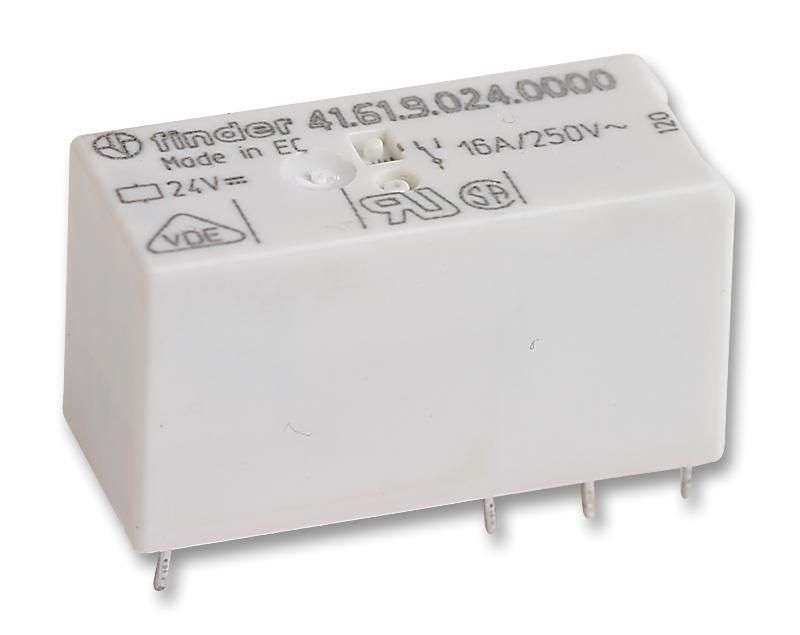

Finder (41.61.9.024.0010) General Purpose Relay, Power, SPDT, 24 VDC, 16 A

Product InformationContact Configuration: SPDTCoil Voltage: 24VDCContact Current: 16AProduct Range: 41 SeriesRelay Mounting: Through HoleCoil Type: -Contact Voltage VAC: 250VACRelay Terminals: SolderContact Voltage VDC: -Contact Material: Silver NickelCoil Resistance: 1.44kohmApprovals & Standards: -Product OverviewThe Finder 41 series electromechanical relays are low profile PCB relays. Theseelectromechanical power relays have maximum height of 15.7mm and can beincorporated in miniature equipments. It offers high isolation of 6KV, 8mmcreepage and clearance distances between coil and contacts.Single pole relays except 41.52 series are available in double pole3.5mm or 5mm contact pin pitchSPDT, DPDT contact configurationAvailable in flux proof RT II standard and wash tight RT III versionSwitching capacity of 12A, 16A, 8A at 250VACAC and DC coils available based on orderingCadmium free contact materials35mm rail mount via screw or screwless socketsDC coil power of 400mWApplicationsIndustrial, Power Management, Automation & Process Control
