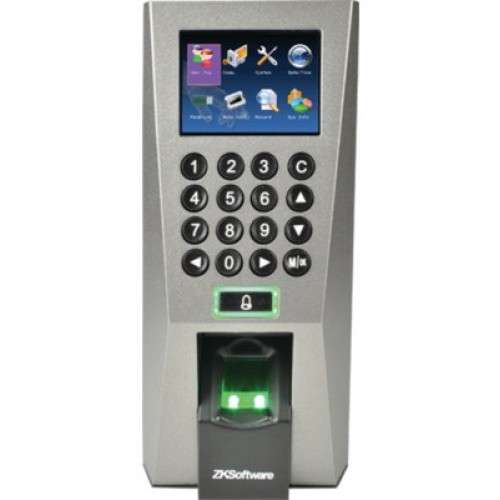

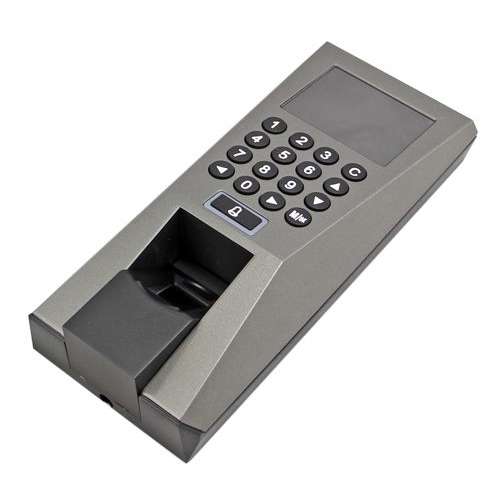

Stand-alone Finger print reader and access control
The ZK-F18 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed.
The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand.
All the operation can be done on the TFT-LCD.
The finger print image displays on the screen. This will guide the user to put the finger on to the proper position and increase the recognition rate.
TCP/IP and RS485 are available that the device can be used on different networks.
Features:
Specification:
Fingerprint Capacity | 1500 templates |
ID card Capacity | 5000 |
Transaction Capacity | 30,000 |
Sensor | ZK Optical Sensor |
Algorithm Version | ZK Finger v10.0 |
Communication | RS232/485, TCP/IP¿ USB-host |
Access Control Interface for | 3rd party electric lock, door sensor, exit button, alarm, Door Bell |
Wiegand Signal | Output and Input |
Display | TFT LCD Screen |
Standard function | ID card, Webserver, DLST |
Optional function | Mifare card |
Power Supply | 12V DC, 3A (Not Included) |
Operating Temperature | 0 deg - 45 deg C |
Operating Humidity | 20%-80% |
Included in the box:
1 x F18 Finger print reader
1 x CD with Software
1 x Rubber mounting backing
1 x Installation drawing / booklet (English)
