Description:

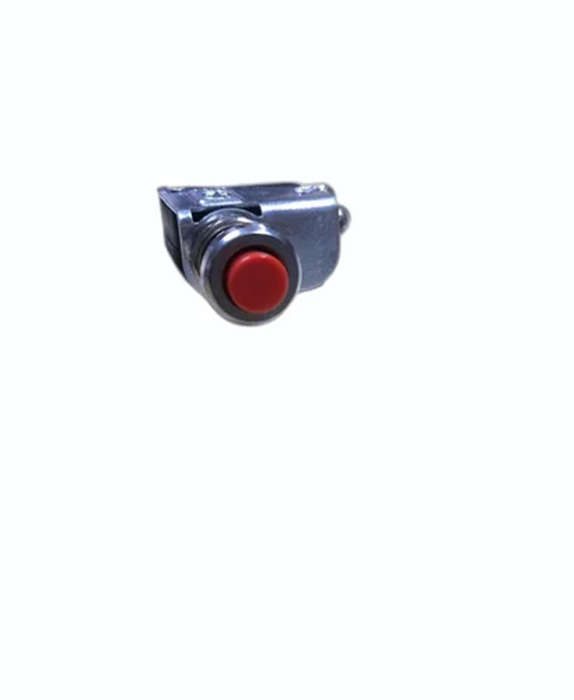

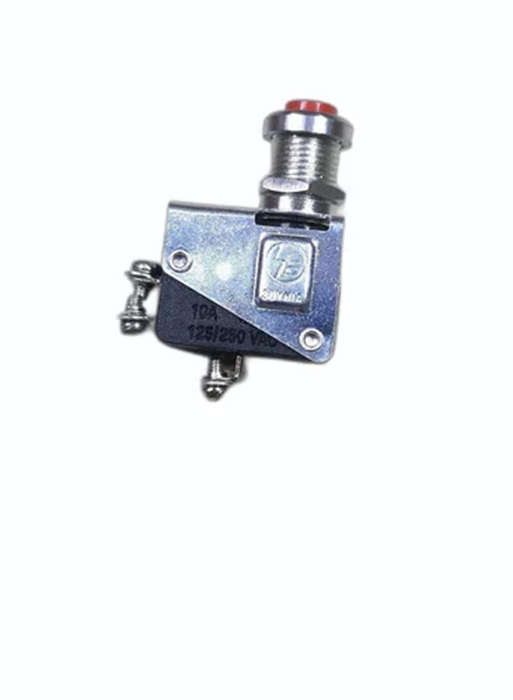

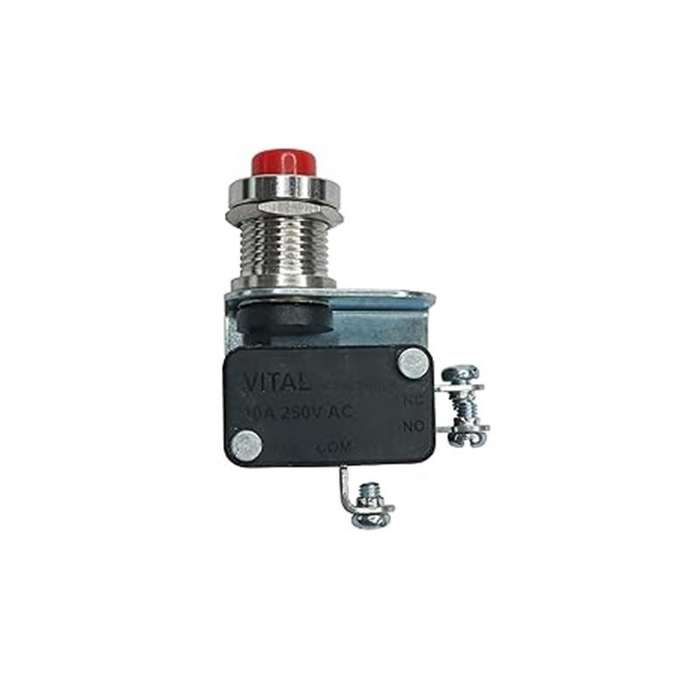

• A Finger Push LUG type Micro Switch (Red) is a small, momentary push button switch with a red LED that turns on when pressed.
• Compact size: Ideal for applications where space is restricted.
• Ease of Use: Operate with a single press.
• Visual Feedback: The red LED clearly indicates that the switch has been activated.
• Durability: Designed for extended use with little wear and tear.

Specifications:

• Model: Finger Push LUG type Micro Switch (Red).
• Material: Stainless steel housing, metal contacts.
• Button Colour: Red LED.
• Switch Type: Momentary (Push On/Release Off).
• Contact Rating: Up to 3A at 36V.
• Contact Resistance: Less than 1 ohm when closed.
• Insulation Resistance: Greater than 100M ohms at 500V DC.
• Operating Voltage: 12V.
• Button Diameter: 12mm.
• Connector Type: 4-pin lug type.
• Waterproof Rating: IP67 (waterproof and dustproof).
• Dimensions: Length: 21.3mm, Width: 14mm.
• Lifespan: Up to 100,000 cycles.
• Features: Anti-static, oil-resistant, durable design.
