Fingerbot ToolPack - Ring Arm / Rocker Switch Arm / Straight Arm

The Fingerbot ToolPack contains a rocker arm, a ring arm, straight arms with different lengths and 3M tapes.

Features

- Multiple straight arms of different lengths: The straight arms of different lengths will make your Fingerbot fit various buttons with different heights and depths.
- Rocker switch arm: The specially designed rocker switch arm has another 3M tape on the tip, allowing your Fingerbot to pull up rocker switches.
- Toggle switch arm: The O-shaped arm will steadily surround your toggle switch and follow the lead of your Fingerbot. Stop worrying about the toggle switches!
- Replacement tapes: The Toolpack comes with specially-designed 3M replacement tapes for you to move around the Fingerbot in the house.

Straight Arm

- With the modular design, the arm of Fingerbot is replaceable in order to meet different needs in diverse situations.
- We provide three straight arms with different lengths to assist Fingerbot better fitting various button-control cases.

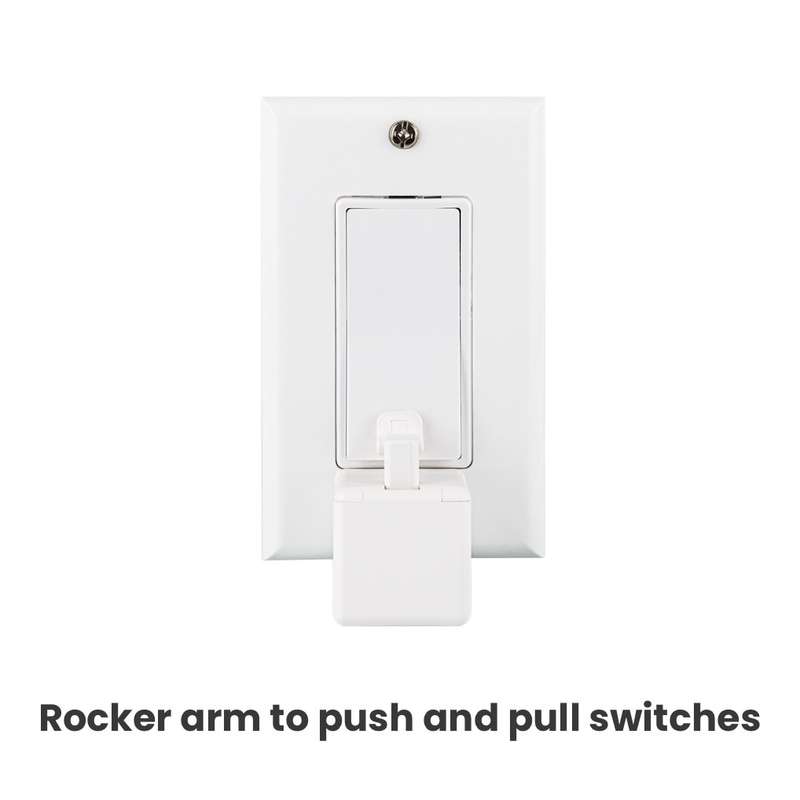

Rocker Arm

- Fingerbot makes use of the rocker arm to push and pull the switch button to change the switch status of equipment.

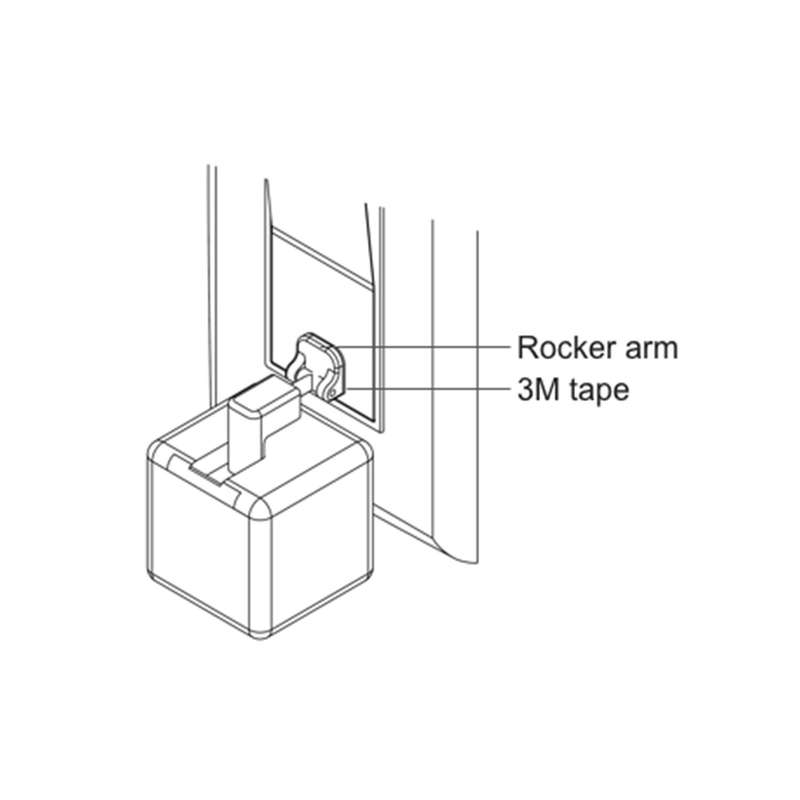

Please follow the instructions below to install a rocker arm.

1. After connecting Fingerbot with the App, set Fingerbot to the 'Switch' mode.
2. Move the arm of Fingerbot to the bottom and fix the Fingerbot on the switch panel.
3. Tear off the tape covering on the rocker arm to stick the arm to the switch button.
4. Use the App to adjust the "Up Movement" parameter of Fingerbot's arm, so that its movement range can be adapted to the switch button.

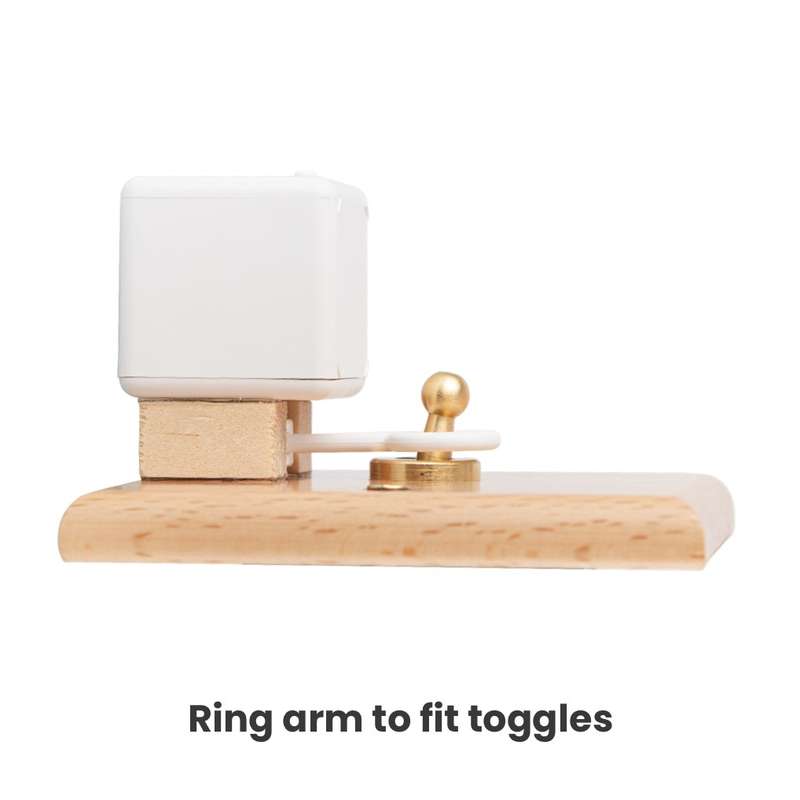

Ring Arm

- Fingerbot makes use of the ring arm to push and pull a toggle switch to change the switch status of equipment.

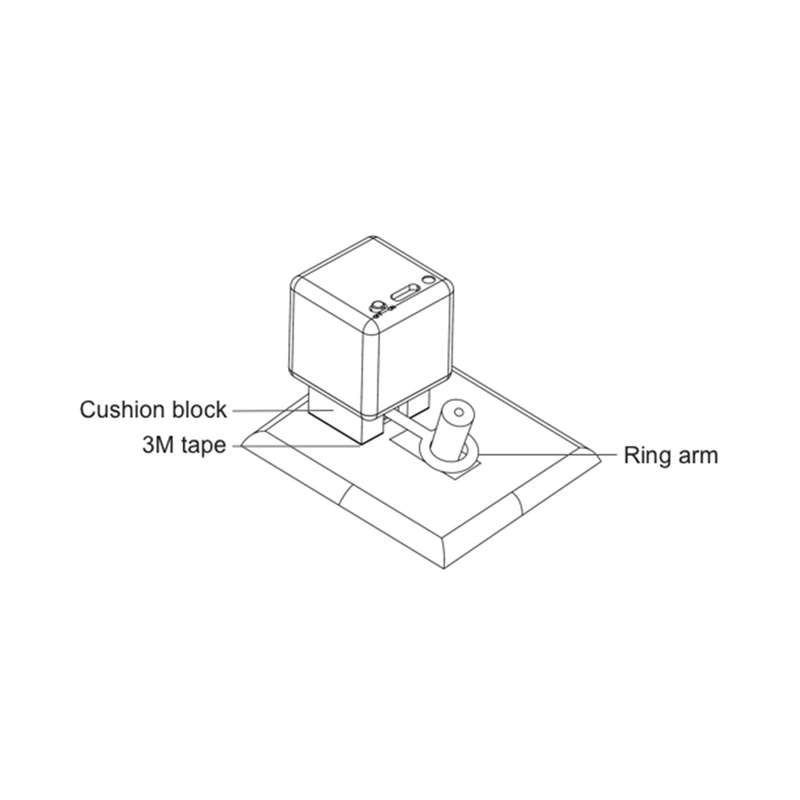

Please follow the instructions below to install a ring arm.

1. After connecting Fingerbot with the App, set Fingerbot to the 'Switch' mode.
2. Following the picture, fix two cushion blocks to Fingerbot with tape.
3. Put the ring of the arm on the toggle button, and tear off the tape covering on the other side of the cushion block to fix the Fingerbot on the switch panel.
4. Use the App to adjust the movement range of Fingerbot's arm, so that it can be adapted to the toggle.

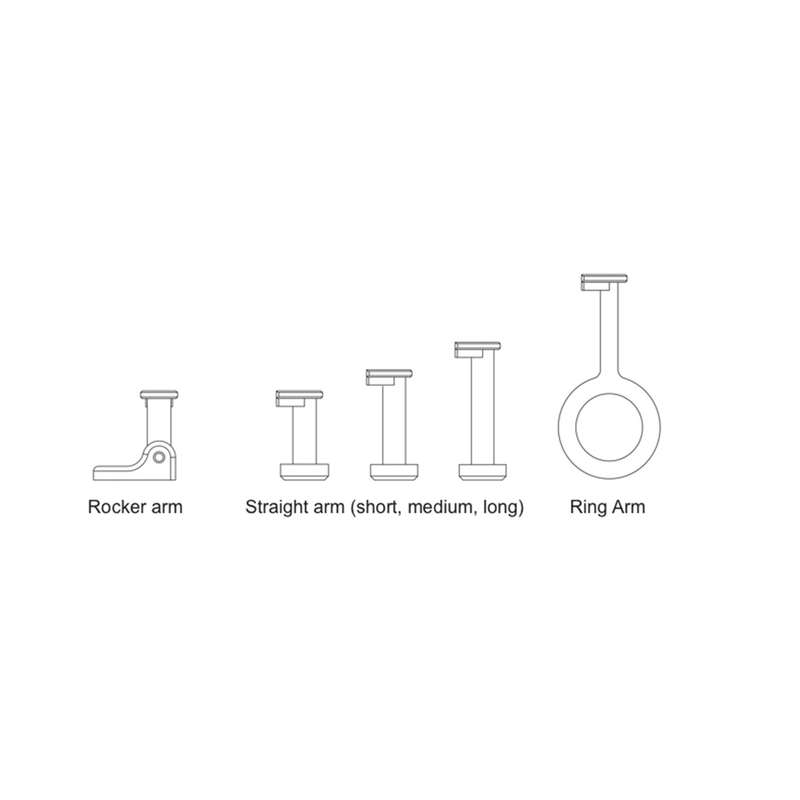

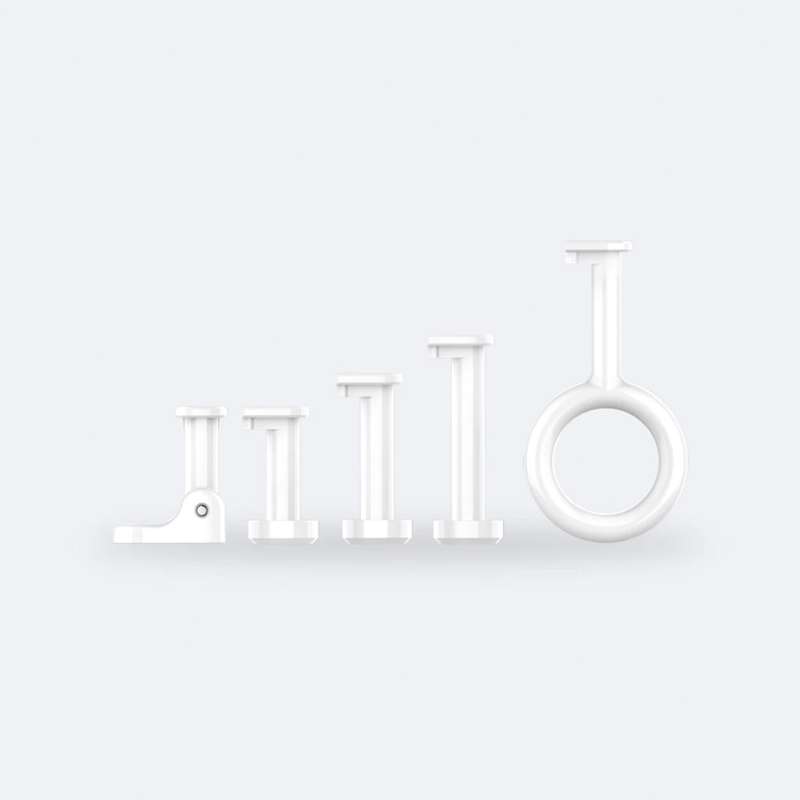

What's in the Box

- 1x Rocker Arm
- 1x ring Arm
- 1x short straight Arm
- 1x medium Straight Arm
- 1x Long Straight Arm
- 3M stickers
