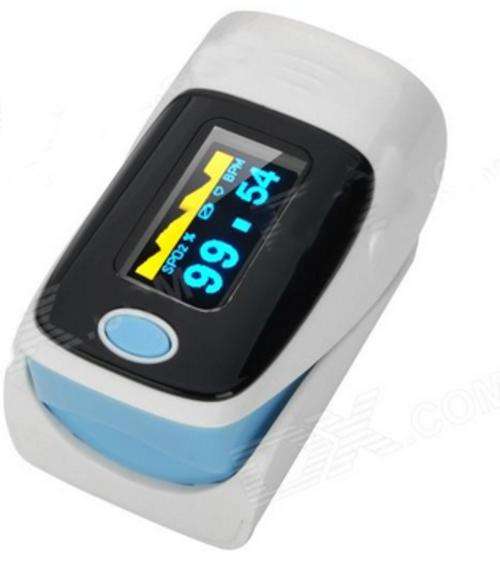

Heart Rate Monitor Fingertip Pulse Oximeter
FREE COURIER TO ALL MAIN CENTRES AND IMMEDIATE TOWNS AND SUBURBS
ALL OTHER AREA'S- R50 COURIER ANYWHERE IN SOUTH AFRICA
The Measurement principle of the oximeter is as follows:
An experience formula of data process is established by exerting Lambert Beer Law according to Spectrum Absorption Characteristics of Reductive hemoglobin (R Hb) and oxyhemoglobin (O2 Hb) in glow and near-infrared zones; Operation principle of the instrument is to combine Photoelectric Oxyhemoglobin /inspection Technology with Capacity Pulse Scanning and Recording Technology, so that two lights with different wavelength (660nm glow and 940nm near infrared light) can be focused onto human nail through perspective clamp finger-type sensor. Then measured signal can be obtained by a photosensitive element, information acquired through which will be shown on two groups of LEDs through a process in electronic circuits and microprocessor.
Highlights:
Specifications:
Colour: Blue
Material: PVC
Display Screen: 1.1" color OLED display, resolution: 96 x 64
SpO2: Measurement range: 70~99%; Resolution: 1%; Accuracy: 70%~99% +/- 2%, unspecified <70%
Pulse rate: Measurement range: 30~240bpm, Resolution: 1bpm, Accuracy: +/- 2bpm or +/- 2% (select larger)

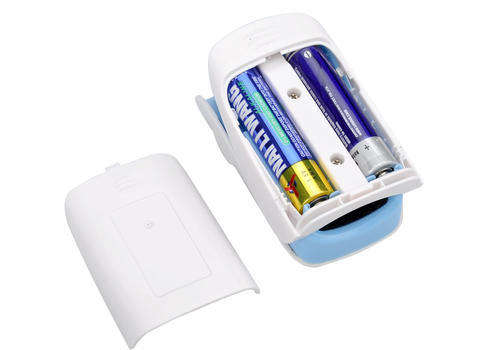

Power: 2 x AAA alkaline batteries not included
Power consumption: <=30mA
Working voltage: DC 3V
Packing list:
1x Oximeter

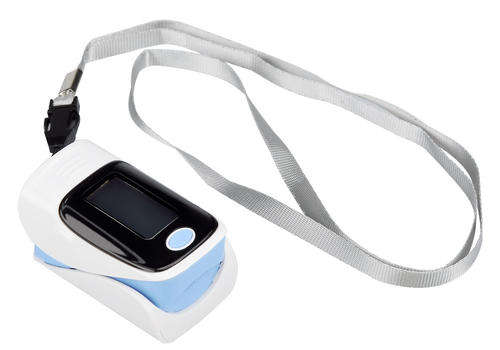

1x Strap
1x English user manual
