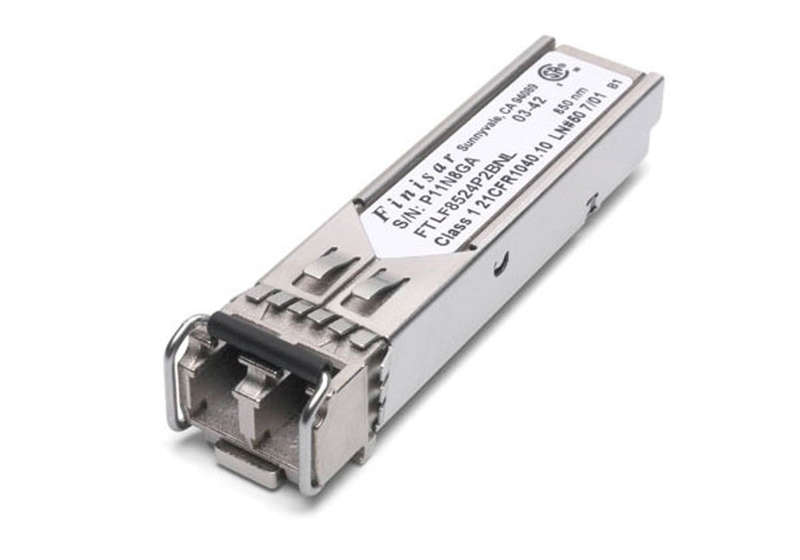

Finisar FTLF8524P2BNV-E6 4G Fibre Channel (4GFC) 500m SFP Transceiver - Refurb

This Finisar FTLF8524P2BNV-E6 is a high-performance 4G Fibre Channel SFP transceiver designed for use in high-speed storage networks and optical interconnects. Supporting multimode fibre (MMF) at 850nm, it offers data rates up to 4.25 Gb/s with a reach of 500 meters, ideal for short-range SAN deployments.

The transceiver integrates Digital Diagnostic Monitoring (DDM) and operates reliably across an extended industrial temperature range. With LC duplex connectivity and full Fibre Channel compliance, it's suitable for switches, HBAs, NICs, and mass storage systems demanding robust and error-free communication.

Key Features & Benefits
4.25 Gb/s data rate supporting 1G/2G/4G Fibre Channel applications
850nm VCSEL laser for short-reach 500m over multimode fibre
Digital Diagnostic Monitoring (DDM) for real-time performance tracking
Wide operating temperature range from -20°C to +85°C
Compact SFP form factor for flexible integration into existing hardware
Fully compliant with IEC, FDA, and RoHS standards for safety and environmental protection

Ideal Uses
Fibre Channel SAN interconnects in enterprise data centers
Integration with switches, hubs, and mass storage systems
Host Bus Adapter (HBA) and NIC connectivity for high-speed I/O
Fibre channel-based backup and archival environments

Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Compatible OEM Part Number: FTLF8524P2BNV
Alternative Part Number: OSP4G-8505DTR-FNS (Optcore)
Form Factor: SFP
Data Rate: 4.25 Gb/s
Wavelength: 850 nm
Fibre Type: MMF (Multimode Fibre)
Max Distance: 500 m
Optical Components: VCSEL/PIN
Transmitter Power: -6 to -1 dBm
Extinction Ratio: > 5 dB
Receiver Sensitivity: < -15 dBm
Receiver Overload: > 0.5 dBm
Connector: LC Duplex
Digital Diagnostic Monitoring: Yes
Operating Temperature: -20°C to 85°C
Storage Temperature: -40°C to 85°C
Weight: 0.03 kg
Compliance: IEC/EN 61000-4-2, IEC-60825, FDA 21CFR 1040.10 & 1040.11, RoHS
Warranty: 3 Month Carry-in Warranty
What's in the Box: Transceiver Module Only
