A professional introduction to data logging!

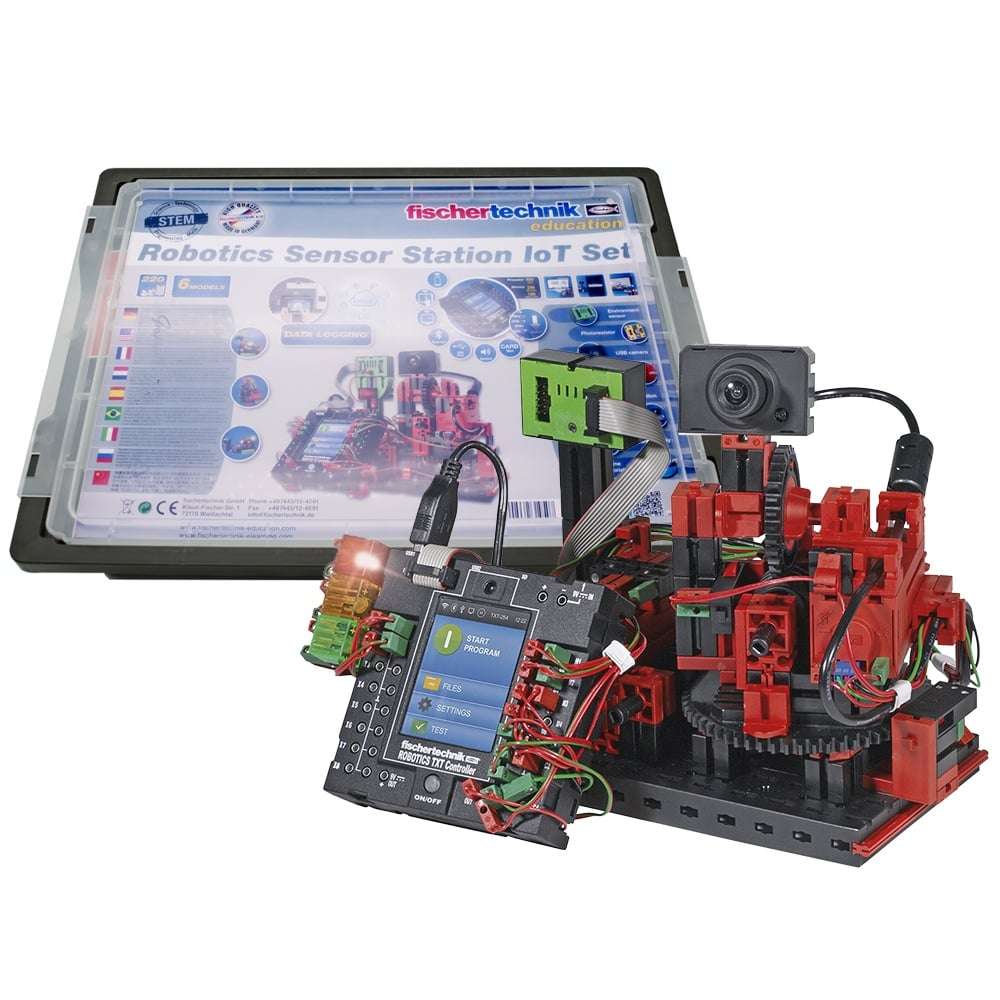

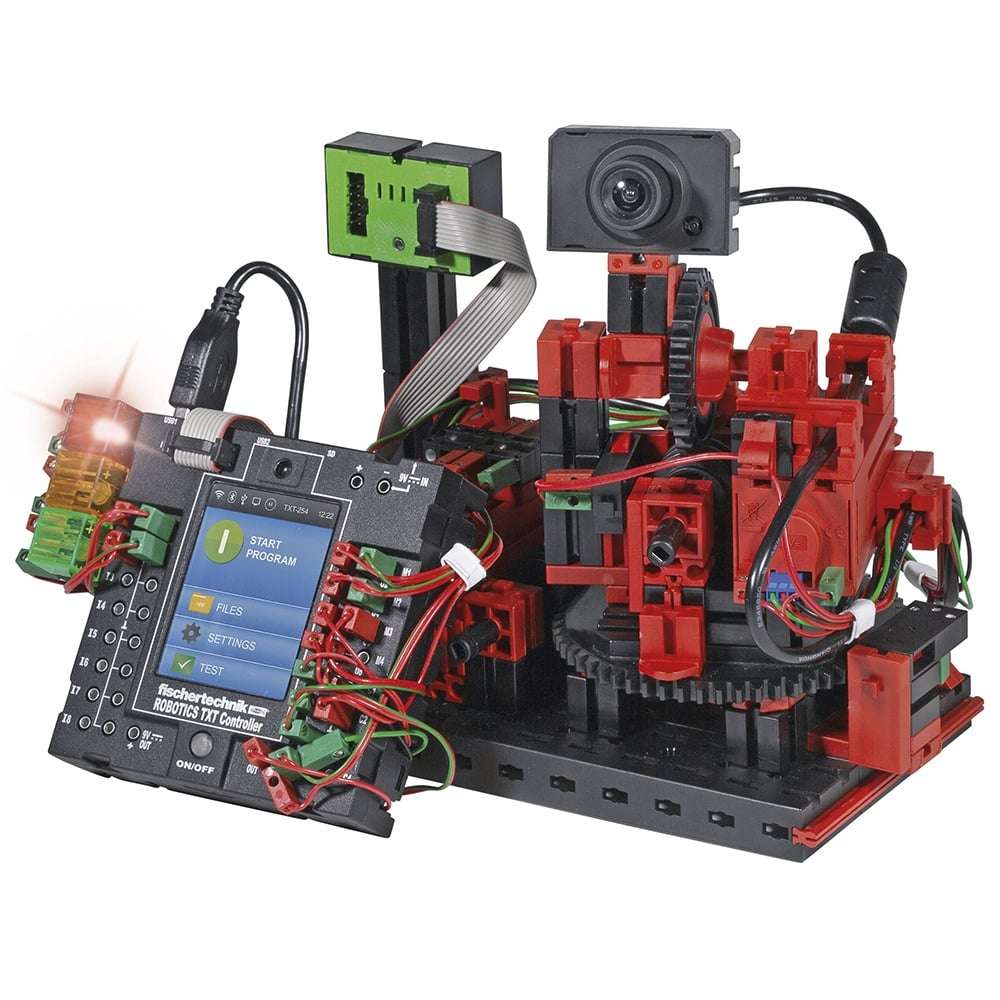

The stationary sensor station with a moving camera, new environmental sensor and other sensors, enables the measurement of air temperature, humidity, air pressure, air quality, volume, and brightness.
The models can be programmed and controlled with the graphical programming software Robo Pro and the Robotics TXT controller, and are ideal for teaching topics such as data logging, programming and the use of actuators and sensors. The sensors' data can be collected and plotted on a graph.
In addition, the model can connect to a WiFi network, so that the camera can also be controlled from a distance. The TXT controller can also be connected to a cloud server, where the sensors' data is saved and can be retrieved.
So using a user interface, a so-called "dashboard", the various sensor data can be permanently monitored, and the movement of the camera can be controlled. Further models and applications students can design and then control are:
- Barometer (measures air pressure)
- Damp monitor (measures humidity and air temperature)
- Environmental wellness sensor (measures the air quality, temperature, humidity) with LED display
- Noise sensor (measures volume)
- Frost monitor (tests temperature against the freezing point).
When the pre-set limit values are exceeded, the system alerts the user via an LED display or with an alarm tone. There are many more possible applications. The accompanying instructional booklet, with teaching and lesson materials, offers background information, projects, and program tips.
The product Robotics Sensor Station IoT is also available as a complete set. Also included in this complete set (Item No.: 544937) are the ROBOTICS TXT Controller, the ROBO Pro software and a power supply unit (9V, 2.5A).
Main subjects:
Instrumentation and control
Programming
The interaction between hardware and software
Use of actuators and sensors
Key Learning Objectives:
- Understand the focal points measuring, controlling, regulating, and programming
- Experience the interaction between the High-Tech TXT Controller and the ROBO Pro software
- Understand how the USB camera, different actuators, and many sensors work
- Deepen and practice project and group work
Additional Teaching Material:
Innovative fischertechnik learning materials support you in teaching technical concepts in a practical way and introducing them to your secondary school and university students or your apprentices. The included didactic material provides support on the models and tasks to help prepare lessons and includes problems with solutions, handouts, and copy templates.
Teaching materials are available on the included CD and for free download from the eLearning portal.
Product Composition:

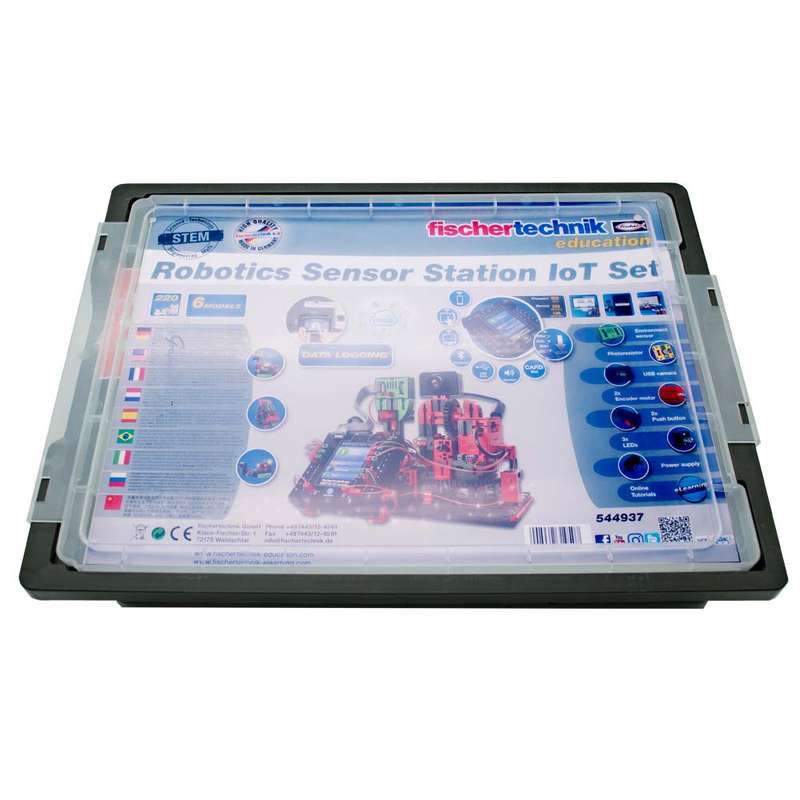

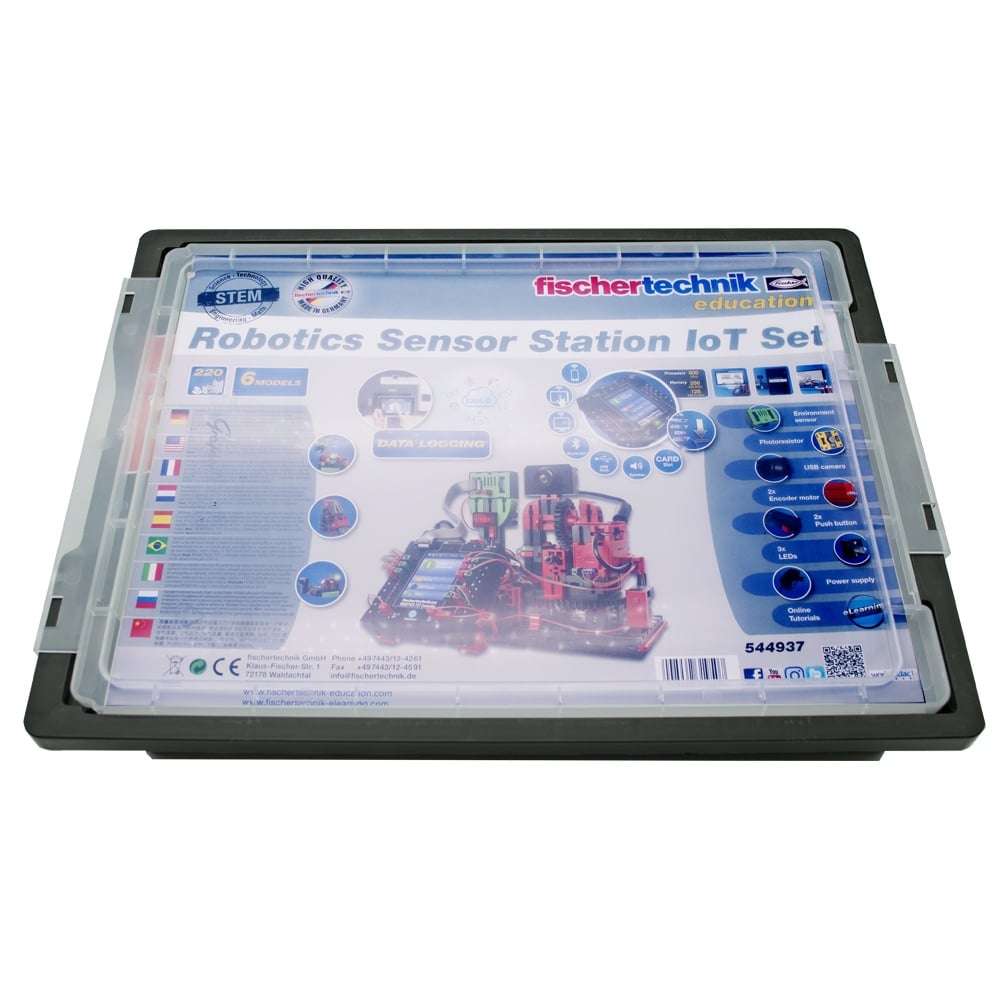

The total of 220 parts is clearly divided into two sorting inserts. Everything is delivered in a sturdy storage box, along with easy to understand assembly instructions for 6 models of different difficulty levels.
Set of 150 Components to make 6 models includes:
- Environmental sensor
- Brightness sensor
- USB camera (1 MP)
- 2x Encoder motor
- 2x Push button
- LEDs
- TXT Controller
- Accu Power Set
Age: 8 Years +
Item size: 7.7 x 43 x 31 cm
