Brief Description

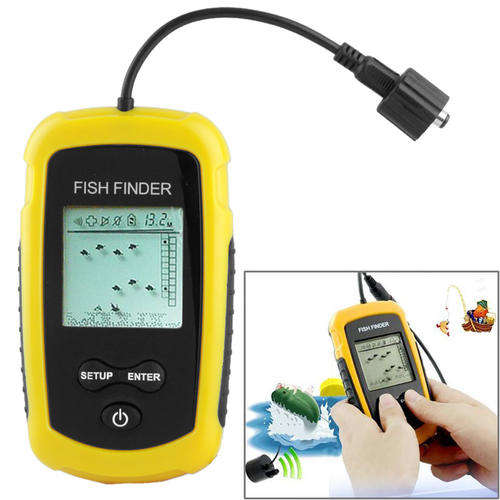

This portable fish finder is especially designed for fishermen and fishing enthusiasts, to search the location of fish, depth and bottom contour of water. Moreover, this fish finder is featured with High/Low sensitivity setting, audible fish and depth alarm.
This amazing product can be used in ocean, river, lake and icy water. The sonar is able to detect school of fish in any particular area. Moreover, the sonar can be mounted in different ways such as boat hull, floats, poles and ice.
Sonar Technology
Sonar is a technology based on sound propagation to locate and define structure, bottom contour and composition by using the transducer.
To determinate the distance of an object, the time interval between transmission of a sound wave signal by the transducer and reception of the object is measured. Then the fish finder uses the received signal to interpret the location, size and composition of the detected object.
Features
- Large LCD Display with LED backlight
- Round transducer sensor with 7.5 m cable, 45-degree beam angle
- Determines the location and depth of fish
- Can be used as a fish finder and a depth sounder
- Can be used in both fresh and salt water
- Display bottom contour (grass, sand and rock) in the sea
- Can resist the interference from grass when used in lake
- High/Low Sonar sensitivity setting
- Audible fish and depth alarm
- Clear fish icon
- Removable transducer float
- Water resistant design
- Battery strength indicator
- Selectable between meter or feet readings
- Can mount the sonar with the following methods
A. Fix it to the boat hull
B. Use a float on the cable to mount the sonar inside the water
C. Fix it on a pole and push it into the desirable position inside the water
D. Cut a hole on the ice surface and place the sonar under the water
Specifications
Display: Large ANTI-UV LCD
Range of depth readout from 0.6 ~ 100 m (2.0 ~ 328 feet)
Round transducer sensor with 7.5 m cable, 45-degree beam angle
Measuring unit: Meters or Feet
Operating Temperature : -20 °C to 70 °C (-4 °F to 158 °F)
Power: 4 x AAA alkaline batteries (not included)
Item size: approx. 120 (L) x 67 (W) x 28 (D) mm (4.72' x 2.64' x 1.10' inch)
Item weight: approx. 120 g (batteries not included)

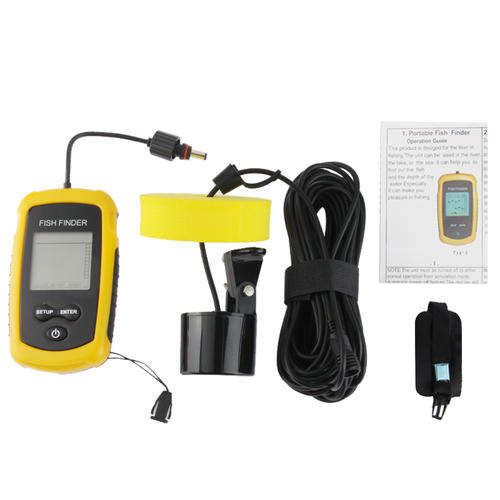

One set included
1 x Fish Finder
1 x Round Sonar Sensor with 7.5m (25 feet) Cable
1 x Stainless Bolt
1 x Stainless Wing Nut
1 x Neck Strap
1 x instruction manual
Color retail box package
