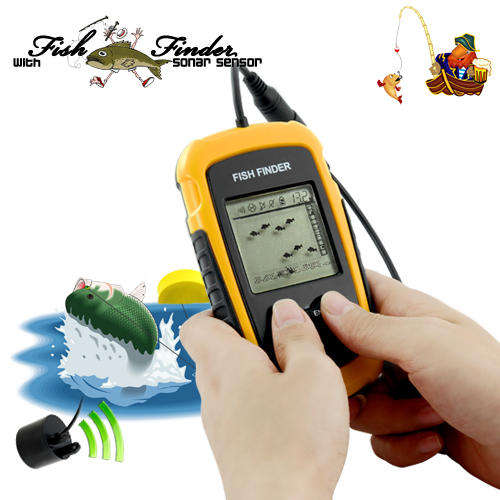

Fish Finder with Sonar Sensor

Manufacturer Specifications

• Main Function: Fish Finder with Sonar Sensor + 9 meter cable
• Display: 2" Anti-UV LCD
• Backlight: Green LED
• Sensor Beam Angle: 45 Degrees (200kHz)
• Depth range: 0.7m to 100m (2ft to 328ft)
• Sensor Beam Angle: 45 degrees
• Sonar Cable Length: 9 Meters (29.5 Feet)
• Operating Temperature: -20 C to 70 C (-4 F to 158 F)
• Power Source: 4 x AAA batteries (not included)
• Certification: CE
• Dimensions: L:120 x W:67 x D:25 (mm)

Product Notes

• Can mount the sonar by:
  - Fixing it to the boat hull
  - Using a float on the cable to mount the sonar inside the water
  - Fixing it on a pole and push it into the desirable position inside the water
  - Cutting a hole on the ice surface and place the sonar under the water
• Removable float
• Audible fish alarm
• Determines the location and depth of fish
• Selectable between meter or feet readings
• Get the approximate location of fish and the depth of water

Package Contents

• Portable Fish Finder With LCD Screen
• Round Sonar Sensor with 9m (29.5 feet) Cable
• Bolt
• Wing Nut
• Neck Strap
• Instruction Manual - English

FAQ - Frequently Asked Questions

• Can this fish finder unit also work when ice fishing?
  Yes, the fish finder can handle temperature of -20°C to +70°C (-4°F to 158°F). Note: Do not place the Sonar sensor directly on an icy surface, cut a hole in the ice first and then place the sonar in the water.
