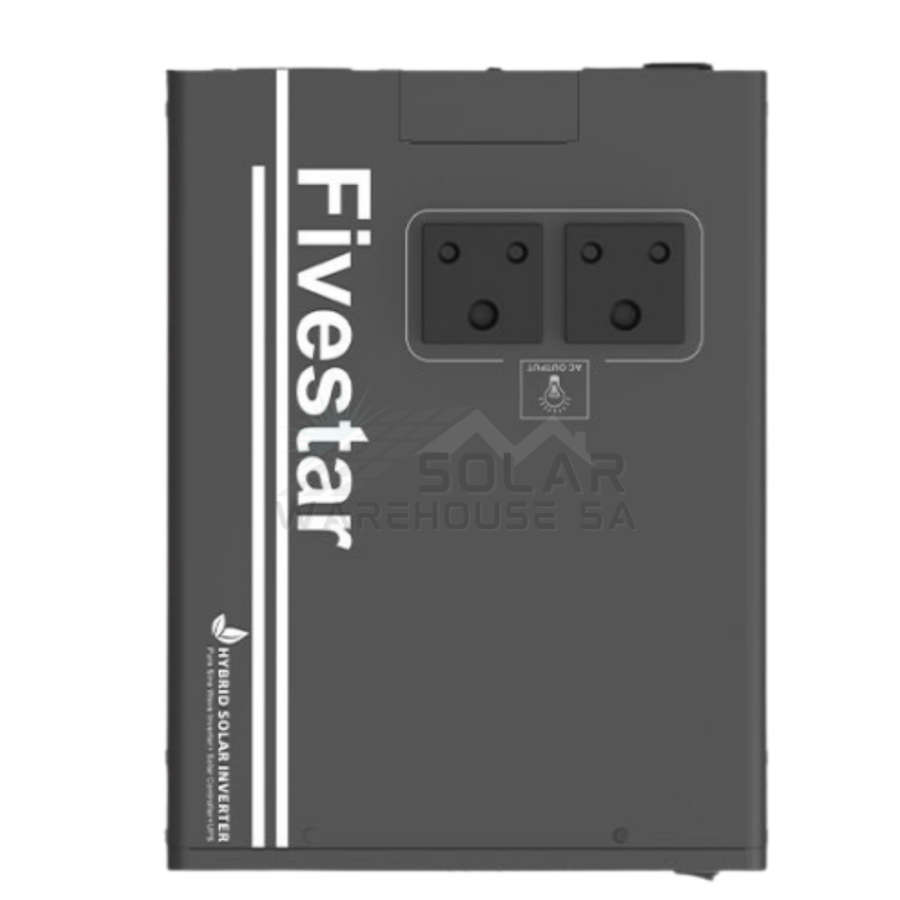

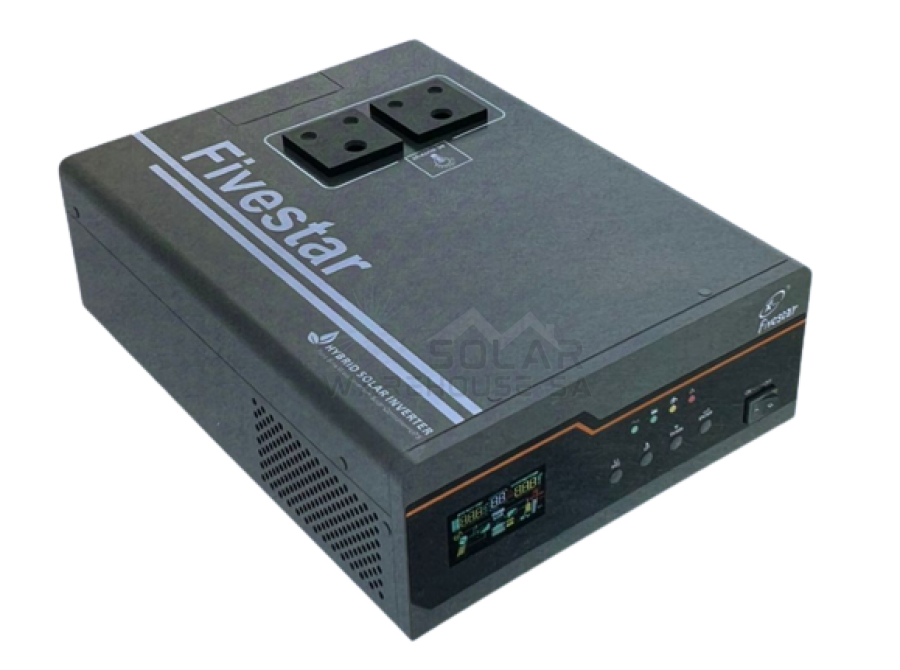

Fivestar 1500w 12v Hybrid Ups Inverter AL1512-FS
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
Fivestar 1500w 12v Hybrid Ups Inverter AL1512-FS

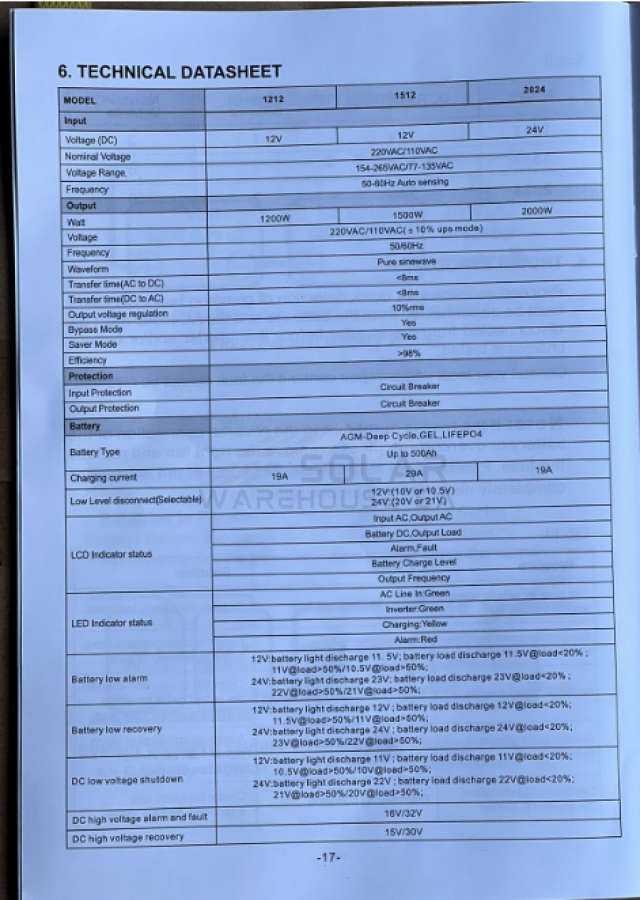

MODEL 1512
Input:
Voltage (DC) 12V
Nominal Voltage 220VAC/110VAC
Voltage Range 154-265VAC/77-135VAC
Frequency 50-60Hz Auto sensing
Output :
Watt 1500W
Voltage 220VAC/110VAC(+ 10% ups mode)
Frequency 50/60Hz
Waveform Pure sinewave
Transfer time(AC to DC) <8ms
Transfer time(DC to AC) <8ms
Output voltage regulation 10%rms
Bypass Mode Yes
Saver Mode Yes
Efficiency >98%
Protection:
Input Protection Circuit Breaker
Output Protection Circuit Breaker
Battery:
Battery Type AGM-Deep Cycle,GEL,LIFEPO4
Up to 500Ah
Charging current 29A

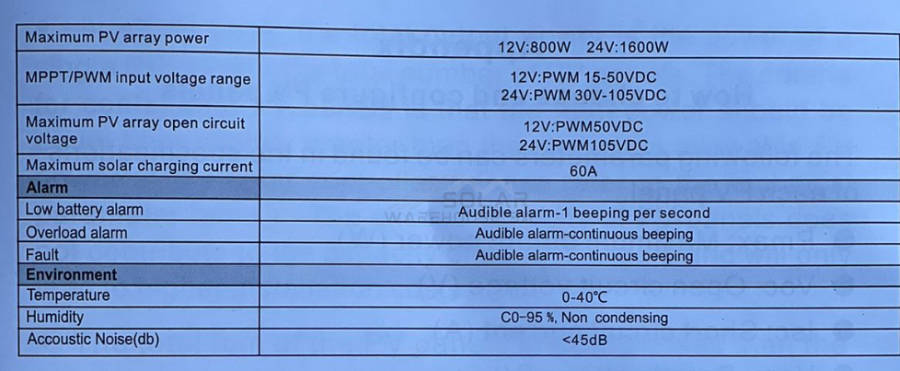

Solar:
Maximum PV array power 12V:800W 24V:1600W
MPPT/PWM input voltage range 12V:PWM 15-50VDC 24V:PWM 30V-105VDC
Maximum PV array open circuit voltage: 12V:PWM50VDC 24V:PWM105VDC 60A
Maximum solar charging current: 60A
Package Includes :
1x Battery Fuse
1x User Manual
1x Power Cable

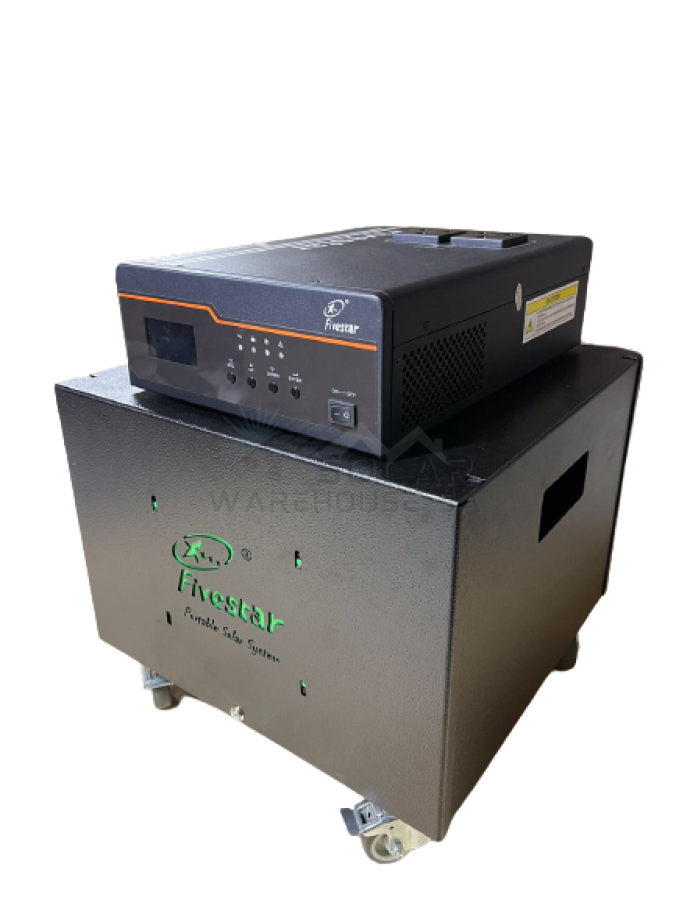

(Battery Cables & Steel Trolley Not Included)
