The perfect solution for load shedding!
The all-in-one portable plug & play inverter battery trolley system (Heavy Duty Inverter Trolley) Easy portable compact unit with lock wheels as well as handles to carry the system.
PLEASE NOTE TROLLEYS TAKE 2-3 HOURS TO ASSEMBLE
What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.
How much battery backup power will I have when the power is off?
If you connect 100w which is usually a TV, Wifi, Lights, etc. This portable system will last 18-20 Hours.
Inverter Specifications & Fixtures:
Input:
Voltage (DC) 12V
Nominal Voltage 220VAC/110VAC
Voltage Range 154-265VAC/77-135VAC
Frequency 50-60Hz Auto sensing
Output :
Watt 1500W
Voltage 220VAC/110VAC(+ 10% ups mode)
Frequency 50/60Hz
Waveform Pure sinewave
Transfer time(AC to DC) <8ms
Transfer time(DC to AC) <8ms
Output voltage regulation 10%rms
Bypass Mode Yes
Saver Mode Yes
Efficiency >98%
Protection:
Input Protection Circuit Breaker
Output Protection Circuit Breaker
Battery:
Battery Type AGM-Deep Cycle,GEL,LIFEPO4
Up to 500Ah
Charging current 29A
Solar:
Maximum PV array power 12V:800W 24V:1600W
MPPT/PWM input voltage range 12V:PWM 15-50VDC 24V:PWM 30V-105VDC
Maximum PV array open circuit voltage: 12V:PWM50VDC 24V:PWM105VDC 60A
Maximum solar charging current: 60A
How to maximize battery life:
Keep your inverter system plugged in and switched on, this will keep your batteries at full charge.
Size & Weight:
53cm (H) x 51.1 (L) x 40 (W)
35KG
This all-in-one system Includes:

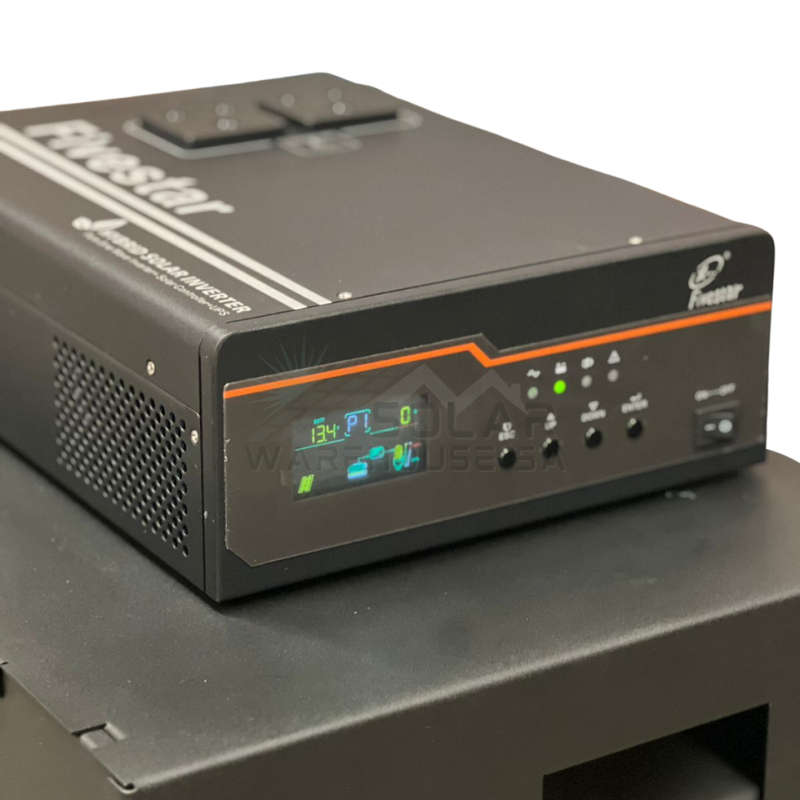

1x Fivestar 1500w 12v Hybrid Ups Inverter AL1512-FS
(12 Months Repair Warranty)

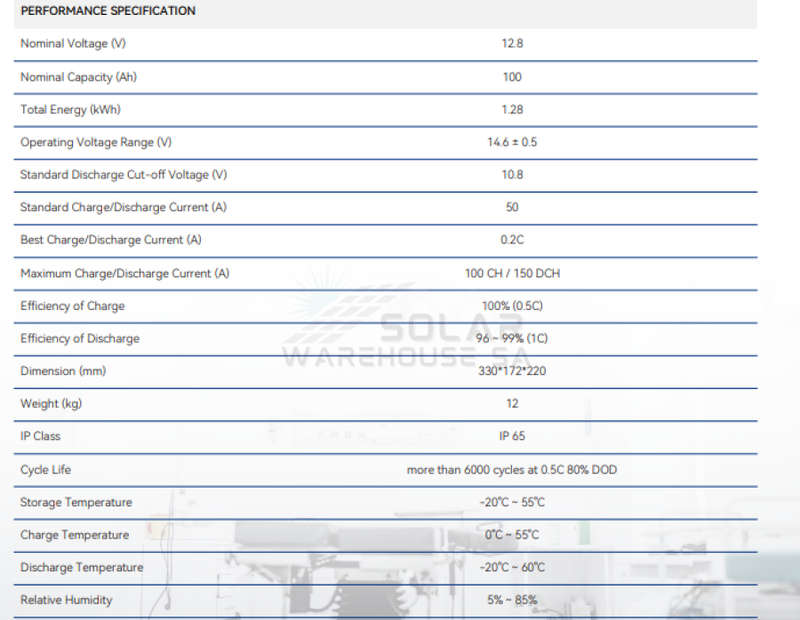

2x 12.8v 100ah 1.28Kwh Ecco Lithium Battery (3 Years Warranty)
1x Battery Fuse
1x 1m Power Cable With Wall Plug

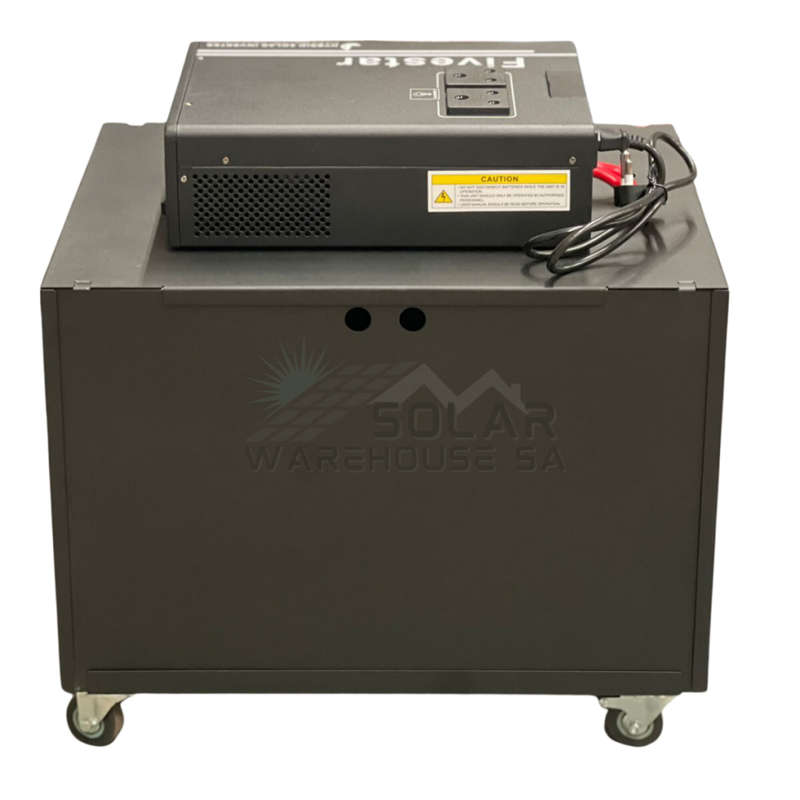

1x Heavy Duty Steel Portable Box With Lock Wheels & Handles
