- Stainless Steel Casing
- 100% Copper windings.
- Stainless Steel Shaft
- Wear-resistant rubber stator
- Stainless Steel Coupling
- Stainless Steel Pump body
- Stainless Steel Submersible motor
- Graphite bearings.
Features
- Compact structure with high efficiency, low noise, and pollutant-free.
- Soft start electrical control panel provides protection against under-voltage, over-voltage, over-pumping, overloading and provides waterless automatic recovery.
- Easy installation, maintenance-free, safe, and reliable.
- DC Brushless Motor
- Max Flow: 1.6m3/h
- Max Head: 80m
- Max Suction 40m
- Pipe Size In/Out 76mm
- Power 250W
- Voltage DC 24V
- Max Input 36V
- Min Input Voltage 20V
- Max Input Amp 16A
- MPPT Controller
- Brushless Motor
- NSK Bearings
- Run Dry Protection
- Soft Start
- Over and Under Current Protection
- Variable speed control
Inside the Box
- water pump, controller and 2 x sensor
Application
- Suitable for installations in boreholes, wells, rivers, dams, and tanks with minimum ID Ø 76mm.
Working Conditions
- Non-corrosive water with a volume ratio of sand content not exceeding 1% and the particle size not exceeding 0.5mm.
- Max pumped liquid temperature: 60°C
Solar water pump controller
- Function of Solar Pump Controller Box
- Low-Voltage Protection (it is automatic)
- Overcurrent Protection (it is automatic)
- locked Rotor Protection
- Temperature Protection
- Lack of phase protection
- protection for low water level in well (1,GND sensor) or automatically without sensor
- protection for full water level in tank(2,GND sensor)
- controlling running speed of motor(speed regulation)
- Delay working when full water in tank (A timer inside can delay working for 10mins when the tank going to not full)
- Delay working when low water in well( A timer inside can delay working for 10mins after the pump stops working from low water level protection in well)
- MPPT function. (maximum power point tracking)
- Battery is option.(battery can be used with solar charger battery system)
Extra Installation Spare Part Required that is Not Included:
Pressure Switch
Solar Panel 2 x 250W-350W panel upwards as long as VOC of the panel is below 100VDC
Solar Cable
MC4 Connectors
Pipes and Fittings
Packaging
Box Size 43 x 27.5 x 12cm
N.W 3.5Kg
G.W 8Kg
1 Year Warranty

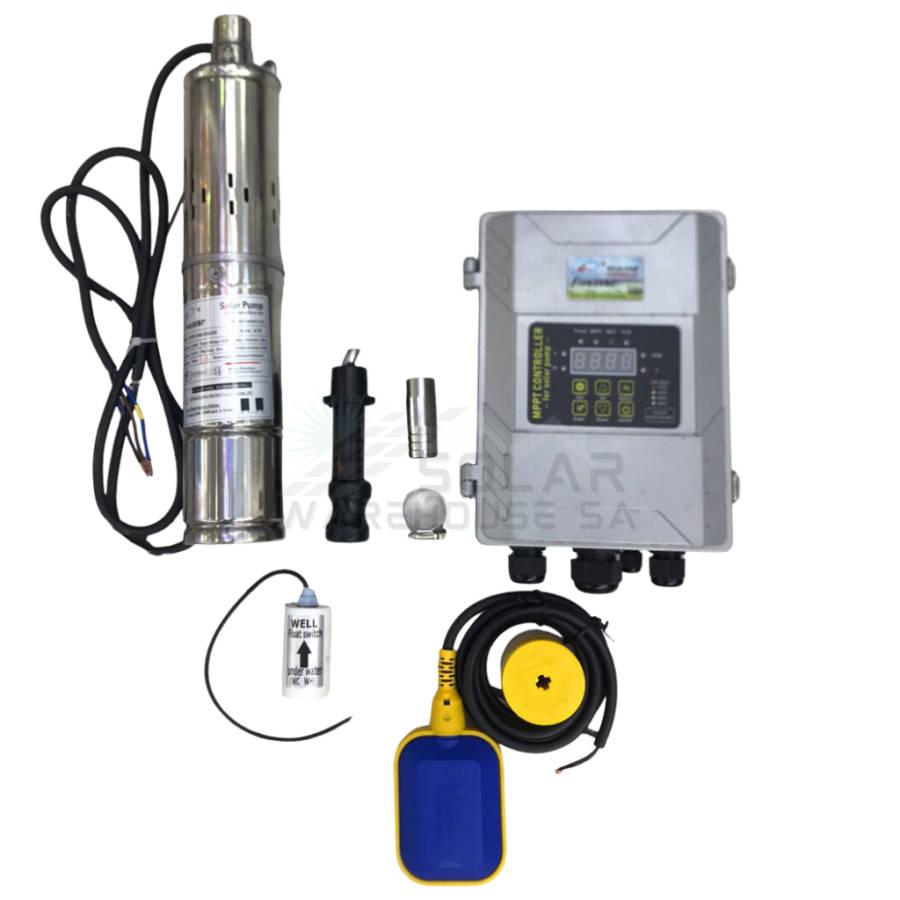

What's in the box
1x 250W Pump and Motor
1x Control Box 100V
1 x Spare Rotor
2 x Floats
1 x Water Proof Tape
1 x Insulation Tape
1 x Instruction Manual
