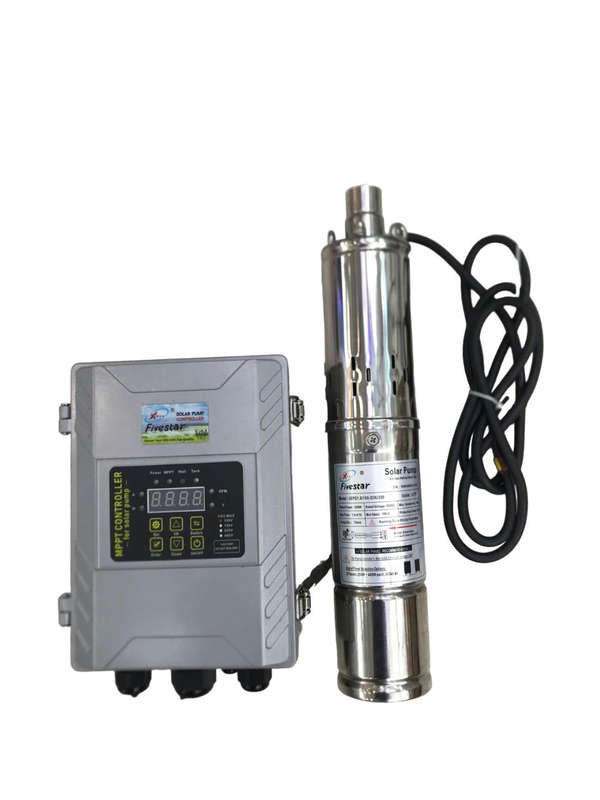

Description
Material
- Stainless Steel Casing
- 100% Copper windings.
- Stainless Steel Shaft
- Wear-resistant rubber stator
- Stainless Steel Coupling
- Stainless Steel Pump body
- Stainless Steel Submersible motor
- Graphite bearings.
Features
- Compact structure with high efficiency, low noise, and pollutant-free.
- Soft start electrical control panel provides protection against under-voltage, over-voltage, over-pumping, overloading and provides waterless automatic recovery.
- Easy installation, maintenance-free, safe, and reliable.
- DC Brushless Motor
- Max Flow: 1.8m3/h
- Max Head: 100m
- Max Suction 40m
- Pipe Size In/Out 76mm
- Power 350W
- Voltage DC 36V
- Max Input 63V
- Min Input Voltage 20V
- Max Input Amp 16A
- MPPT Controller
- Brushless Motor
- NSK Bearings
- Run Dry Protection
- Soft Start
- Over and Under Current Protection
- Variable speed control
Application
Suitable for installations in boreholes, wells, rivers, dams, and tanks with minimum ID Ø 76mm.
Working Conditions
Non-corrosive water with a volume ratio of sand content not exceeding 1% and the particle size not exceeding 0.5mm.
Max pumped liquid temperature: 60°C
Solar water pump controller
Function of Solar Pump Controller Box
Low-Voltage Protection (it is automatic)
Overcurrent Protection (it is automatic)
locked Rotor Protection
Temperature Protection
Lack of phase protection
protection for low water level in well (1,GND sensor) or automatically without sensor
protection for full water level in tank(2,GND sensor)
controlling running speed of motor(speed regulation)
Delay working when full water in tank (A timer inside can delay working for 10mins when the tank going to not full)
Delay working when low water in well( A timer inside can delay working for 10mins after the pump stops working from low water level protection in well)
MPPT function. (maximum power point tracking)
Battery is optional.(battery can be used with solar charger battery system)
Extra Installation Spare Part Required that is Not Included:
- Pressure Switch
- Solar Panel 2 x 250W-400W panel upwards as long as VOC of the panel is below 100VDC
- Solar Cable
- MC4 Connectors
- Pipes and Fittings

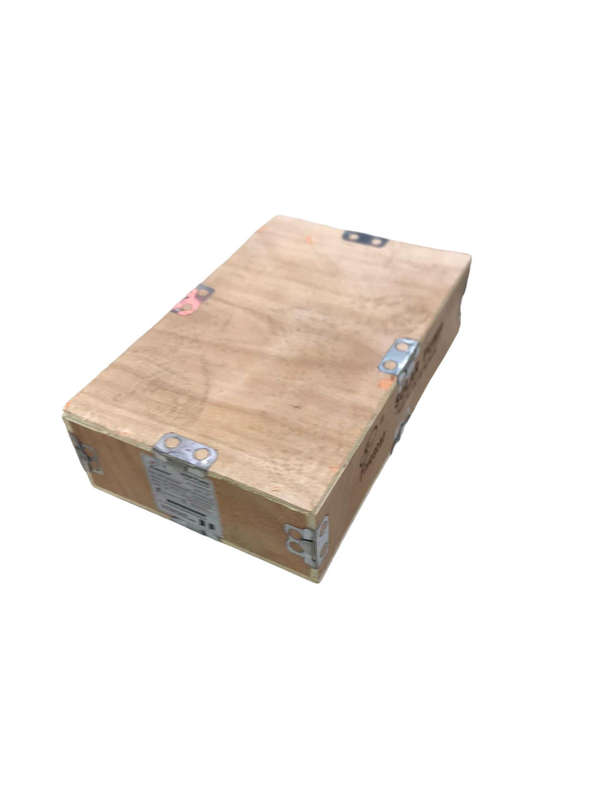

Packaging
Box Size 43 x 27.5 x 12cm
N.W 3.5Kg
G.W 8Kg

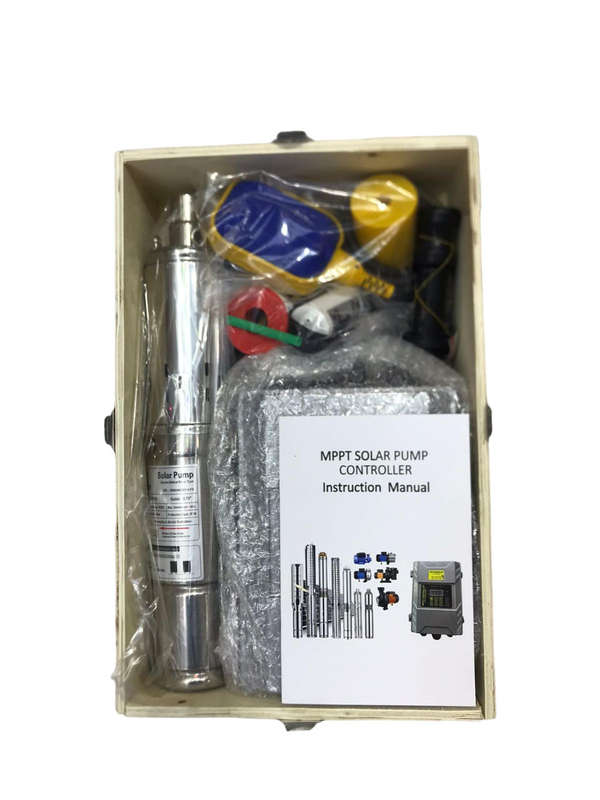

Whats in the box
1x 350W Pump and Motor
1x Control Box 100V
1 x Spare Rotor
2 x Floats
1 x Water Proof Tape
1 x Insulation Tape
1 x Instruction Manual
