Description
Material
- Stainless Steel Casing
- 100% Copper windings.
- Stainless Steel Shaft
- Wear-resistant rubber stator
- Stainless Steel Coupling
- Stainless Steel Pump body
- Stainless Steel Submersible motor
- Graphite bearings.
Features
- Compact structure with high efficiency, low noise, and pollutant-free.
- Soft start electrical control panel provides protection against under-voltage, over-voltage, over-pumping, overloading and provides waterless automatic recovery.
- Easy installation, maintenance-free, safe, and reliable.
- DC Brushless Motor
- Max Flow: 7m3/h
- Max Head: 80m
- Max Suction 40m
- Pipe Size In/Out 96mm
- Power 750W
- Voltage DC 96V
- Max Input 200V
- Min Input Voltage 60V
- Max Input Amp 16A
- MPPT Controller
- Brushless Motor
- NSK Bearings
- Run Dry Protection
- Soft Start
- Over and Under Current Protection
- Variable speed control
Inside the Box
- water pump, controller and 2 x sensor
- Application
- Suitable for installations in boreholes, wells, rivers, dams, and tanks with minimum ID Ø 96mm.
Working Conditions
- Non-corrosive water with a volume ratio of sand content not exceeding 1% and the particle size not exceeding 0.5mm.
- Max pumped liquid temperature: 60°C
- Solar water pump controller
Function of Solar Pump Controller Box
- Low-Voltage Protection (it is automatic)
- Overcurrent Protection (it is automatic)
- locked Rotor Protection
Temperature Protection
Lack of phase protection
protection for low water level in well (1,GND sensor) or automatically without sensor
protection for full water level in tank(2,GND sensor)
controlling running speed of motor(speed regulation)
Delay working when full water in tank (A timer inside can delay working for 10mins when the tank going to not full)
Delay working when low water in well( A timer inside can delay working for 10mins after the pump stops working from low water level protection in well)
MPPT function. (maximum power point tracking)
Battery is option.(battery can be used with solar charger battery system)
Extra Installation Spare Part Required that is Not Included:
Pressure Switch
Solar Panel 3 x 330W-500W panel upwards as long as VOC of the panel is below 150VDC
Solar Cable
MC4 Connectors
Pipes and Fittings
1 Year Warranty
Packaging
Box Size 61 x 29.5 x 12cm
N.W 6.5Kg
G.W 12Kg

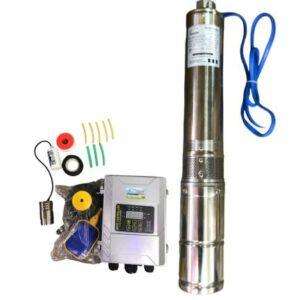

Whats in the box
1x 750W Pump and Motor
1x Control Box 150V
1 x Spare Rotor
2 x Floats
1 x Water Proof Tape
1 x Insulation Tape
1 x Instruction Manual
