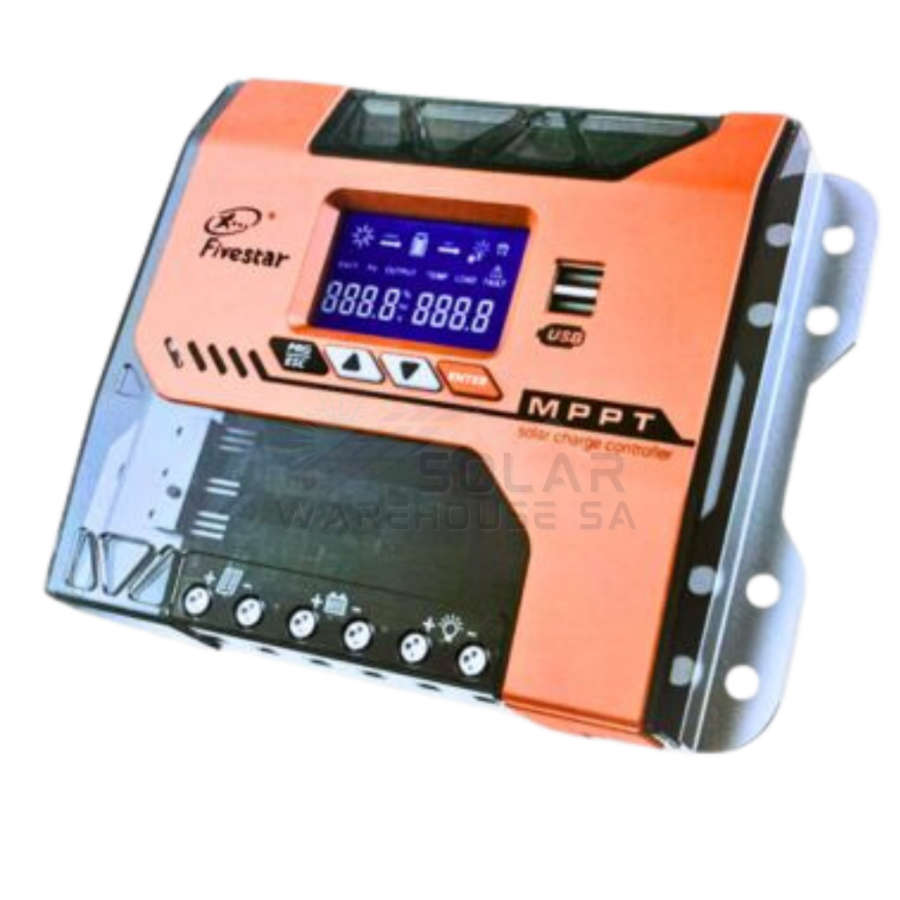

Fivestar- FSM- 20A MPPT Solar Charge Controller (12-48v)

Fivestar- FSM- 20A MPPT Solar Charge Controller (12-48v)

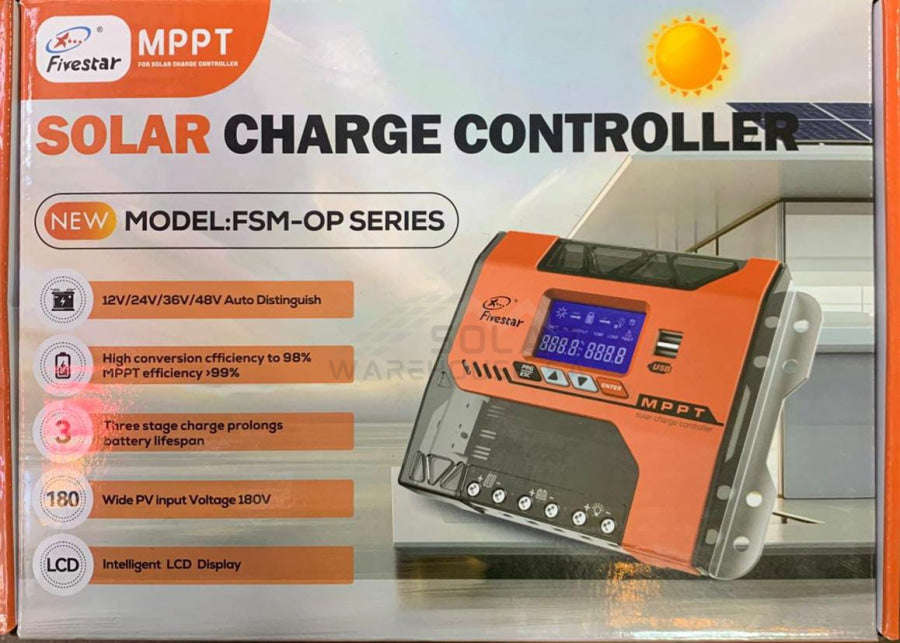

FEATURES

• High Efficiency MPPT Control Algorithm. MPPT Efficiency >99%, Whole Machine Conversion Efficiency Up To 98%;
• Charge Mode; Three Stages (Fast Charge, Constant Charge, Floating Charge), Improve Boost Voltage Charge(Active The Battery Performance), It Prolongs Service Life of the Batteries.
• Most Information Could be Provided by LCD: PV Input Voltage, PV  Input Current, Battery Voltage, Charging Current, Load Current and so on;
• CE, RoHS Certification Approved
• 100% MPPT Technology
• Easy to Use

Specifications :

• Brand- Fivestar
• Model- FSM-OP20-20A
• Auto Switch for 12v/24v/36v/48v Battery Bank
• 3-stage Charging Optimizes Battery Performance
• Built-in DSP Controller With High Performance
• Troubleshooting Promotion Function
• Max. PV Input Voltage: 180v
• Battery Voltage: 12v/24v/36v/48v

Max. PV Input Power

• 260w/12v
• 520w/24
• 780w/36v
• 1040w/48v

Warranty

• 1 year Warranty

Package Dimensions:

• Product Dimension- 19 x 14 x 6cm
• Packaging Dimension- 15 x 21 x 7cm
• N.W- 660g
• G.W- 780g

Inside the Box

1 x 20A MPPT Solar Controller

1 x User manual Book
