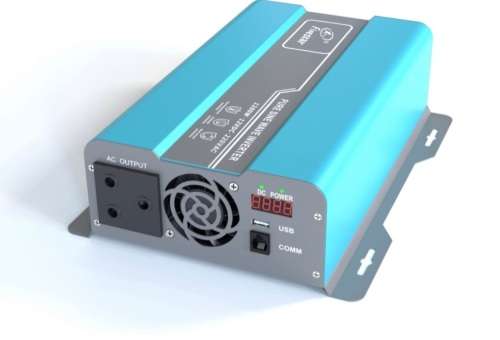

Pure Sine Wave Inverter 1000 watt Inverter
Input
Rated Input Voltage:12V
Rated Current:30A
Maximum Efficiency: 90%
Battery Type:Lead acid/ Lithium battery
AC Output
Rated Power: 1000
AC Voltage: 220V
Frequency: 50Hz
Wave Form: PURE SINE WAVE
Input Protection
Battery Low Voltage Alarm: 10.5V +-0.5V
Battery Low Voltage Recovery: 11.0V +-0.5V
Battery Low Voltage Shutdown: 10.0V +-0.5V
Battery High Voltage Alarm: 15.0V +-0.5V
Battery High Voltage Alarm Recovery: 14.5V +-0.5V
Battery High Voltage Shutdown: 15.5V +-0.5V
Output Protection
Output Short Circuit protection: After the fault is eliminated, it can be rebooted
Overload protection: 110% < Load < 125%, 1minute shutdown;
125% < Load < 150%, 30s shutdown;
150% < Load, shut down immediately;
Overload Temperature Protection: Heat dissipation temperature > 90degree, over temperature protection
Operating Environment
Operating Temperature: 0-40degree
Humidity: 0-80%
PLEASE NOTE
Below are not cover:
Effects and damages due to loss, theft , fire, water, or a natural disaster.
Failure or damage caused by improper use, carelessness(knocks,dents,crushing, or accidents.
Failure or damage caused by unjustifiable repair or modification.
Whats in the box
1 X 12V 1000W Pure Sine Wave Inverter PS-Series
1 X Manual Instruction
