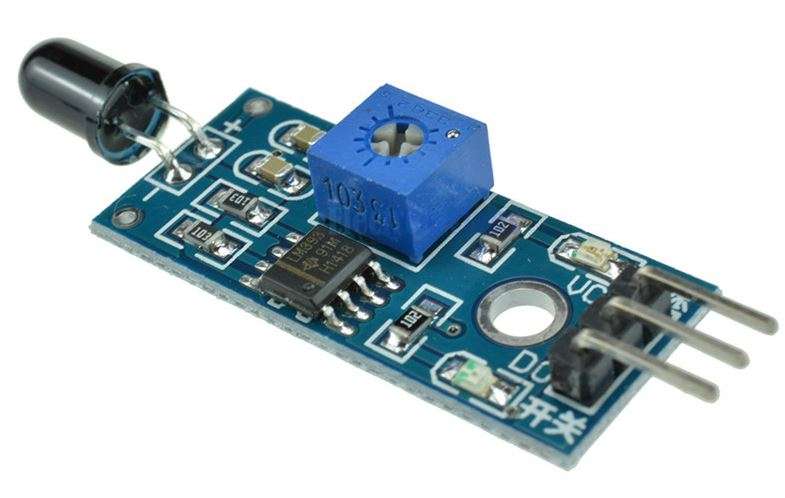

Flame Detection Sensor Module - 0760nm-1100nm

This is the popular Flame Detection Sensor Module - 0760nm-1100nm.

Product Features

It can detect the flame or the wavelength at 760 nm to 1100 nm range of the light source
The test flame lighters distance of 80cm, the larger the flame, the greater the distance test
The detection angle of 60 degrees, the flame spectrum particularly sensitive
Sensitivity adjustable (shown in blue digital potentiometer adjustment)
The comparator output signal clean waveform is good, driving ability, than 15mA
With a precision potentiometer adjustable sensitivity adjustment
Operating Voltage 3.3V-5V
The output in the form: DO digital switching outputs (0 and 1) and AO analog voltage output
A fixed bolt holes for easy installation
Small plates PCB size: 3.2cmx1.4cm
Using a wide voltage LM393 comparator

Please note: Locally Stocked! Available for Immediate Shipping!
