Flex Sensor 2.2 Inch Bend Flex Sensor for Robotic Hand Electronic Gloves

20 available / new

R592.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3526

93.42 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643379492

Description:

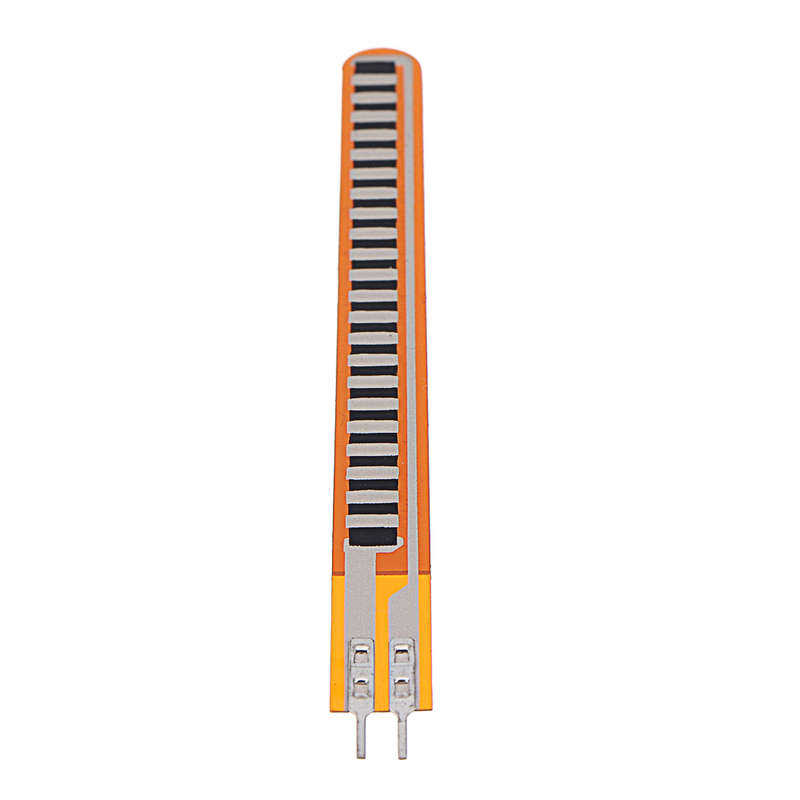

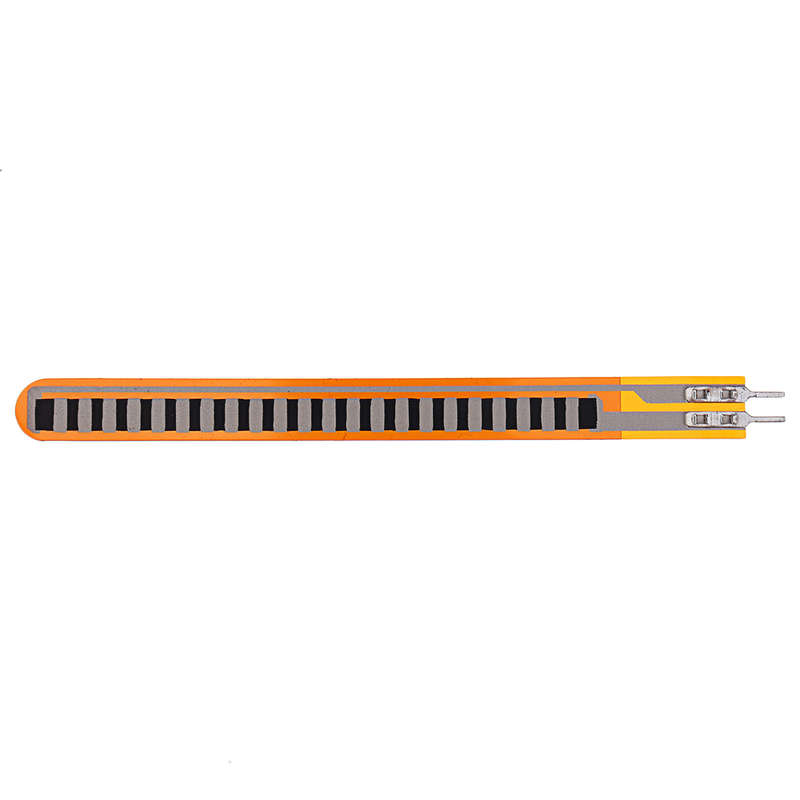

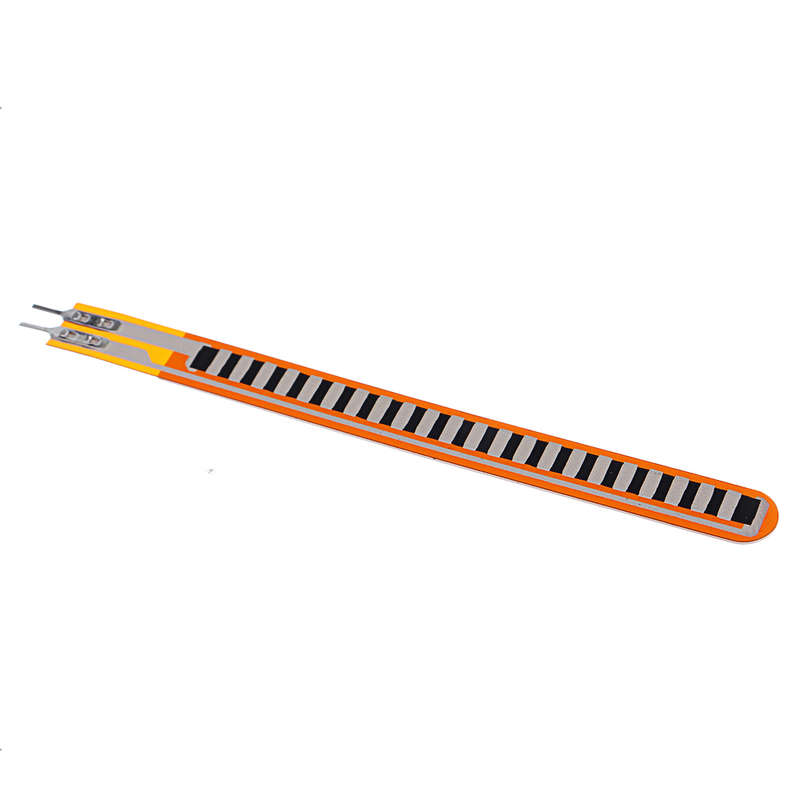

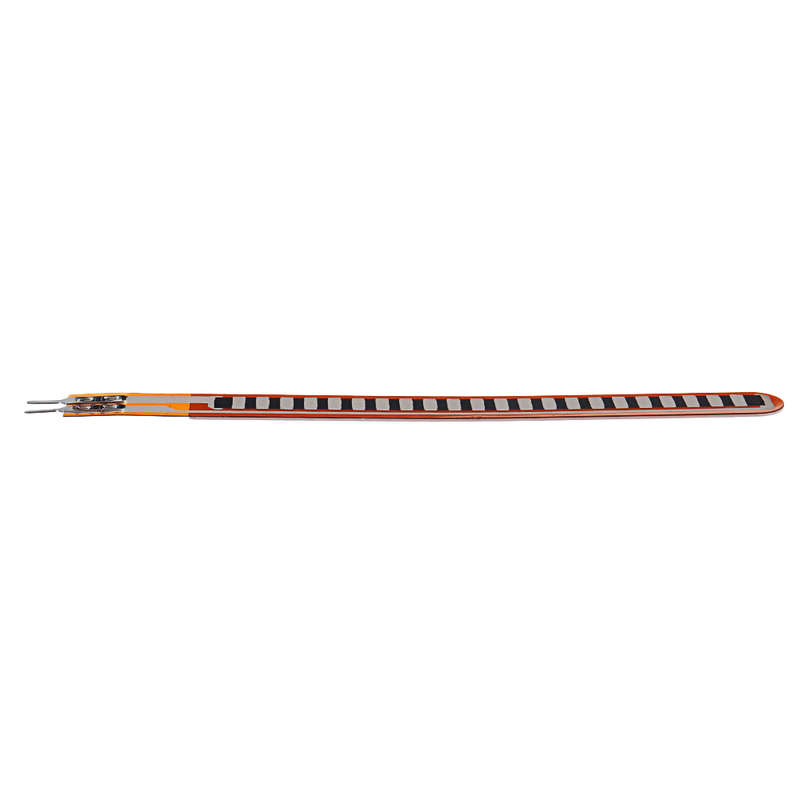

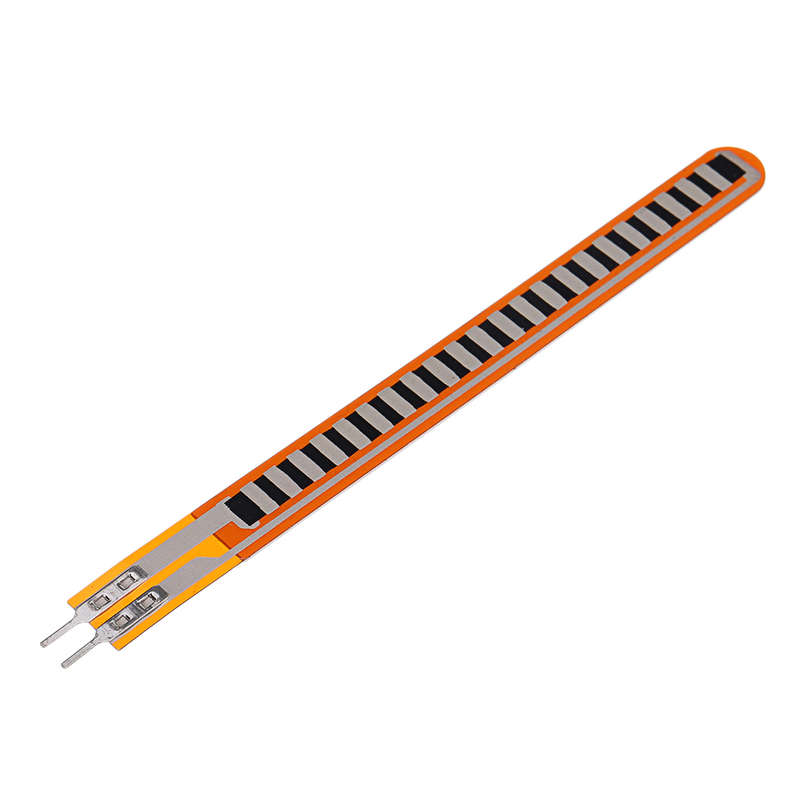

2.2 Bending sensor. The degree of bending of the sensor can be converted into a change in resistance value. The larger the bending,
the higher the resistance. This sensor can be used to make energy gloves.

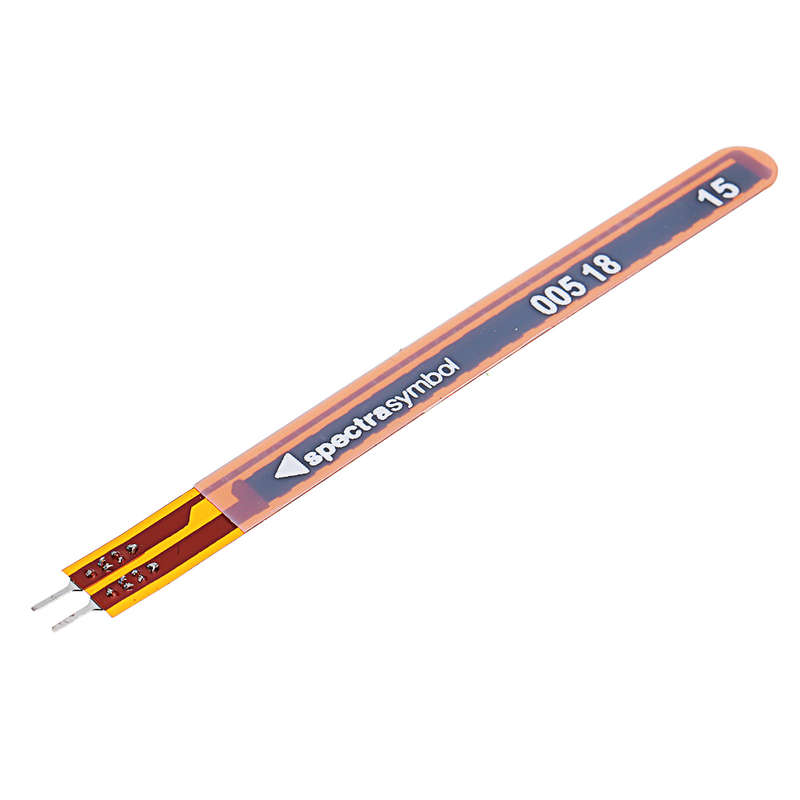

Note: Bending direction: The side with the word is the inner side when bent. Avoid bending the end pin portion (ie, the non-bending
sensing portion) during use, otherwise it is likely to cause damage.

Technical specifications:

Straight resistance: 25K ohms
Resistance tolerance: &pm;30%
Bending resistance change: 60KNI 10K ohm
Rated power: 0.5 watt
Peak power: 1 watt
Bending life: >1 million times
Working temperature: -35C +80C

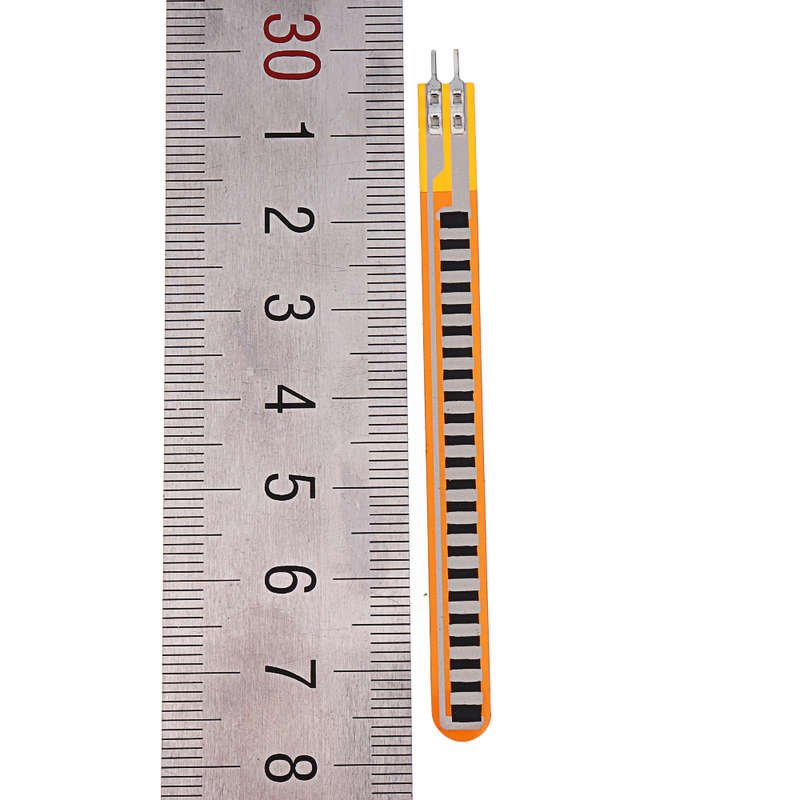

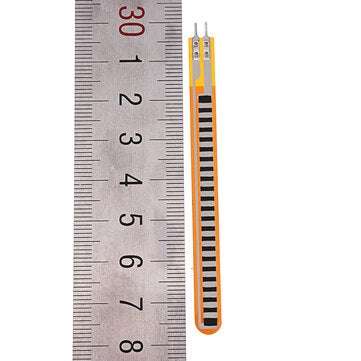

Length x width: 73.66x6.35mm
Interface type: 2-Pin metal pin (pitch 0.1)

Package included:

1 x 2.2 Inch Bend Flex Sensor
