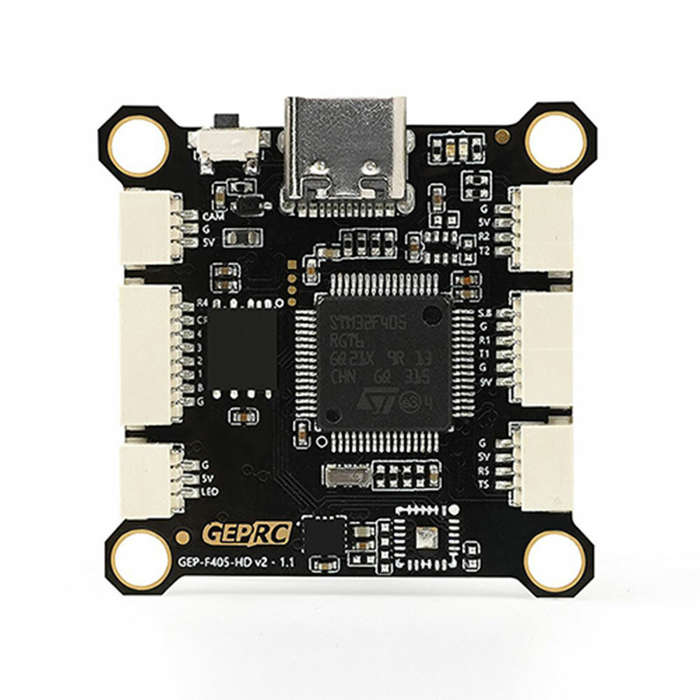

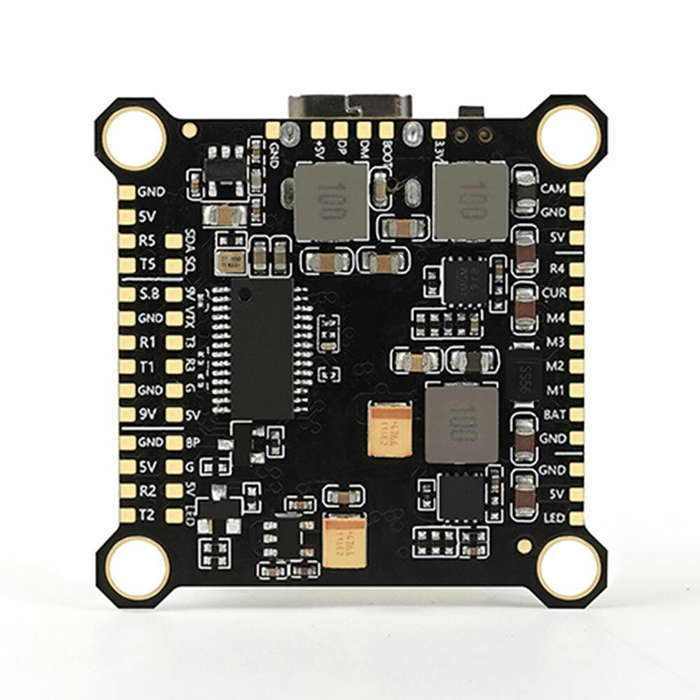

Specifications:
Brand: Geprc
Model: F405 HD V2
MCUSTM32F405
IMUICM42688-P(SPI)
Air Unit ConnectionDirect plugging into DJI Air Unit
Black Box16M onboard
USB InterfaceType-C
OSDBetaFlight OSD w/ AT7456E chip
BEC5V@3A,[email protected] dual BEC
Firmware TargetGEPRCF405
Size36.8×36.8mm, hole 30.5×30.5mm4mm hole becomes 3mm after using a silicone shock-absorbing circle.
Input Voltage3-6S LiPo
UART6
Power FilterIntegrated LC filter
Weight7.7g
Features:
-Use mainstream STM32F405 chip
-Equipped with the latest 42688-P gyroscope
-16M black box storage
-Integrated LC filter
-Upgrade type-C USB interface
-Directly plugged into the DJI Air Unit
-Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
-9V 2.5A + 5V 3A dual independent BEC
Includes:
1 x Flight Controll
