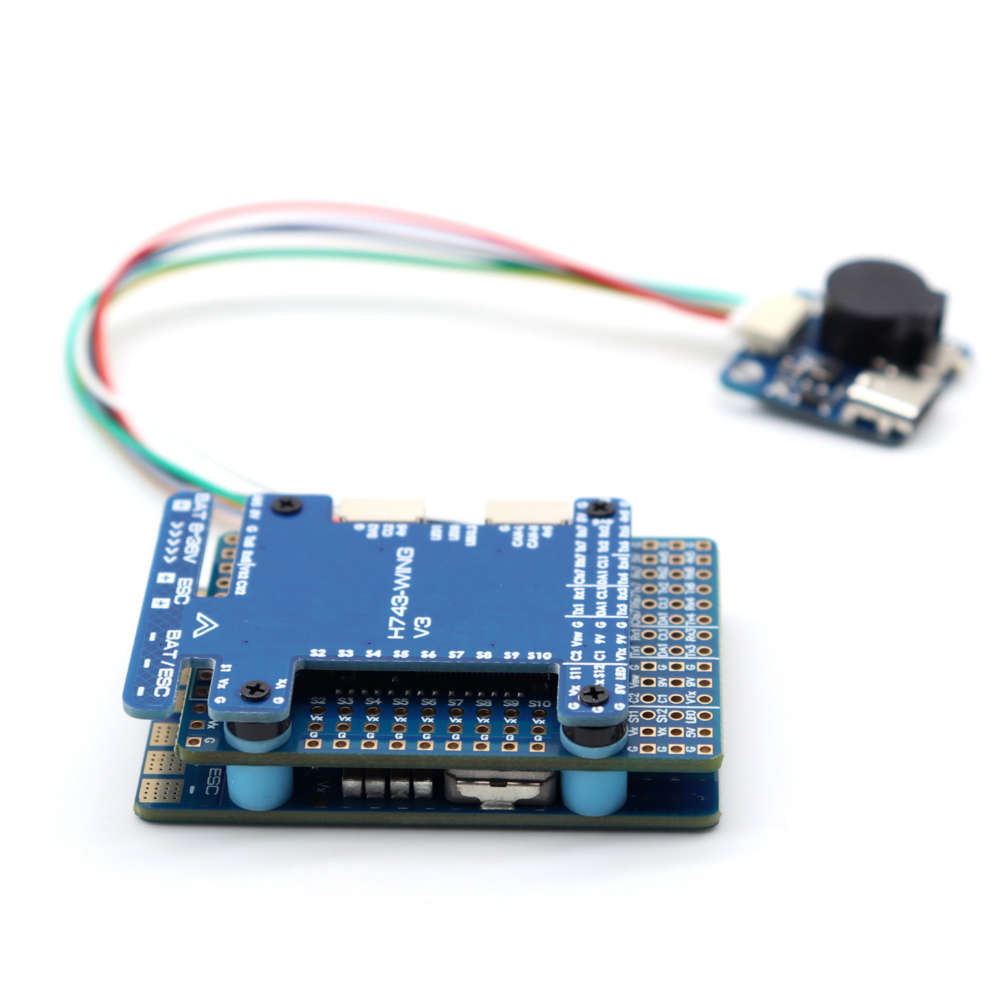

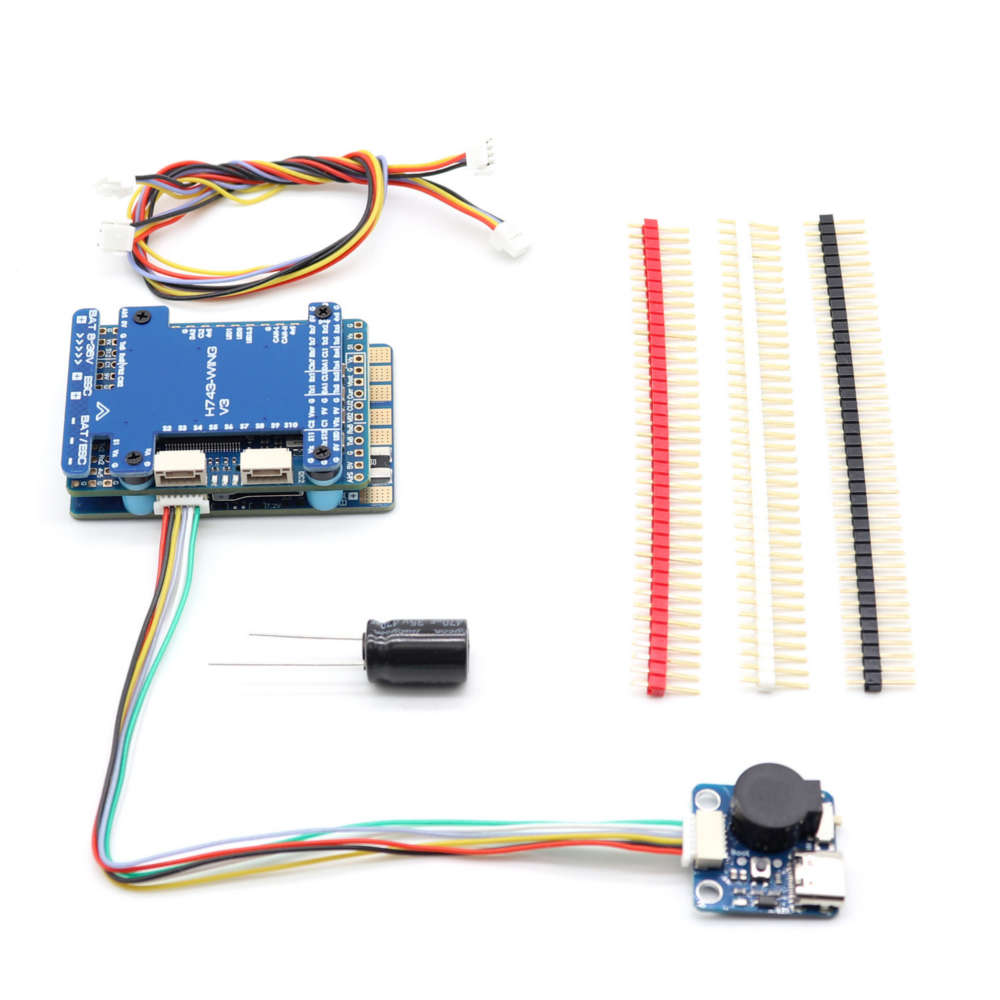

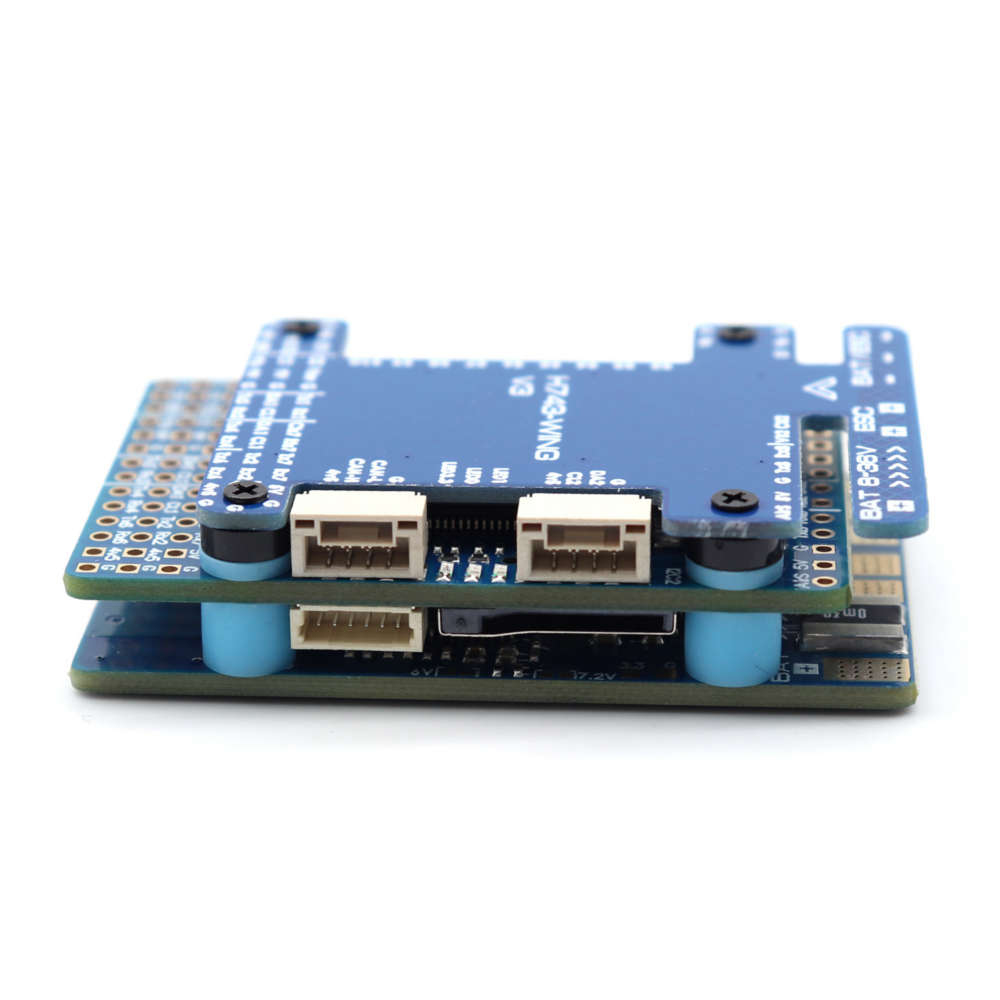

Flight Controller - H743 WING V3 Dual Gyro Flight Controller Supports Dual Motor and Dual Cameras fo Flight Controller - H743 WING V3 Dual Gyro Flight Controller Supports Dual Motor and Dual Cameras fo Flight Controller - H743 WING V3 Dual Gyro Flight Controller Supports Dual Motor and Dual Cameras fo Flight Controller - H743 WING V3 Dual Gyro Flight Controller Supports Dual Motor and Dual Cameras fo
Flight Controller - H743 WING V3 Dual Gyro Flight Controller Supports Dual Motor and Dual Cameras fo Flight Controller - H743 WING V3 Dual Gyro Flight Controller Supports Dual Motor and Dual Cameras fo Flight Controller - H743 WING V3 Dual Gyro Flight Controller Supports Dual Motor and Dual Cameras fo Flight Controller - H743 WING V3 Dual Gyro Flight Controller Supports Dual Motor and Dual Cameras fo

Flight Controller - H743 WING V3 Dual Gyro Flight Controller Supports Dual Motor and Dual Cameras fo

New 1 available
Indicative market price: R4,104.55
Only 1 left – grab it before it’s gone!
R2,662.91
35% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
There are various locker and counter collection points across South Africa.
View locations
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
The World OnLine10362
95.65 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2039079-POA11790549
Bob Shop ID
672532786






Specification:

FC Specifications

Model:H743 WING V3 Flight Controller

MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash

IMU: MPU6000 (SPI1) & ICM42605 (SPI4)

Baro: Infineon DPS310 (I2C2)

OSD: AT7456E (SPI2)

Blackbox: MicroSD card slot (SDIO)

7x Uarts (1,2,3,4,6,7,8) with built-in inversion.

13x PWM outputs(including "LED" pad):

2x I2C

1x CAN

6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)

3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)

1x SPI3

- USB/Beep Extender with Type-C(USB2.0)

- Dual Camera Inputs switch

- 5V/9V(12V) for Camera/VTX power switch

- High-precision Current Sense (90A continuous, 220A peak)

- Static power 160mA@5V

Battery Voltage Sensor: 1K:10K (Scale 1100 in INAV,  BATT_VOLT_MULT 11.0 in ArduPilot)

ADC VB2 voltage divider: 1K:20K

ADC AirSpeed voltage divider: 20K:20K

FC Firmware

ArduPilot(ChiBiOS): MATEKH743

INAV: MATEKH743

PDB

Input voltage range: 8~36V (3~8S LiPo) w/TVS protection

2x ESC power pads

Current Senor: 220A,  3.3V ADC  (Scale 150 in INAV,  66.7 A/V in ArduPilot)

Sense resistor: 90A continuous, 220A peak

BEC 5V output

Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed

Output 5.15  +/- 0.1V DC

Continuous current 2 Amps,  3A Peak

BEC 9V /12V output

Designed for Video Transmitter, Camera, Gimbal ect.

Continuous current 2 Amps,  3A Peak

12V option with Jumper pad

BEC Vx output
