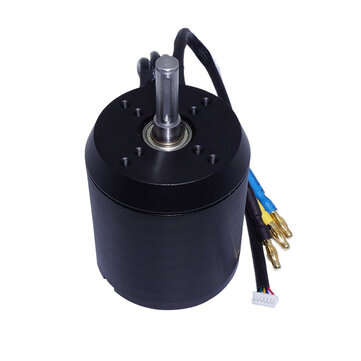

Flipsky 6374 190KV 3250W BLDC Belt Motor for Electric Skateboard RC Car Vehicles Parts without Pulle

Description: Item Brand:Flipsky Item Name:6374 190KV 3250W BLDC belt motor Material:Metal Color:Black Usage:Electric skateboard/off-road rc car and so on

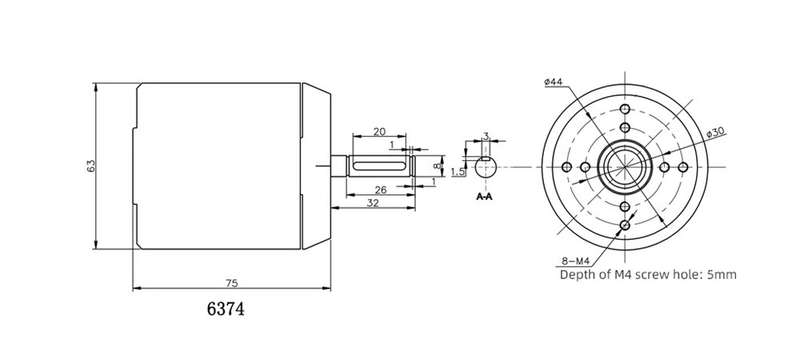

Spec: Max Power: 3250 Watts Max Current: 85 Amps Max Volts: 12S? Max Torque: 8Nm Motor Resistance: 0.05Ohm Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A) Weight: 1.9 lb / 0.86 kg The motor length:74mm The motor diameter: 63mm SHAFT: Diameter 8mm, 32mm length, 3x3x20mm keyway slot. Motor Wire: 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Male. Wire configuration: Blue = A Black = B Yellow = C Stator: 0.2mm thickness lamination japan steel Magnet: N42SH high temp curve magnet BLDC Motor The number of pole: 14

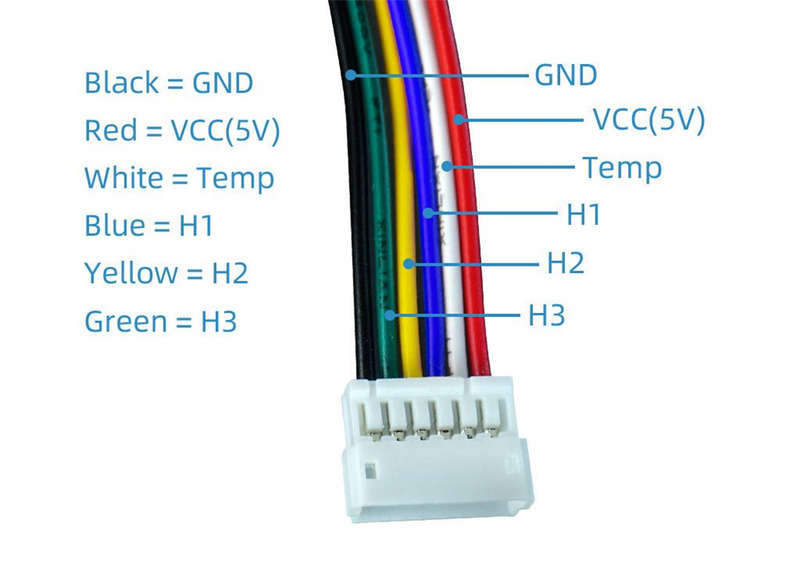

Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch
Internal PCB with 120 Degree Hall Effect Sensors Motor can be used with or without a sensor. Sensorless operation is most common VESC Sensor Wires required to use with VESC
Product Features: Stator: Lamination Japan steel 12awg high strand silicone wire with 4.0mm gold bullet connectors. Both support sensor and sensorless mode

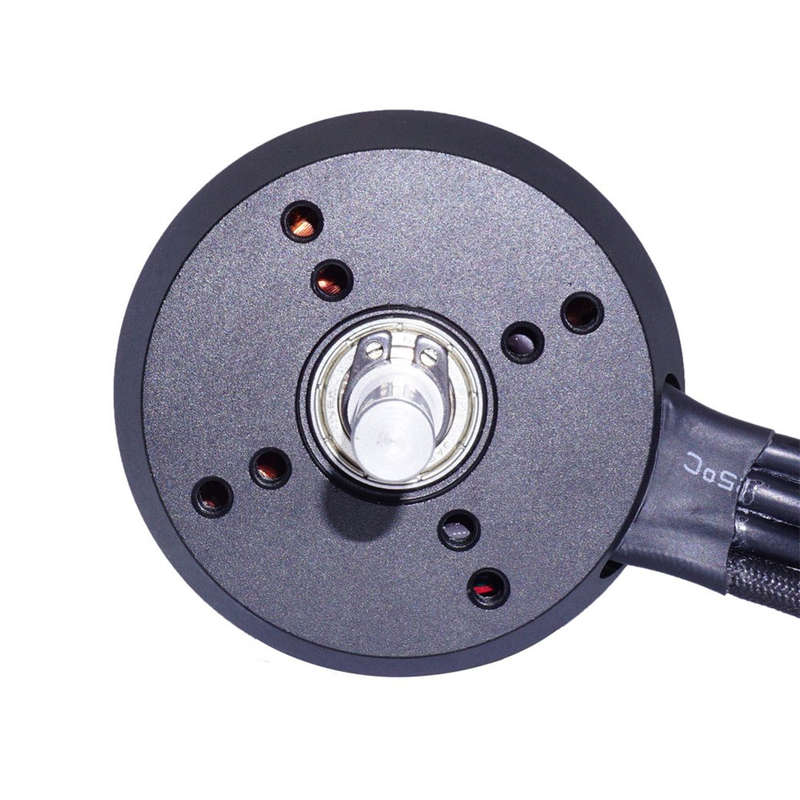

Reference Information: The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts. ?Screws to mount the motor are not included with the motor. The key for keyawy is included with motors for shipping
Package Included:

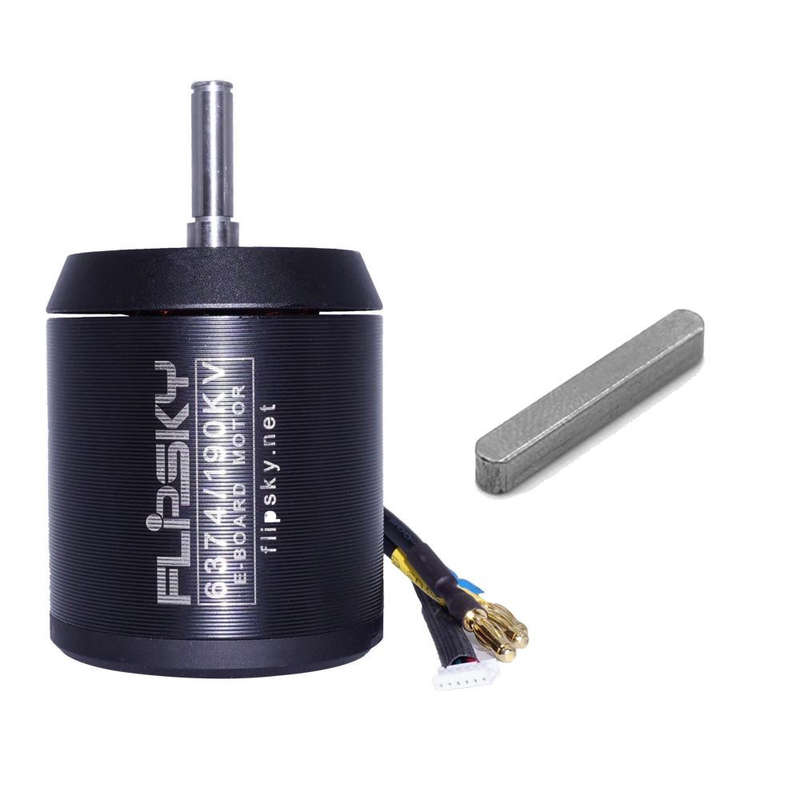

1X 6374 190KV 3250W Motor 1X Motor Keyway
