Description: Item Brand:Flipsky
Item Name:?Anti spark Switch Smart Enhanced 200A
Material:Metal and plastic
Color:As the picture shown
Product Weight:About 50g
Fit For:Electric Skateboard /Ebike/ Scooter/Robots
Spec: Hardware:?V2.2
Max?voltage:?13S?(60V)
Continuous?Current:?150A?,?Max?Current:?200A
Mosfets:?NVMFS5C628NLs

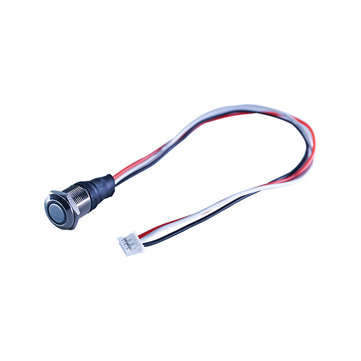

LED?button?diameter:12mm,?cable?length:?250mm
PCB?thickness:4?layers*9oz?copper=36oz?copper
PCB?size:?40mm*32m
Enhanced?Features: High?Side?Switching?->?Much?safer?to?use?with?multiple?ESCs?and?other?devices.
In-rush?current?limiting.
RC?delay?network?restricts?inrush?current?to?safe?levels.
dV/dt?is?~100V/s?(This?is?considered?VERY?slow?for?power?electronics.?Fast?would?be?50,000,000V/s).?At?6,000?uF?output?capacitance,?this?is?an?inrush?current?of?600mA.
Smart?Power?on/off
Roll-to-start.?Has?12?second?blanking?timer?after?turn?off.?Can?still?be?turned?on?by?switch?during?this?period.
Auto-turn-off.?Will?turn?off?automatically?after?20?minutes.?The?output?voltage?must?vary?by?at?least?500mV?within?any?three?second?interval?to?reset?the?turn-off?timer.
Support?momentary?push?button.?Hold?for?0.3s?to?turn?on,?1s?to?turn?off.?Holding?it?down?will?cycle?it?on?then?off.
High?power,?150A?Continuous.
Very?low?idle?power?draw,?~300uA,?will?last?months?on?battery.
?

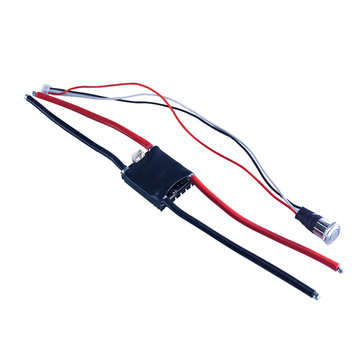

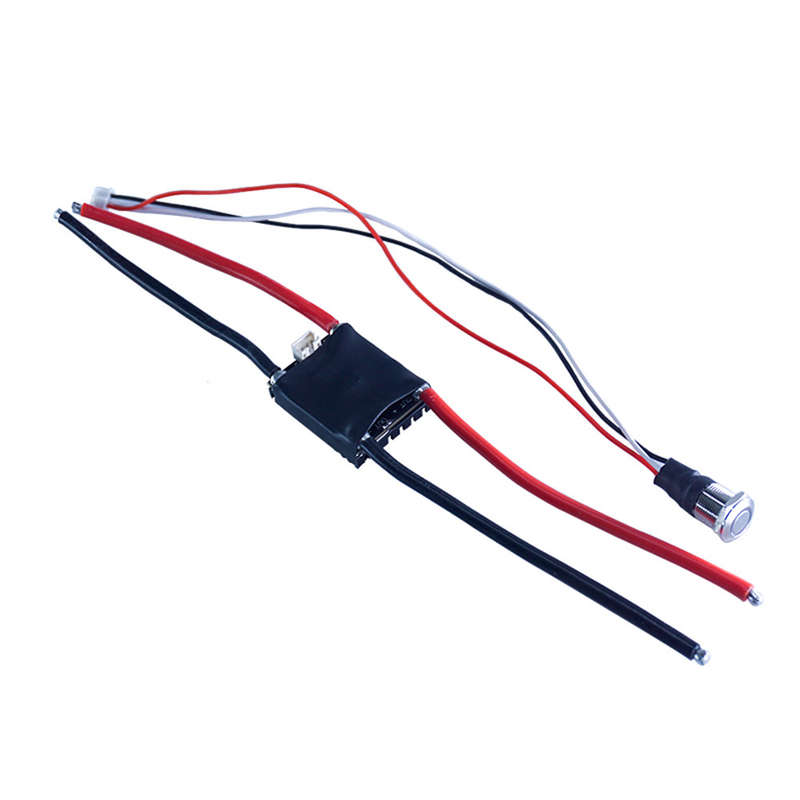

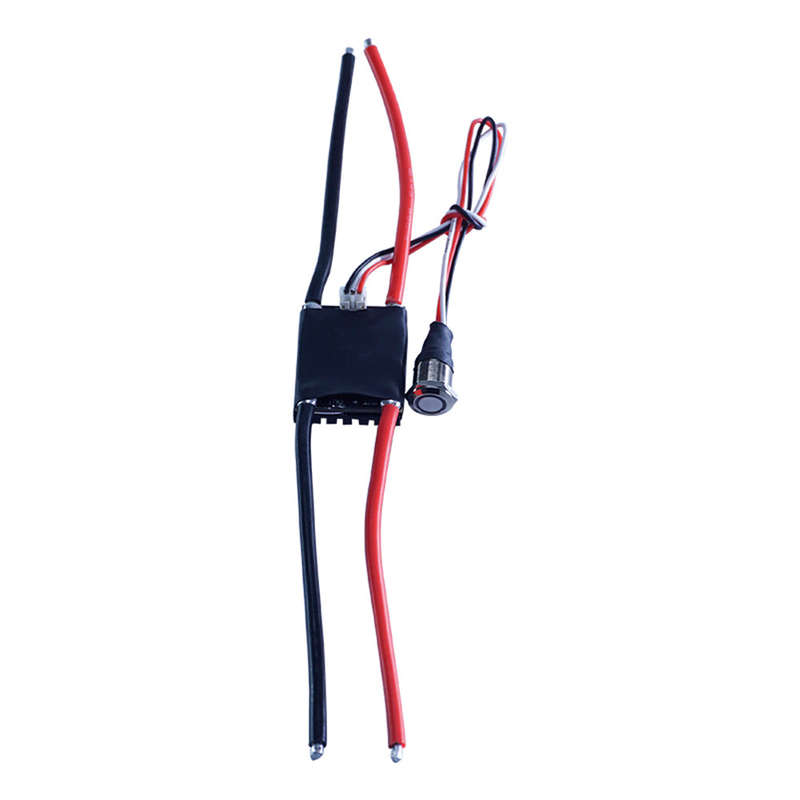

Package?included: 1X?Anti spark Switch 200A
1.Preventing a small spark may cause explosions in some spark-sensitive areas. 2. Add copper bars for better heat dissipation and over-current flow. 3.Anodized aluminum Heatsink with lots of notches for better heat dissipation. 4.Add silicon glue to fix the LED button cable with the heat shrink.
Warnings: Do not peel off the heat shrink.Therea??s no screw to lock the heatsink and PCBA. Only the heat-transfer silicon pad is naturally sticky to heatsink and PCBA. No short circuit protection, DO NOT short circuit output! No reverse polarity protection. DO NOT plug in backwards. Recommended to keep output capacitance under 6,000 uF. Proper operation cannot be guaranteed at higher capacitances. Do not Hot-Swap. Try to make sure everything is off before connecting and removing. If need be, unplug from battery first, wait for ESCs to turn off, then unplug ESCs. Do the reverse for plugging in, plug in ESCs first before plugging the switch into the battery. Engineers have thoroughly tested prototypes; however, this is still a new design and a first production run, please exercise extreme caution (as one would normally do with any electric vehicle) when using this device. Do not attempt to reprogram the MCU unless otherwise advised. Doing so will void any warranty and also put the switch at great risk of failure.
