Flipsky BLDC Belt Motor Battle Hardened 6354 140KV 2450W for Electric Skateboard (NO.: 004)

SELECTED OPTION:
NO.: 004

Specification:

• Max Power:?2450 Watts
• Max Current: 65 Amps
• Max Volts: 12S?
• Max Torque:?7Nm
• Motor Resistance: 0.053Ohm?
• Recommend ESC: 3-12S 50A (?or?)
• Weight: 1.23 lb /?0.56?kg

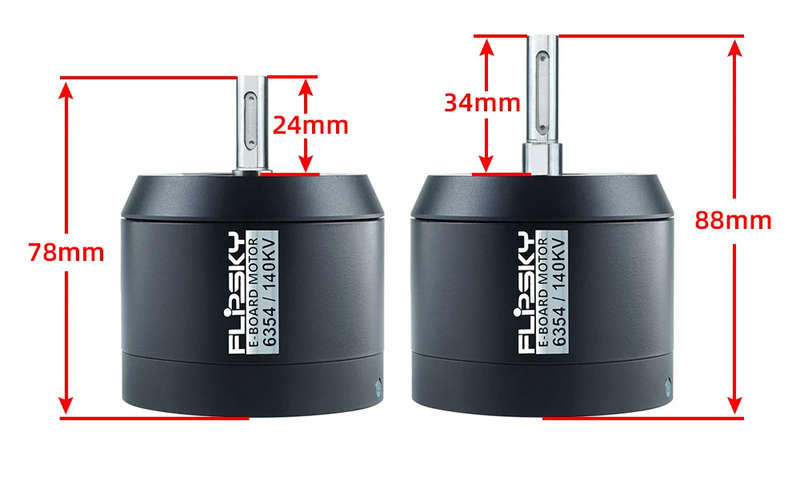

• The motor length:54mm
• The motor diameter: 63mm

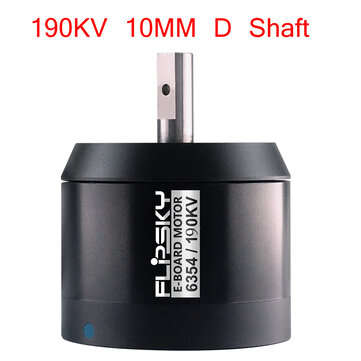

• Shaft diameter:?10mm D Shaft ,24mm length/8mm Round-short shaft,24mm?length/8mm Round-long shaft,30mm?length

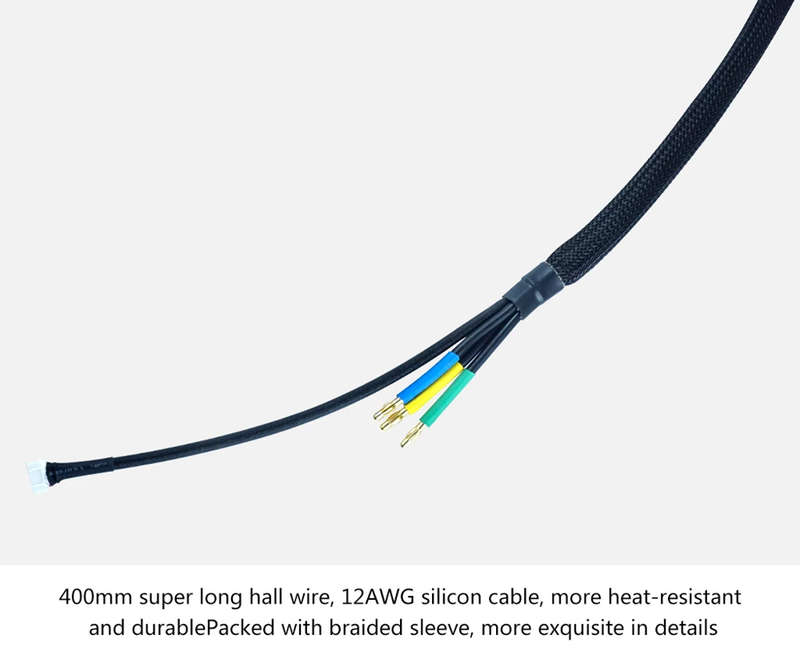

• Motor Wire: 320mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Male.
  • Wire configuration:
    • Blue = A
    • Black = B
    • Yellow = C?
• BLDC Motor
• The number of pole: 14

Reference Information:

• The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.
• Screws to mount the motor are not included with the motor.

Package included:

1x motor
