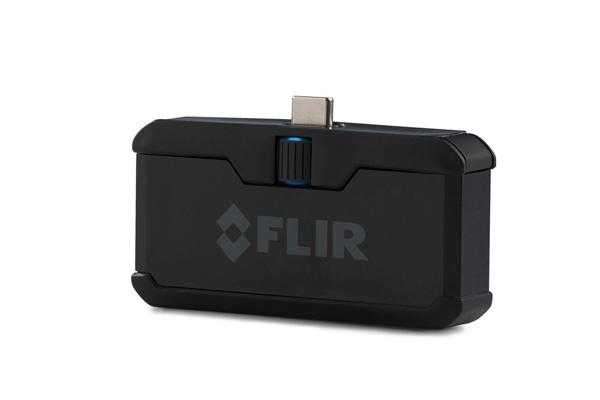

FLIR ONE PRO
The FLIR ONE Pro gives you the power to find invisible problems faster than ever. Combining a higher-resolution thermal sensor able to measure temperatures up to 400 C (752 F)with powerful measurement tools and report generation capability, the FLIR ONE Pro will work as hard as you do. Its revolutionary VividIR image processing lets you see more details and provide your customers with proof that you solved their problem right the first time. The updated design includes the revolutionary OneFit adjustable connector to fit your phone, without taking the phone out of its compatible protective case. An improved FLIR ONE app lets you measure multiple temperatures or regions of interest at once and stream to your smartwatch for remote viewing. Whether youre inspecting electrical panels, looking for HVAC problems, or finding water damage, the new FLIR ONE Pro is a tool no serious professional should be without.
VividIR IMAGE PROCESSING
See It & Solve It - Sharpest Mobile Thermal Imaging Performance Lets You Detect Problems with Precision and Accuracy, then Document Your Fix for the Customer
Most advanced image resolution enhancement detects the thermal details you need to find problems fast
With 160 x 120 thermal resolution, FLIR ONE Pro uses FLIRs highest resolution micro thermal camera and can measure temperatures as high as 400 C (752 F)
FLIR MSX® embosses visible edges from the 1440 x 1080 HD camera onto thermal imagery to create a sharper, easier to understand picture
OneFit CONNECTOR
Leave Your Case On - Adjustable Connector Means You Dont Have to Choose Between Thermal Vision and Safeguarding Your Device when Using Compatible Protective Cases
Adjust length of USB-C and Lightning connector up to an additional 4 mm
Reversible connectors for Android and iOS
Secure the FLIR ONE to your mobile device while keeping your phone safe
HARD-WORKING APP
Work Like a Pro - Work-Based Features Include Advanced Capabilities for More Professional Problem Solving and Functionality
Use multiple real-time spot meters and regions of interest
Access real-time thermal tips and tricks in the FLIR ONE app followed by professional reporting through FLIR Tools
See around corners and in awkward spaces by connecting to your Apple Watch or Android smartwatch
Find datasheet here
| Model Number | FLIR ONE Pro |
|---|
| General |
|---|
| Certifications | MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233 |
| Operating temperature | 0 C 35 C (32F 95F) , battery charging 0 C 30 C (32F 86F) |
| Non-operating temperature | -20 C 60 C (-4F 140F) |
| Size | 68mm W x34mm H x14mm D (2.7in x 1.3in x .6in) |
| Weight | 36.5g |
| Mechanical shock | Drop from 1.8m |
| Video |
|---|
| Thermal and visual cameras with MSX |
| Thermal sensor | Pixel size 12m, 8 14m spectral range |
| Thermal resolution | 160x120 |
| Visual resolution | 1440x1080 |
| HFOV / VFOV | 55 1 / 43 1 |
| Frame rate | 8.7Hz |
| Focus | Fixed 15cm Infinity |
| Radiometry |
|---|
| Scene dynamic range | -20C 400C, -4F - 752F |
| Accuracy | 3C or 5%, typical
Percent of the difference between ambient and scene temperature. Applicable 60s after start-up when the unit is within 15 C 35 C and the scene is within 5 C 120 C. |
| Thermal sensitivity (MRDT) | 150mK |
| Emissivity settings | Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
Reflected background temperature is 22C |
| Shutter | Automatic/Manual |
| Power |
|---|
| Battery life | Approximately 1h |
| Battery charge time | 40min |
| Interfaces |
|---|
| Video | Male Lightning (iOS), Male USB-C (Android) |
| Charging | Female USB-C (5V/1A) |
| App |
|---|
| Video and still image display/capture | Saved as 1440x1080 |
| File formats | Still images radiometric jpeg
Video MPEG-4 (file format MOV (iOS), MP4 (Android)) |
| Capture modes | Video, Still image, Time lapse |
| Palettes | Gray (white hot), Hottest, Coldest, Iron, Rainbow, Contrast, Arctic, Lava and Wheel. |
| Spot meter | Off / C / F. Resolution 0.1C / 0.1F |
| Adjustable MSX distance | 0.3m Infinity |
| Battery charge monitor | 0 100% |
